FMXMPS108IGD-003.200000M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FMXMPS108IGD-003.200000M

FMXMPS108IGD-003.200000M: DescriptionParallel - Fundamental Quartz Crystal, 3.2MHz Nom, ROHS COMPLIANT, J-LEADED, PLASTIC, HC-49/US, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size104KB，1 Pages; ManufacturerFrequency Management International; Environmental Compliance

Download Datasheet Parametric View All

FMXMPS108IGD-003.200000M Overview

Parallel - Fundamental Quartz Crystal, 3.2MHz Nom, ROHS COMPLIANT, J-LEADED, PLASTIC, HC-49/US, SMD, 4 PIN

FMXMPS108IGD-003.200000M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1314933947
package instruction	ROHS COMPLIANT, J-LEADED, PLASTIC, HC-49/US, SMD, 4 PIN
Reach Compliance Code	compliant
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.0025%
frequency tolerance	40 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	3.2 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	L12.0XB4.7XH4.9 (mm)/L0.472XB0.185XH0.193 (inch)
Series resistance	200 Ω
surface mount	YES

Preview

Download Datasheet

View All

FMXMPS

SERIES

Microprocessor Crystals

Low Profile

Low Cost / Fast Delivery

Compatible Footprint to

Plastic J-Lead Packages

J-LEAD Plastic SMD

Compatible HC-49/US

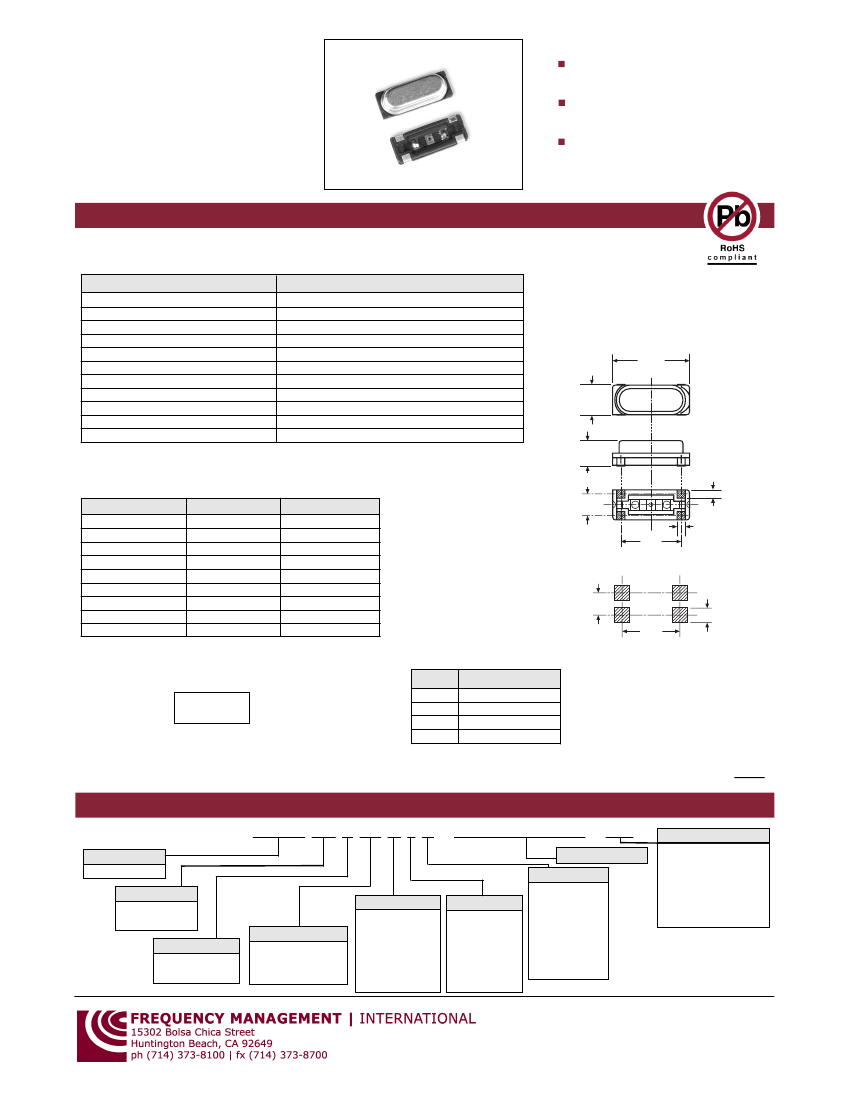

SPECIFICATIONS

08 - Issue 3 - 041508

Parameter

Frequency Range

Operation Mode

Load Capacitance (CL)

Frequency Tolerance

Temperature Tolerance

Operating Temperature

Storage Temperature

Equivalent Series Resistance (ESR)

Shunt Capacitance (C0)

Drive Level

Aging @ 25°C

All specifications subject to change without notice.

Specification

3.2 - 90 MHz

See Operation Mode and ESR Table

18 pF Std., 8 - 60 pF and Series available

±30 ppm @ 25°C Std. (See Cal. Tol. for Options)

±50 ppm Std. (See Temp. Tol. for Options)

0 to +70°C Std. (See Temp. Range for Options)

-55 to +125°C

See Operation Mode and ESR Table

7 pF max.

50 uW typical, 1 mW max.

±5 ppm per year max.

HC-49/US

With K-406 Base Adapter

For J-Lead Plastic SMD

Compatibility

0.472

(12.00)

MAX.

0.185

(4.70)

MAX.

0.19

(4.9)

MAX.

0.049

(1.25) 4X

OPERATION MODE AND ESR TABLE

Frequency (MHz)

3.2 - 3.4

3.5 - 4.0

4.1 - 4.7

4.8 - 5.7

5.8 - 11.9

12.0 - 14.2

14.3 - 27.0

27.1 - 74.9

75.0 - 90.0

Mode

Fundamental

3rd Overtone

Max. ESR (Ohms)

200

150

120

100

0.134

(3.40)

0.049

(1.25)

0.374

(9.50)

Recommended Land Pattern

0.087

(2.2) 4X

0.138

(3.5)

0.354

(9.0)

PIN FUNCTION TABLE

STANDARD MARKING

FMI XX.XXX

XX.XXX FREQUENCY in MHz

Function

Crystal

Ground

Crystal

Dimensions: Inches

(mm)

NOTE: Standard Specifications for product indicated in

color

PART DESCRIPTION SYSTEM

MARKING: See Page 52, Format A

FMXM PS 1 18 H J A - XXX.XXXXXXM - CM

Options

Product Family

MicroP Crystal

Package

J-Lead Plastic

compatible

Mode

1 - Fundamental

3 - 3rd Overtone

Load Cap. (CL)

18 - Standard (pF)

00 - Series

## - Custom (pF)

Cal. Tol. @ 25°C

G ± 25 ppm

H ± 30 ppm

I ± 40 ppm

J ± 50 ppm

K ± 100 ppm

X Custom

Temp. Tol.

G ±25ppm

H ±30ppm

I ±40ppm

J ±50ppm

K ±100ppm

X Custom

Frequency (MHz)

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

J 0 to 50 °C

X Custom

TR - Tape & Reel

PD - Parameter Data

TD - Temp. Data

TG - Temp. Grading

CM - Custom Mark

BLANK - None Req’d.

1-800-800-XTAL

[9825]

www.fmi-inc.com
