194308: DescriptionD Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal, #4-40, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric View All

194308 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	194308	-	-	View	Buy Now

194308 Overview

D Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal, #4-40, Receptacle, LEAD FREE

194308 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4004429856
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.354 inch
body length	1.547 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal pitch	2.7432 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 36 St.

+0,3

0,7

2

max. 138

Aussparung in Arbeit

5 x 18 = 90

Pin 1

tray packaging

packaging unit 36 pcs

17,5

5,8

18

9

1,4

1,5

46,2

0,6

2,8

39,3

-0,4

+0,2

pcb

Leiterplatte

5 x 46,2 = 231

max. 325

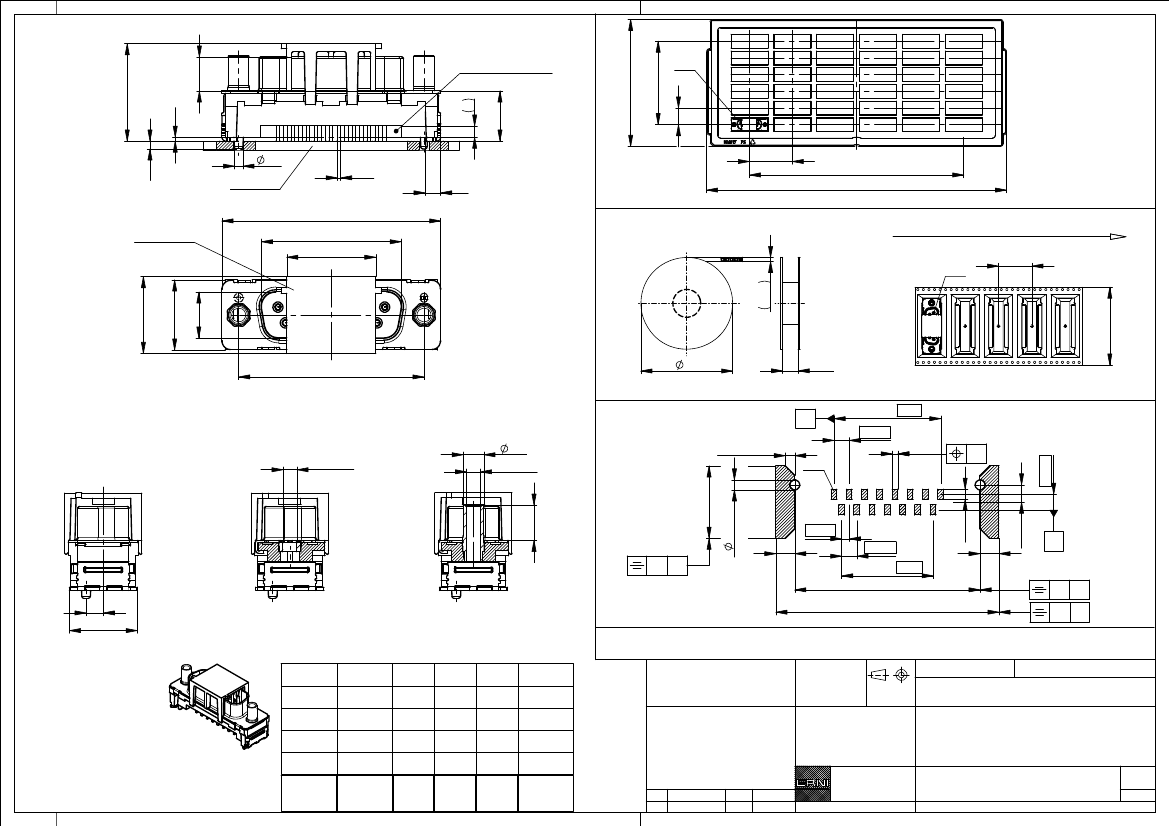

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Abspulrichtung -

Reel

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

24

hood

Ansaughaube

25,1

16

+0,2

off Direction

Pin 1

12,6

±0,3

+0,2

1

8

13,8

8,25

21,2

9

15

33,3

±0,1

330

56,5

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

ohne /

without

thread depth max. 7,5 mm

max. Einschraubtiefe 7,5 mm

Gewinde

/ thread

M3

/ #4-40

Mutter /

nut

Bolzen /

bolt

max. Einschraubtiefe 5,5 mm

Layoutvorschlag:

thread depth max. 5,5 mm

3,7

recommended layout:

1,7 x 45° (4x)

A

7 x 2,74 = 19,18

2,74

1

(15x)

0,1

2,84

Gewinde

/ thread

M3

/ #4-40

13

Pin 1

Bohrung

/ hole

1,8

±0,05

1,8

1,37

3,4

2,74

6 x 2,74 = 16,44

33,3

±0,05

3,1

±0,05

6,4

3,4

B

0,1

B

0,1

A

3,1

12,2

40,1

±0,2

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

M 1:1

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

194305

194306

194307

194308

194309

Ident-Nr.

part-no.

tape &reel

194300

194301

194302

194303

194304

Ident.-Nr.

X

#4-40

M3

#4-40

M3

ohne

without

Mutter

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Anschlussbereich verzinnt

terminal area tin plating

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Koplanarität der Anschlüsse

≤

0,1 mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

e

Index

26.09.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 15-SMD-9,0-BA8

TMC-P 15-SMD-9,0-type 8

class: 2

part-no.

tray

thread

Bolzen Bemerkung

www.ERNI.com

Class

bolt

remark

144908

TMCP

56

I

A3
