125G3-H08: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

125G3-H08 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Plug

125G3-H08 Parametric

Parameter Name	Attribute value
Objectid	303795344
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.091 inch
subject depth	0.228 inch
body length	0.47 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Minimum insulation diameter	0.02 inch
Insulation resistance	500000000 Ω
insulator material	NYLON
Manufacturer's serial number	125G3
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	8
Maximum wire diameter	28 AWG
Minimum wire diameter	32 AWG

Preview

Download Datasheet

View All

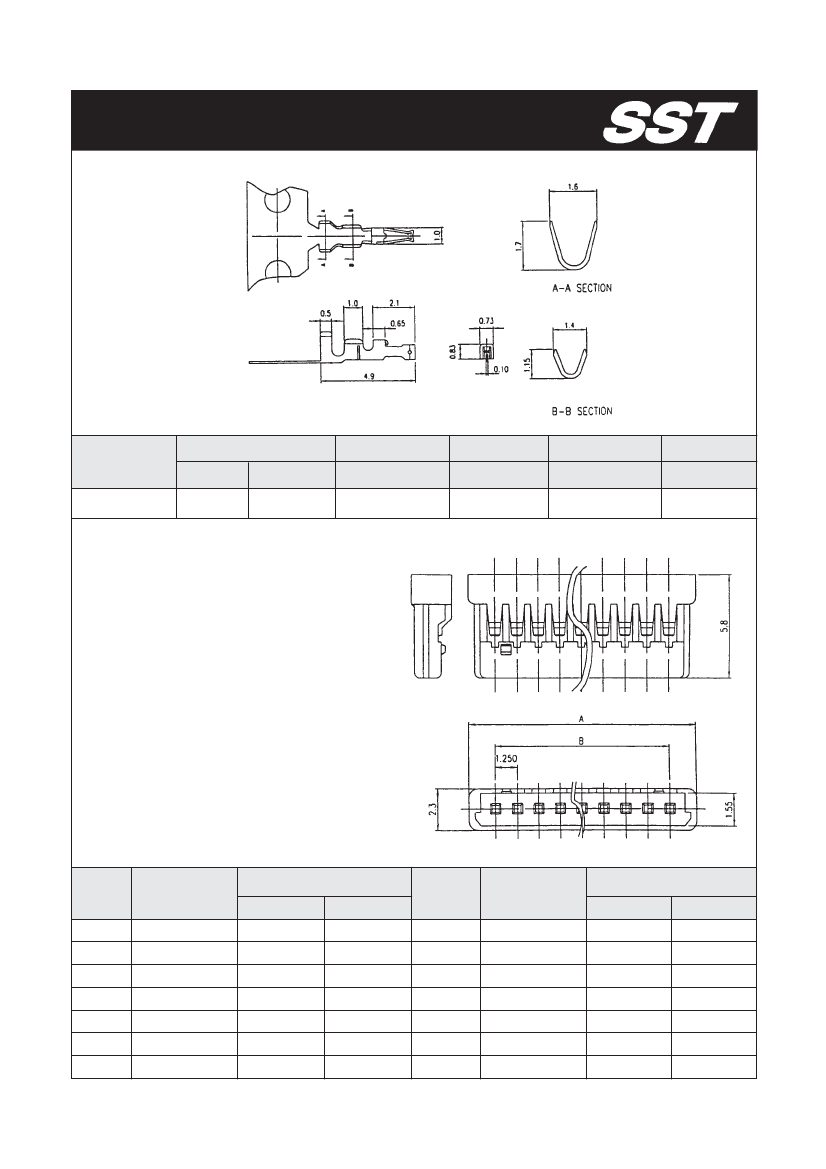

125G3 CONNECTOR SYSTEM

.049” (1.25mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

125G3-TP

28-32

mm

2

0.08-0.032

MATERIAL/

FINISH

PHOS/TIN

THICKNESS

mm

0.15

INSULATION

O.D.(mm)

0.9-0.5

REEL

PCS

10000

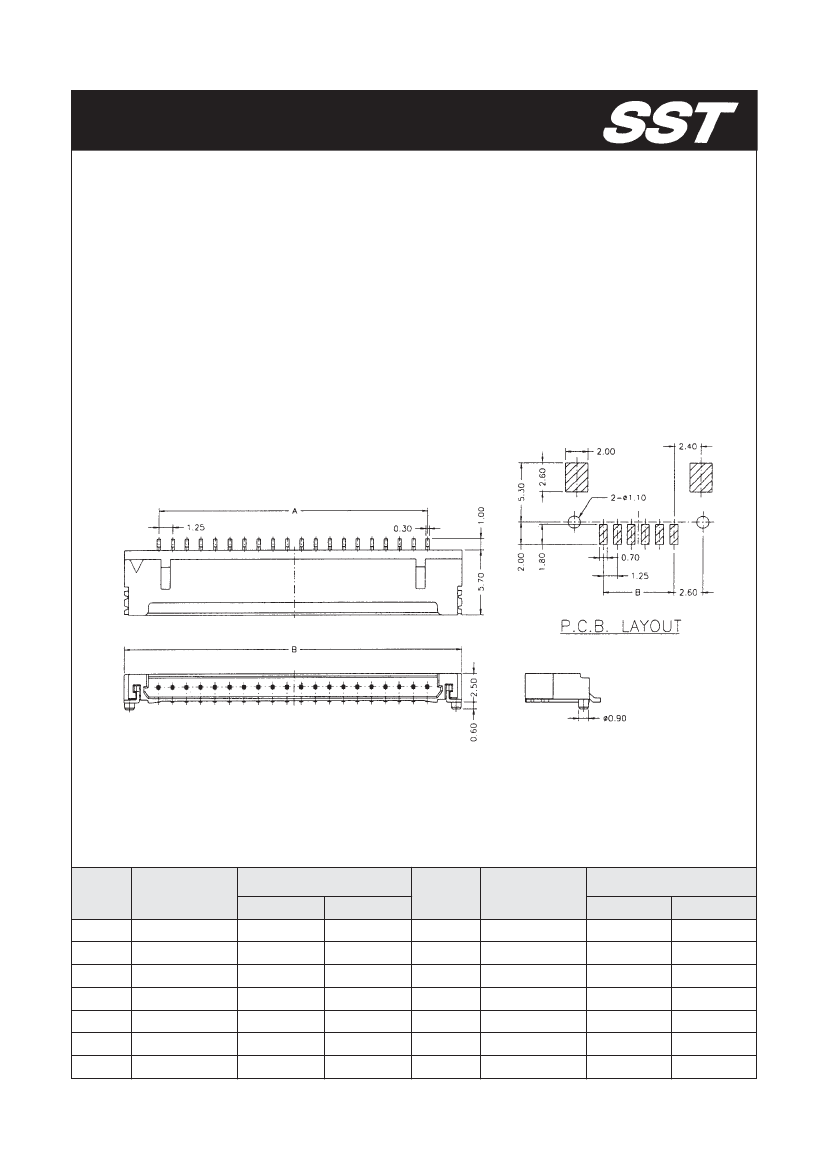

125G3 SERIES HOUSING

MATERIAL : NYLON 66 UL 94V-0

ACCEPT 125G3-TP TERMINAL

MATE WITH 125G3-MR SERIES HEADER

CURRENT RATING : 1A AC,DC

VOLTAGE RATING : 100V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 500M MIN

WITHSTANDING VOLTAGE : 500V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

2

3

4

5

6

7

8

PART NO.

125G3-H02

125G3-H03

125G3-H04

125G3-H05

125G3-H06

125G3-H07

125G3-H08

DIMENSIONS (mm)

POLES

A

4.45

5.70

6.95

8.20

9.45

10.70

11.95

B

1.25

2.50

3.75

5.00

6.25

7.50

8.75

9

10

15

20

25

30

125G3-H09

125G3-H10

125G3-H15

125G3-H20

125G3-H25

125G3-H30

PART NO.

DIMENSIONS (mm)

A

13.20

14.45

20.70

26.95

33.20

39.45

B

10.00

11.25

17.50

23.75

30.00

36.25
