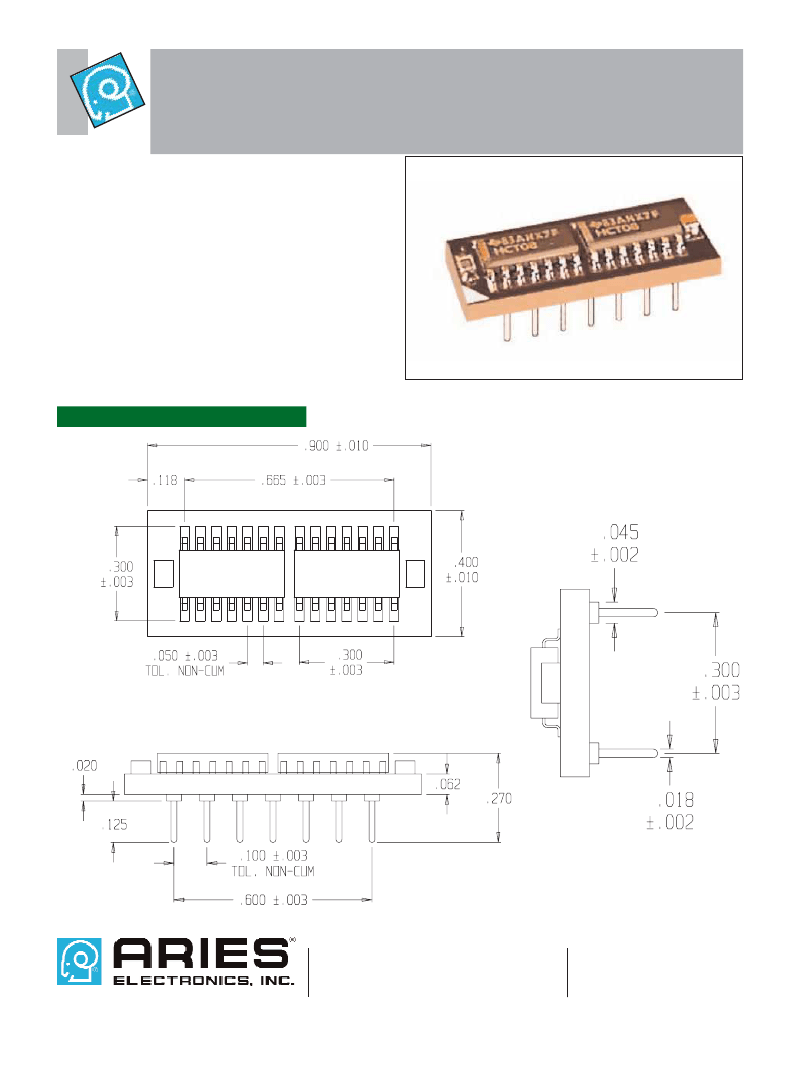

14-4904-18 REPLACEMENT FOR
SN74LS12 DIP 14 PACKAGE
FEATURES:
• A cost effective means of upgrading to SOIC ... without
changing your PCB layout.
• Available on .300 [7.62] centers.
SPECIFICATIONS:
• Board Material is .062 thick FR-4 with 1 oz. Copper
traces, both sides.
• Pins are Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16085
• Pin plating is 200μ [5.08μm] min. Tin per MIL-T-10727
Type 1 or Tin/Lead 90/10 MIL-P-81728 over 100μ
{2.54μm] Nickel per QQ-N-290.
• Operating temperature = 221ºF [105ºC]
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.028 ± .003 [.71 ± .08].dia.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
abc
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
18085
europe@arieselec.com
REV. B
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
