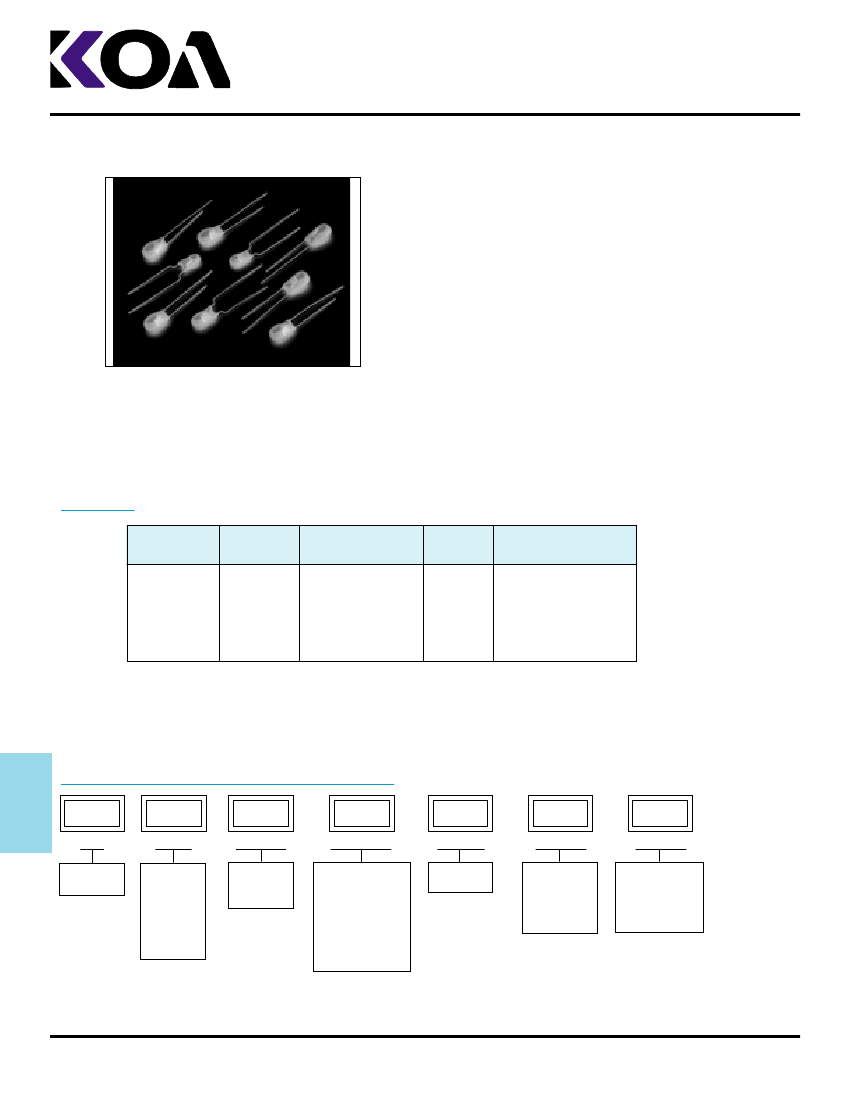

TANTALUM DIPPED RADIAL
TDR
SPEER ELECTRONICS, INC.
• Flame retardant coating.
• Wide variety of sizes available.
• Excellent temperature stability.
• Reliability rate 1% per 1,000 hours at
85
o
C with 0.1Ω/v series impedance, 60%
confidence level
RATINGS
Capacitance
Range
Voltage
Ratings
Dissipation
Factor
≤0.04
for 0.1 ~1.5µF
0.1µF ~ 330µF
6.3 ~ 50V
≤0.06
for 2.2 ~ 6.8µF K =
±10%
≤0.08
for 10 ~ 68µF
≤0.10
for 100 ~330µF
M =
±20%
-55°C ~ +125°C
Tolerance
Operating
Temperature Range
LEADED
COMPONENTS
ORDERING & SPECIFYING INFORMATION
TDR
Type
TDR
OJ
Voltage
OJ = 6.3V
1A = 10V
1C = 16V
1D = 20V
1E = 25V
IV = 35V
1H = 50V
A
Case Size
A-R
See page
161
104
Capacitance
First 2 digits are
significant. The
third represents the
number of zeros.
For values below
10pF use
an R for the
decimal point.
M
Tolerance
K =
±10%
M =
±20%
A
Wire Form
A
B
S
See page
162
A
Packaging
Blank = Bulk
A = Ammo
L = Lead Spool
See
Appendix E
TELEPHONE:
814-362-5536
160
FAX:
814-362-8883
TANTALUM DIPPED RADIAL
TDR
SPEER ELECTRONICS, INC.
CAPACITANCE RANGE
CAPACITANCE/VOLTAGE/CASE SIZE CHART
SIZE
CAPACITANCE VALUES
µF
Code
.100
.150
.220
.330
.470
.680
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
104
154
224
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
A
A
A
B
C
D
E
F
G
H
K
M
P
A
A
A
B
C
D
E
F
G
H
K
N
P
R
A
A
A
B
C
D
E
F
F
J
L
N
N
R
A
A
A
B
C
D
E
F
H
J
K
N
N
A
A
A
B
C
D
E
F
H
J
M
N
Voltage
Code
Voltage
Rated
OJ
6.3V
1A
10V
1C
16V
1D
20V
1E
25V
1V
35V
A
A
A
A
A
A
A
A
B
C
E
F
F
H
K
M
N
1H
50V
A
A
A
A
A
B
C
D
E
F
G
H
J
K
L
*IR and vapor Phase soldering only recommended.
*KOA Speer reserves the right to supply capacitors at a higher voltage rating, in the same case size, than that ordered.
MARKING
CASE SIZE INFORMATION
CASE
A
B
H
8.5 (0.33)
9.0 (0.35)
10.0 (0.39)
10.5 (0.41)
10.5 (0.41)
11.5 (0.45)
11.5 (0.45)
12.0 (0.47)
13.0 (0.51)
14.0 (0.55)
14.0 (0.55)
14.5 (0.57)
16.0 (0.63)
17.0 (0.67)
*H1
7.0 (0.28)
7.5 (0.30)
8.5 (0.33)
9.0 (0.35)
9.0 (0.35)
10.0 (0.39)
10.0 (0.39)
10.5 (0.41)
D
4.5 (0.18)
4.5 (0.18)
+KOA
10µ
16
K
Tolerance marking
only for 10% product
E
F
G
H
J
K
L
M
N
P
5.5 (0.22)
6.0 (0.24)
6.5 (0.26)
7.0 (0.28)
8.0 (0.31)
8.5 (0.33)
9.0 (0.35)
9.0 (0.35)
9.0 (0.35)
10.0 (0.39)
10.0 (0.39)
millimeters (inches)
Front
Back
R
18.5 (0.73)
*H
1
refers to H dimension on S wire form.
TELEPHONE:
814-362-5536
161
FAX:
814-362-8883
LEADED
COMPONENTS
C
D
5.0 (0.20)
5.0 (0.20)
