MQ-313-051-113-4300 datasheet, PDF

MQ-313-051-113-4300: DescriptionD Type Connector, 51 Contact(s), Male, 0.05 inch Pitch, Solder Lug Terminal, Locking, Plug; CategoryThe connector The connector; File Size1MB，4 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

MQ-313-051-113-4300 Overview

D Type Connector, 51 Contact(s), Male, 0.05 inch Pitch, Solder Lug Terminal, Locking, Plug

Parameter Name	Attribute value
Objectid	313744657
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.25 inch
subject depth	0.178 inch
body length	1.428 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	26 mΩ
Contact style	RND PIN-SKT
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	MQ
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	50u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	CADMIUM
Termination type	SOLDER LUG
Total number of contacts	51
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	2.78 N

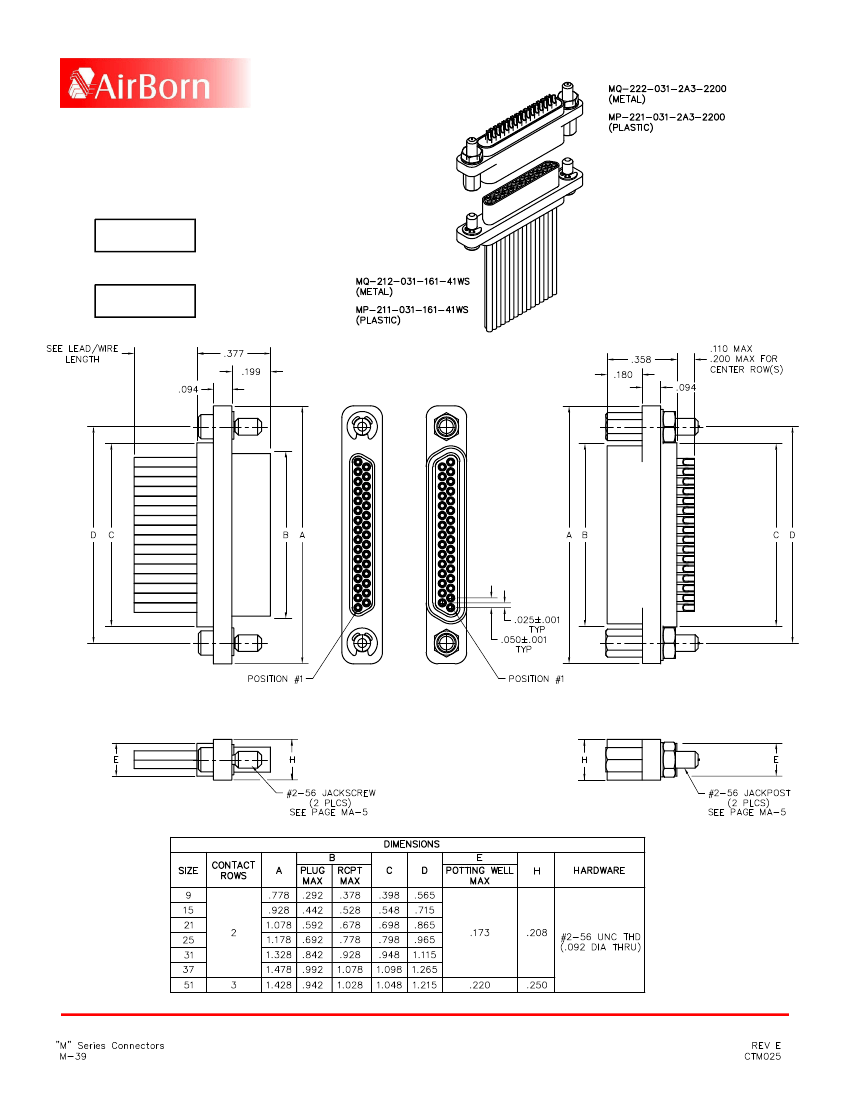

.050"

9 thru 51 Contacts

Low Profile Metal

Low Profile Plastic

PLUG

RECEPTACLE

Call (972) 931-3200 Fax (972) 931-9305 www.AirBorn.com
