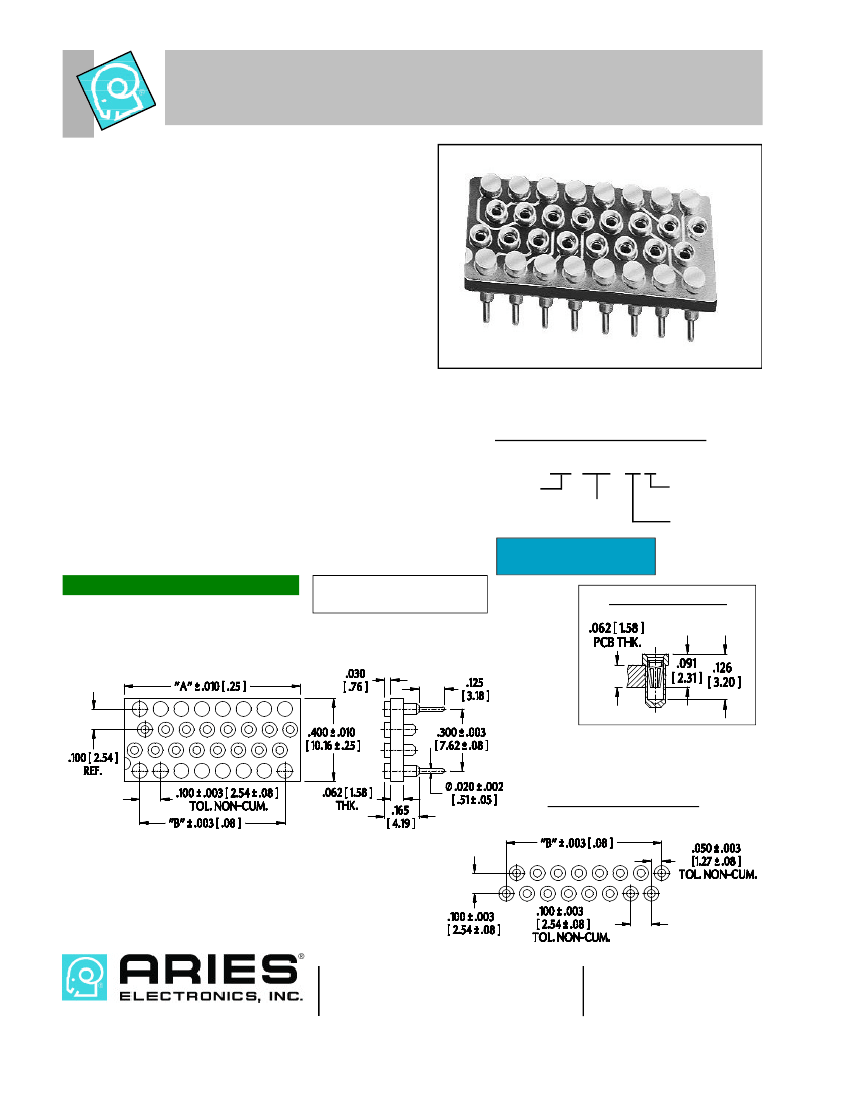

Series 539
ZIP-DRAM to .300 [.76] DIP Adapter
FEATURES:
• Convert existing ZIP-DRAM device to .300 [.76] center DIP sock-
et.
• Designed especially to convert Mitsubishi, Fujitsu, etc., Dynamic
RAMS.
SPECIFICATIONS:
• PCB is black FR-4, .062 [1.56] thick, with 1 ounce Copper traces
both sides.
• Male pin is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Male pin plating is 200µ [5.08µm] min. 93/7 Tin/Lead per
MIL-P-81728 over 50µ [1.27µm] min. Nickel per QQ-N-290.
• Female pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Female pin body plating is 200µ [5.08µm] min. 93/7 Tin/Lead per
MIL-P-81728 over 100µ [2.54µm] min. Nickel per
QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per
UNS C17200 ASTM-B194-92.
• Contact plating is 10µ [.254µm] min. Gold per MIL-G-45204 over
50µ [1.27µm] min. Nickel per QQ-N-290. Optional 150µ
[3.81µm] min. Tin plating also available.
• Contact current rating=1 Amp @ 5 VDC.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal Force=90
grams/pin; Normal Force=140 grams/pin; based on a .018 [.46]
diameter test lead.
• Socket accepts leads .015-.025 [.38-.64] in diameter,
.100-.125 [2.54-3.18] long.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-539-10X
No. of pins:
16, 20, 28
Series
Optional suffix:
T=Tin collet
contact
Tin plated sol-
der tail pin
Consult Data Sheet No.
14010 for ZIP sockets.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
CONTACT DETAIL
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
ZIP-DRAM FOOTPRINT
(top view component side)
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
14011
REV.B
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
