35585-0800 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35585-0800

35585-0800: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35585-0800 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug

35585-0800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	NONE
body width	0.252 inch
subject depth	0.295 inch
body length	0.709 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
maximum insertion force	5.3376 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	35585
Plug contact pitch	0.079 inch
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Total number of contacts	8
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	1.946 N
Base Number Matches	1

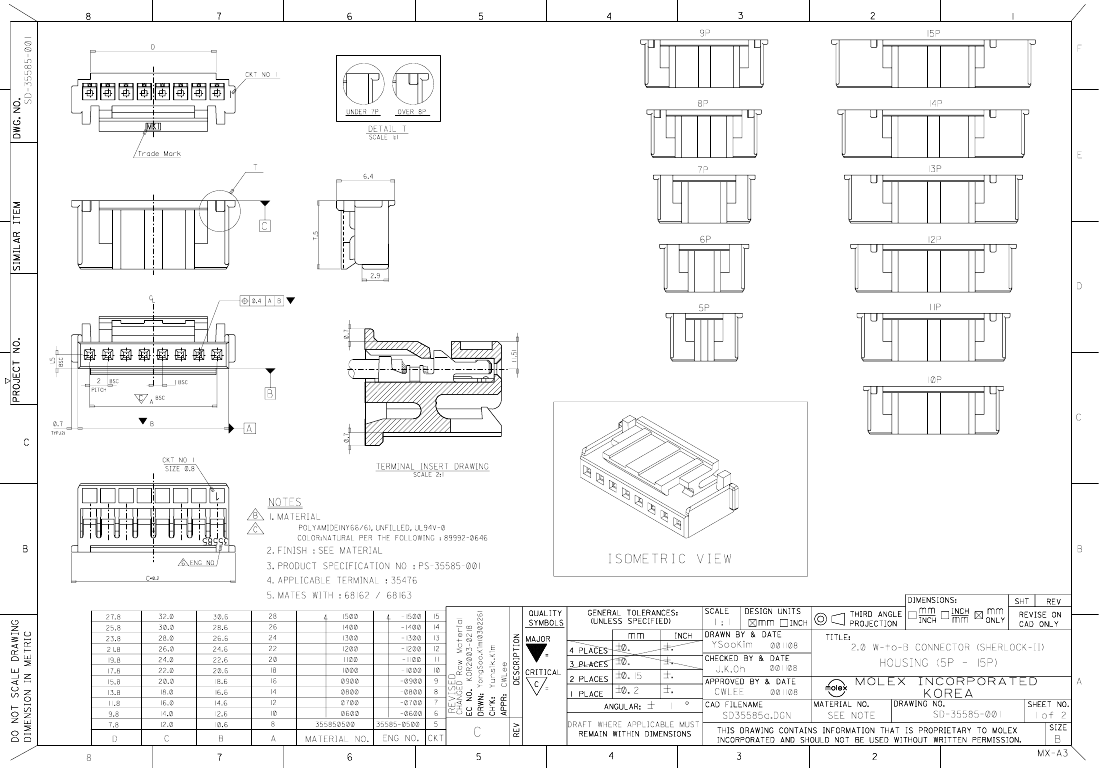

Preview

Download Datasheet

View All

35585-0800 Related Products

	35585-0800	35585-1200	35585-0700	35585-0500	35585-0600	35585-1500	35585-1300	35585-1000	35585-0900
Description	Board Connector, 8 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 12 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 15 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 13 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Natural Insulator, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	NONE	NONE	NONE	NONE	NONE	NONE	NONE	NONE	NONE
body width	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch
subject depth	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch
body length	0.709 inch	1.024 inch	0.63 inch	0.472 inch	0.551 inch	1.26 inch	1.102 inch	0.866 inch	0.787 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	5.3376 N	5.3376 N	5.3376 N	5.3376 N	5.3376 N	5.3376 N	5.3376 N	5.3376 N	5.3376 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	35585	35585	35585	35585	35585	35585	35585	35585	35585
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	8	12	7	5	6	15	13	10	9
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Evacuation force-minimum value	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N
Base Number Matches	1	1	1	1	1	1	1	1	1
