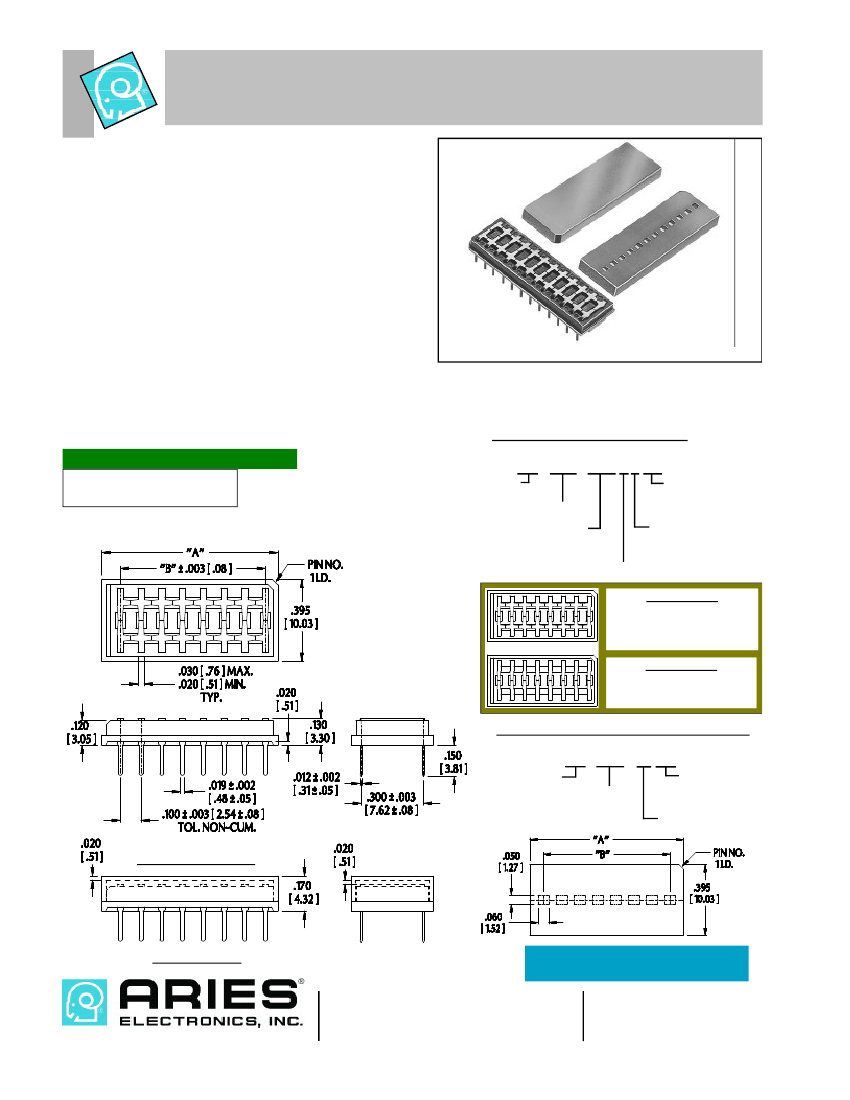

Series 680
Program Headers and Covers
FEATURES:
• Complete versatility for programming within the unit
itself...thus eliminating the need for DIP switches in many
situations.
• Available pre-programmed from Aries, or do it yourself using
Aries’ hand tool No. T-680. Consult Data Sheet No. 22002
for programming tool information.
• Available with plain (solid) or “top-slot” press-on covers.
Plain covers protect programs while “top-slot” covers allow
programming of opposing pins through square openings on
top.
SPECIFICATIONS:
• Standard body and cover are red UL 94-HB Glass-filled
Nylon.
• Hi-temp body and cover are black UL 94V-0 4/6 Nylon.
• Pins are Brass Alloy, 3/4 hard.
• Pin plating is 50-150µ [1.27-3.81µ] 60/40 Tin/Lead Alloy.
• Current rating=1 Amp.
• Operating temperature=221°F [105°C].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.032 ± .002 [.81± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-680-19XTXXX
No. of pins:
4 thru 24
Optional suffix:
V0=UL94V-0
Series
plastic
Interconnection style
Optional Suffix:
(see below)
C=”Top-slot”
pre-assembled to header
Tin plated pin
(style 191 only)
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW -1) X .100 [2.54]
STYLE 190
All pins interconnected,
both adjacent and
opposing
STYLE 191
Opposing pins
interconnected only.
COVER ORDERING INFORMATION
XX-65X-10XX
No. of pins:
4 thru 24 Cover series:
655=plain
658=top-slot
Optional suffix:
V0=UL 94V-0
plastic
Cover number
WITHOUT COVER
WITH COVER
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
Choose between plain (solid) and
“top-slot” cover styles.
16005
http://www.arieselec.com • info@arieselec.com
REV.B
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
