1KA004-79G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 1KA004-79G

1KA004-79G: DescriptionIC Socket, PGA4, 4 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size116KB，1 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

1KA004-79G Overview

IC Socket, PGA4, 4 Contact(s), ROHS COMPLIANT

1KA004-79G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SOCKET ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	BRASS/COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	PGA4
Shell material	POLYIMIDE
JESD-609 code	e4
Number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

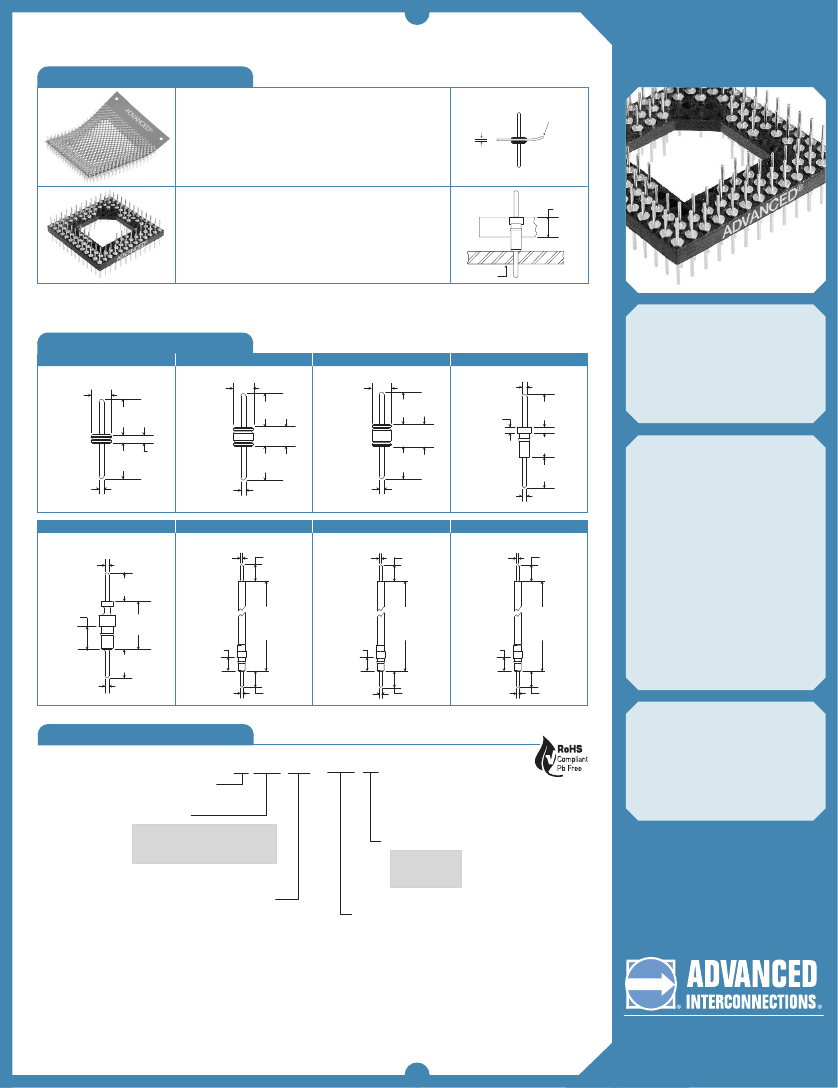

Pin Grid Array Adapters

.100/(2.54mm) Standard Grid

Table of Models

Description:

Peel-A-Way

(KA)

Material: Polyimide Film

Index: -269°C to 400°C (-452°F to 752°F)

Description:

Molded (RCA)

Mat’l: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

RCA replaces HCA.

Standard Terminals

Peel-A-Way

only

.072 Dia.

(1.83)

.125

(3.18)

Additional standard and custom terminals available.

See Terminals section or consult factory.

Peel-A-Way

only

.072 Dia.

(1.83)

.125

(3.18)

.070

(1.78)

Type -79

Type -80

.005

(.13)

PC Board

PGA Adapters

Polyimide

Film

.100

(2.54)

Features:

• Screw-machined terminals for

long-term durability.

• Mating sockets available.

• Custom designs available.

Peel-A-Way

only

.072 Dia.

(1.83)

.125

(3.18)

.085

(2.16)

.125

(3.18)

.018 Dia.

(.46) Typ. 2

Type -81

Molded only

.025 Dia.

(.64)

.166

(4.22)

Type -08

.052

(1.32)

.125

(3.18)

.030

(.76)

.103

(2.62)

.156

(3.96)

.018 Dia.

(.46)

.125

(3.18)

.018 Dia.

(.46) Typ. 2

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

.018 Dia.

(.46) Typ. 2

Molded only

.018 Dia.

(.46)

.125

(3.18)

.100

(2.54)

Type -68

Molded only

.018 Dia.

(.46)

.125

(3.18)

Type -43

Type -185

.018 Dia.

(.46)

Molded only

.125

(3.18)

Molded only

.018 Dia.

(.46)

.125

(3.18)

Type -42

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per ASTM-B-488

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

.210

(5.33)

.335

(8.51)

.100

(2.54)

.100

(2.54)

.500

(12.70)

.100

(2.54)

.585

(14.86)

.125

(3.18)

.018 Dia.

(.46)

.018 Dia.

(.46)

.125

(3.18)

.018 Dia.

(.46)

.125

(3.18)

.018 Dia.

(.46)

.125

(3.18)

Available Online:

How To Order

1 RCA 068 - 08

Footprint Dash #

If Applicable

Body Type

RoHS Compliant Insulators:

KA - Peel-A-Way

• Hundreds of footprints

• Extraction Tools

• RoHS Qualification Test Report

• CAD Drawings

Terminal Plating

RoHS Compliant:

RCA - Hi-Temp Molded LCP

Number of Pins

004 to 484

*Footprints available online

G - Gold

M - Matte Tin

T - Tin-Lead

Terminal Type

See options above for fastest delivery

or select from additional styles in

Terminals section.

inch/(mm)

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16A
