T1008-18NG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> T1008-18NG

T1008-18NG: Descriptioninductor WW 18nh 1A 1008 2%; CategoryPassive components; File Size341KB，3 Pages; ManufacturerTAMURA Corporation; Websitehttp://www.tamura-ss.co.jp/; Environmental Compliance

Download Datasheet Parametric View All

T1008-18NG Overview

inductor WW 18nh 1A 1008 2%

T1008-18NG Parametric

Parameter Name	Attribute value
Datasheets
T1008 Series
Standard Package	10,000
Category	Inductors, Coils, Chokes
Family	Fixed Inductors
Packaging	Tape & Reel (TR)
Type	Wirewound
Material - Core	-
Inductance	18nH
Tolerance	±2%
Current Rating	1A
Current - Saturati	-
Shielding	Unshielded
DC Resistance (DCR)	110 mOhm Max
Q @ Freq	50 @ 350MHz
Frequency - Self Res	2.5GHz
Operating Temperature	-
Frequency - Tes	50MHz
Mounting Type	Surface Mou
Package / Case	1008 (2520 Metric)
Size / Dimensi	0.106" L x 0.098" W (2.70mm x 2.50mm)
Height - Seated (Max)	0.089" (2.25mm)
Supplier Device Package	1008 (2520 Metric)

Preview

Download Datasheet

View All

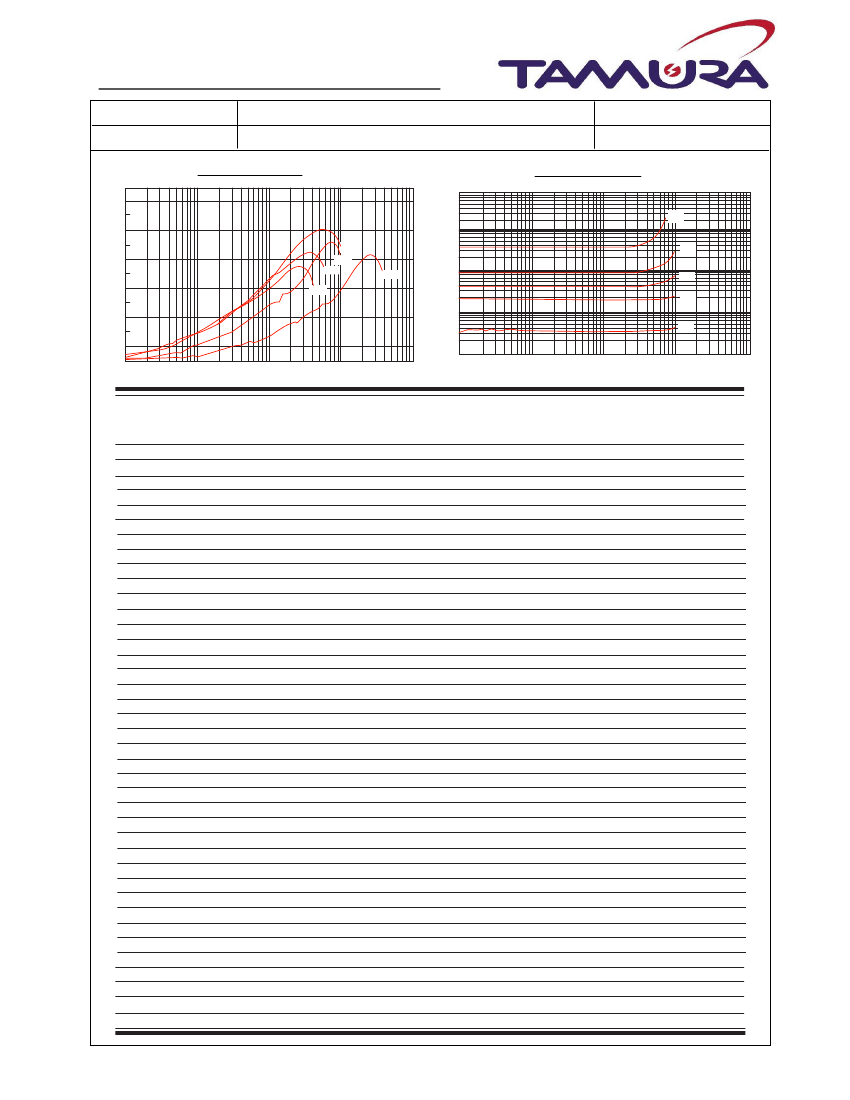

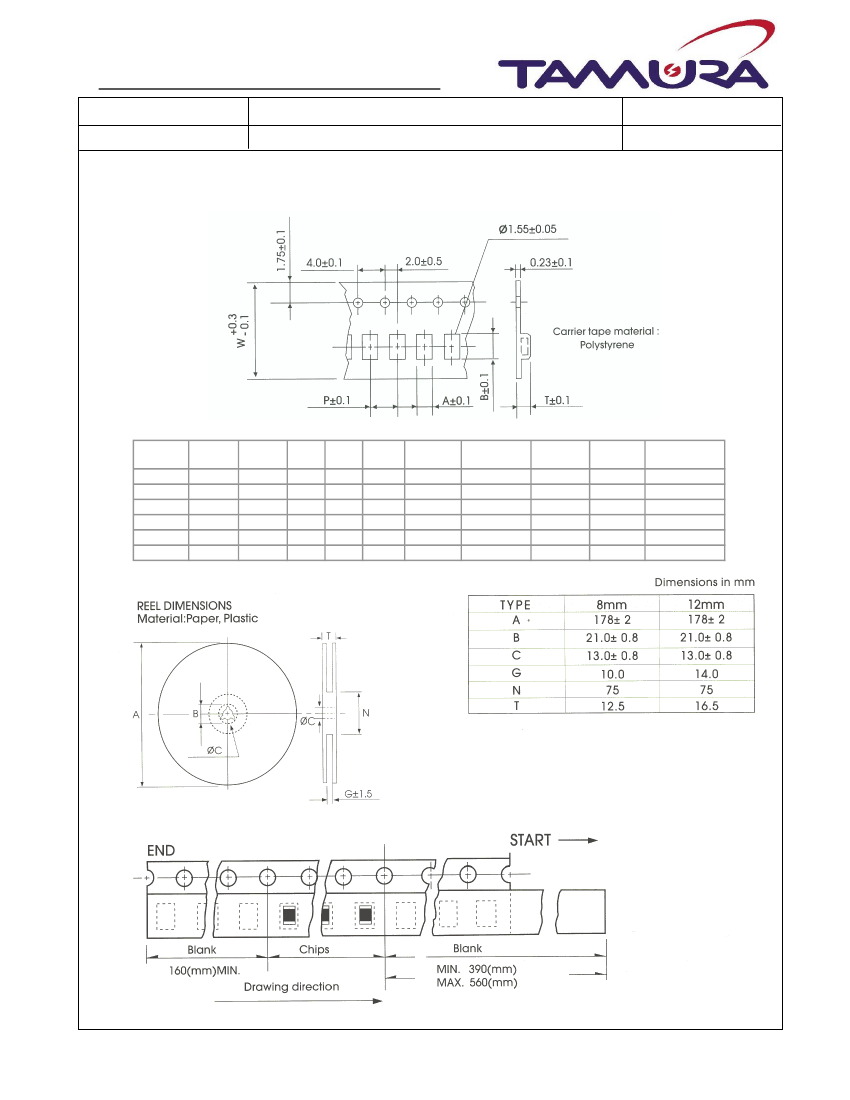

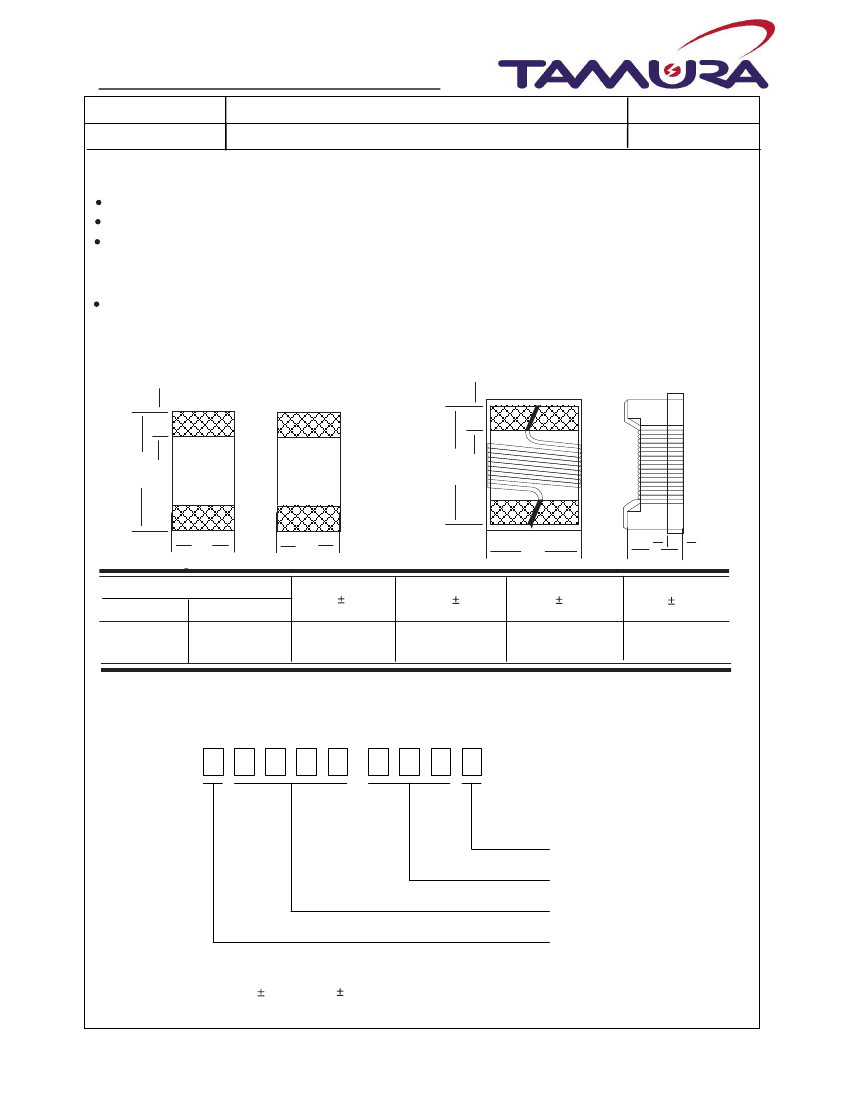

PRODUCT SPECIFICATION

Product Name

TAMURA Part No.

1008

WIRE WOUND

CERAMIC CHIP

INDUCTORS

T1008-XXX

Page

Rev. No.

Features:

Small and lightweight.

Wide inductance range, 4.7nH to 820nH.

Excellent solderability and resistance to

soldering heat, suitable for flow and reflow

soldering.

Minimum dimensions, high reliability and high

speed surface mount assembly.

Application:

1. Prevention of electromagnetic inter-

ference to signals on the secondary side

of electric equipment

2. Telecommunication products, mobile

phone, pagers, cellular phone, computers.

Modems, OA products, TVs, VCRs. etc.

1. CONFIGURATION & DIMENSIONS :

1008

0.5

Size Code

Japan

2520

USA/Europe

1008

0.2

2.05

0.2

2.70

2.50

0.50

All dimensions in mm

2. Part No. FORMAT

TOLERANCE CODE

INDUCTANCE CODE

SIZE

TAMURA PREFIX

Tolerance Code: J= 5%, G=
