T1812-8R2J: Descriptioninductor WW 8.2uh 200ma 1812 5%; CategoryPassive components; File Size331KB，3 Pages; ManufacturerTAMURA Corporation; Websitehttp://www.tamura-ss.co.jp/; Environmental Compliance

Download Datasheet Parametric View All

T1812-8R2J Overview

inductor WW 8.2uh 200ma 1812 5%

T1812-8R2J Parametric

Parameter Name	Attribute value
Datasheets
T1812 Series
Standard Package	10,000
Category	Inductors, Coils, Chokes
Family	Fixed Inductors

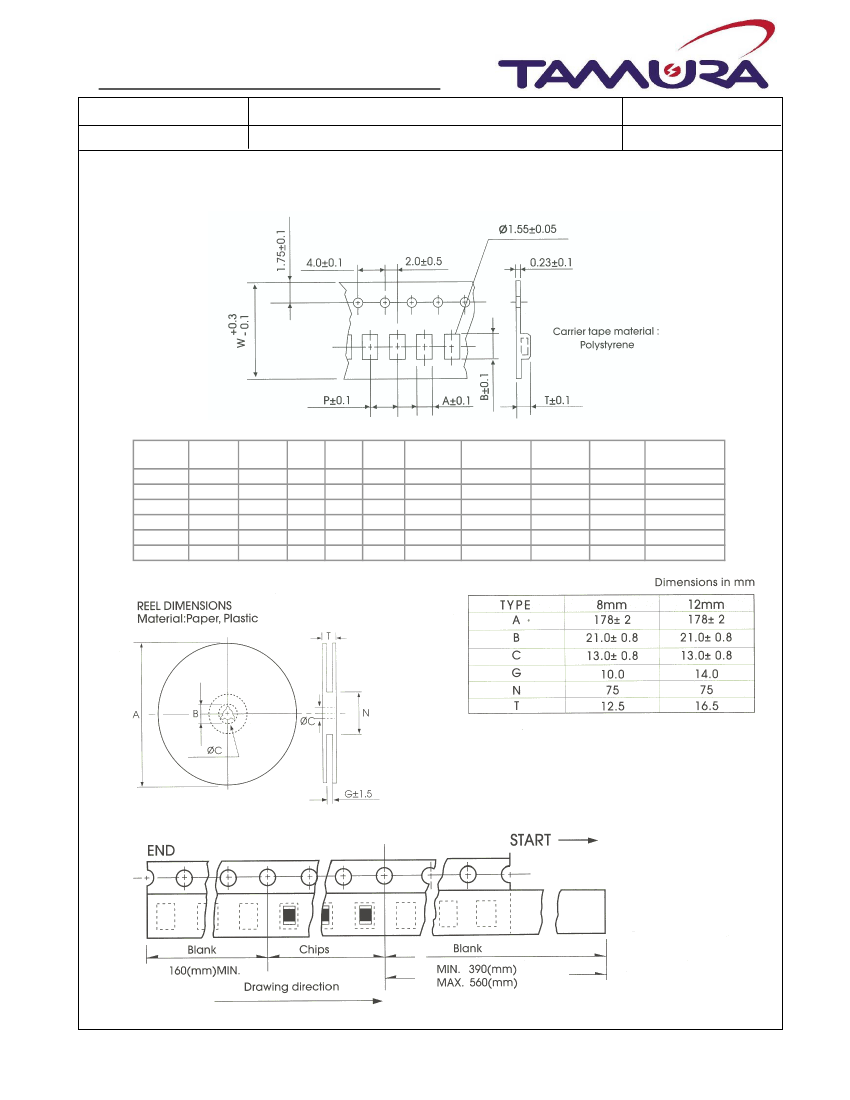

Packaging	Tape & Reel (TR)
Type	Wirewound
Material - Core	Ceramic
Inductance	8.2µH
Tolerance	±5%
Current Rating	200mA
Current - Saturati	-
Shielding	Unshielded
DC Resistance (DCR)	1.4 Ohm Max

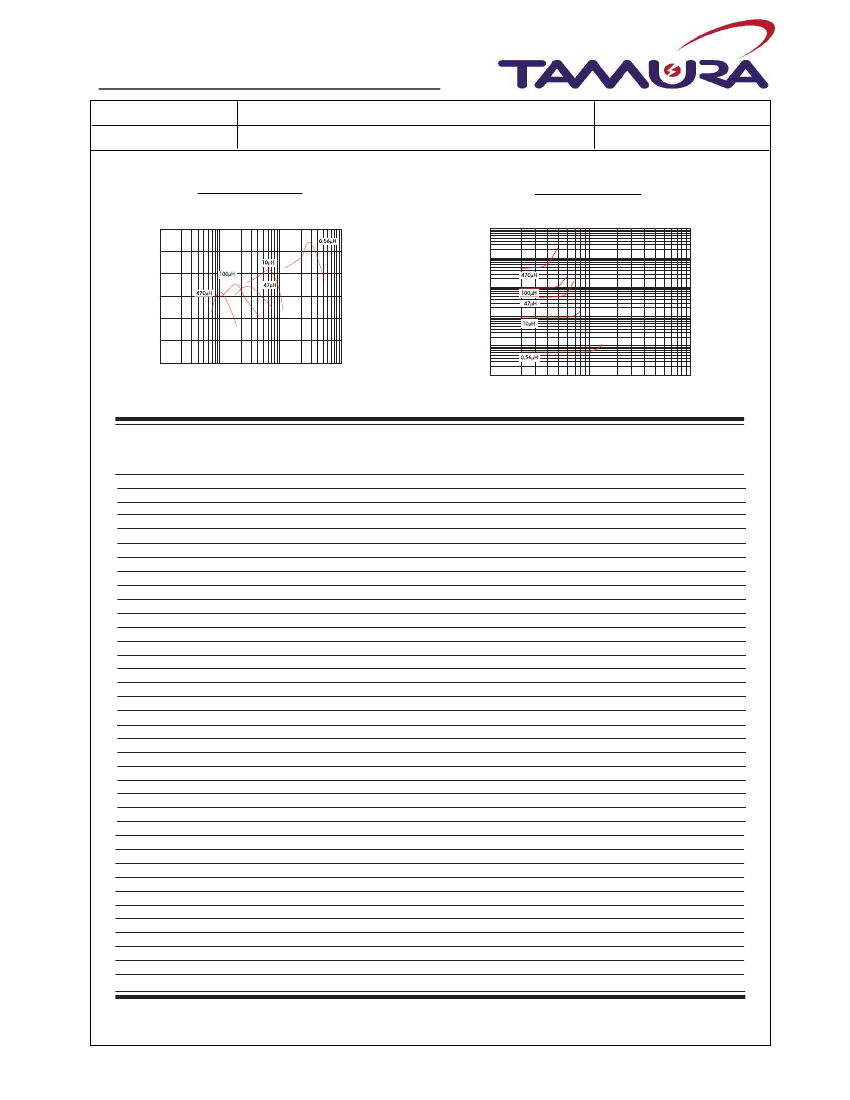

Q @ Freq	50 @ 7.96MHz
Frequency - Self Res	80MHz
Operating Temperature	-
Frequency - Tes	7.96MHz
Mounting Type	Surface Mou
Package / Case	1812 (4532 Metric)
Size / Dimensi	0.195" L x 0.150" W (4.95mm x 3.81mm)
Height - Seated (Max)	0.143" (3.63mm)
Supplier Device Package	1812

Preview

Download Datasheet

View All

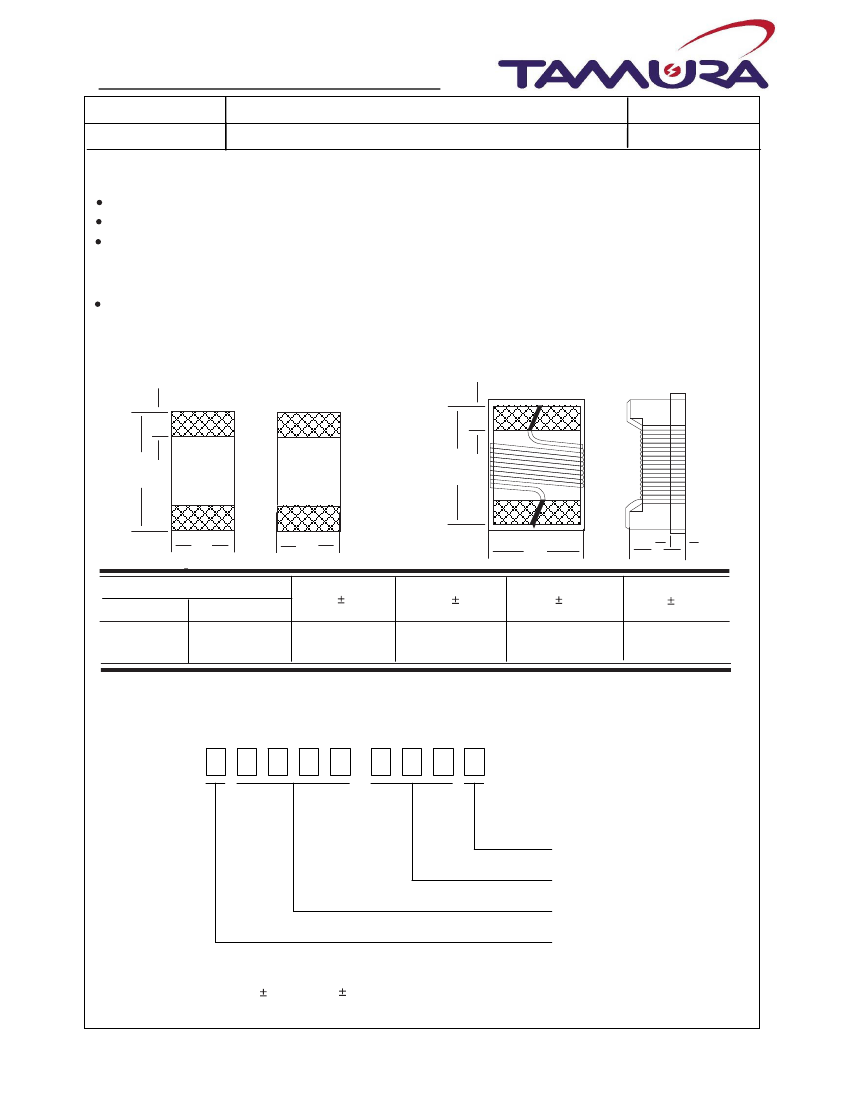

PRODUCT SPECIFICATION

Product Name

TAMURA Part No.

1812WIRE

WOUND

CERAMIC CHIP

INDUCTORS

T1812-XXX

Page

Rev. No.

1

0

Features:

Small and lightweight.

Wide inductance range, 1.6nH to 270nH.

Excellent solderability and resistance to

soldering heat, suitable for flow and reflow

soldering.

Minimum dimensions, high reliability and high

speed surface mount assembly.

Application:

1. Prevention of electromagnetic inter-

ference to signals on the secondary side

of electric equipment

2. Telecommunication products, mobile

phone, pagers, cellular phone, computers.

Modems, OA products, TVs, VCRs. etc.

1. CONFIGURATION & DIMENSIONS :

S

L

1812

W

L

W

T

0.5

Size Code

Japan

4532

USA/Europe

1812

L

0.2

W

0.2

T

0.2

3.43

S

0.2

4.95

3.81

0.64

All dimensions in mm

2. Part No. FORMAT

:

T

1

8

1

2

-

TOLERANCE CODE

INDUCTANCE CODE

SIZE

TAMURA PREFIX

Tolerance Code: J= 5%,

K=

10%
