Q-50.000000M-HC2016/4-F-50-30-B-12-TR

Description
Parallel - Fundamental Quartz Crystal
CategoryPassive components    Crystal/resonator
File Size154KB,1 Pages
ManufacturerAuris
Environmental Compliance
Download Datasheet Parametric View All

Q-50.000000M-HC2016/4-F-50-30-B-12-TR Overview

Parallel - Fundamental Quartz Crystal

Q-50.000000M-HC2016/4-F-50-30-B-12-TR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1289549156
Reach Compliance Codeunknown
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Manufacturer's serial numberHC2016/4
Quartz SMD, Ceramic
HC 2016/4
Features:
- SMD
- High reliability
- Application: Bluetooth, wireless LAN
- Ultra thin and small leadless type
Specifications
Frequency range
Frequency tolerance,Ta=25°C
Load capacitance
Temperature tolerance
Storage temperature range
Operating temperature range
Maximum drive level
Recommended drive level
Series resistance
Shunt capacitance
Insulation resistance
Aging
Symbol
f
∆f/f
C
L
∆f/f
T
STG
T
OPR
M
DL
R
DL
R
1
C
0
I
R
∆f
A
HC2016/4
20.000MHz ~ 50.000MHz
-
±10ppm ~ ±30ppm
12pf
±10ppm ~ ±50ppm
-40°C ~ +85°C
-20°C ~ 70°C
100µW
50µW
As per table
3pF
500M Ohm
±3ppm/Year
25°C ±3°C
Max
Min
Remarks
Fundamental mode
Please specify
Others are offered
Please specify
Others are offered
Resistance of series resonance (ESR)
Frequency (MHz)
Mode
20.0 <= f < 26.0
Fundamental
26.0 <= f < 30.0
Fundamental
Ohm max
200
100
Frequency (MHz)
30.0 <= f < 50.0
Mode
Fundamental
Ohm max
80

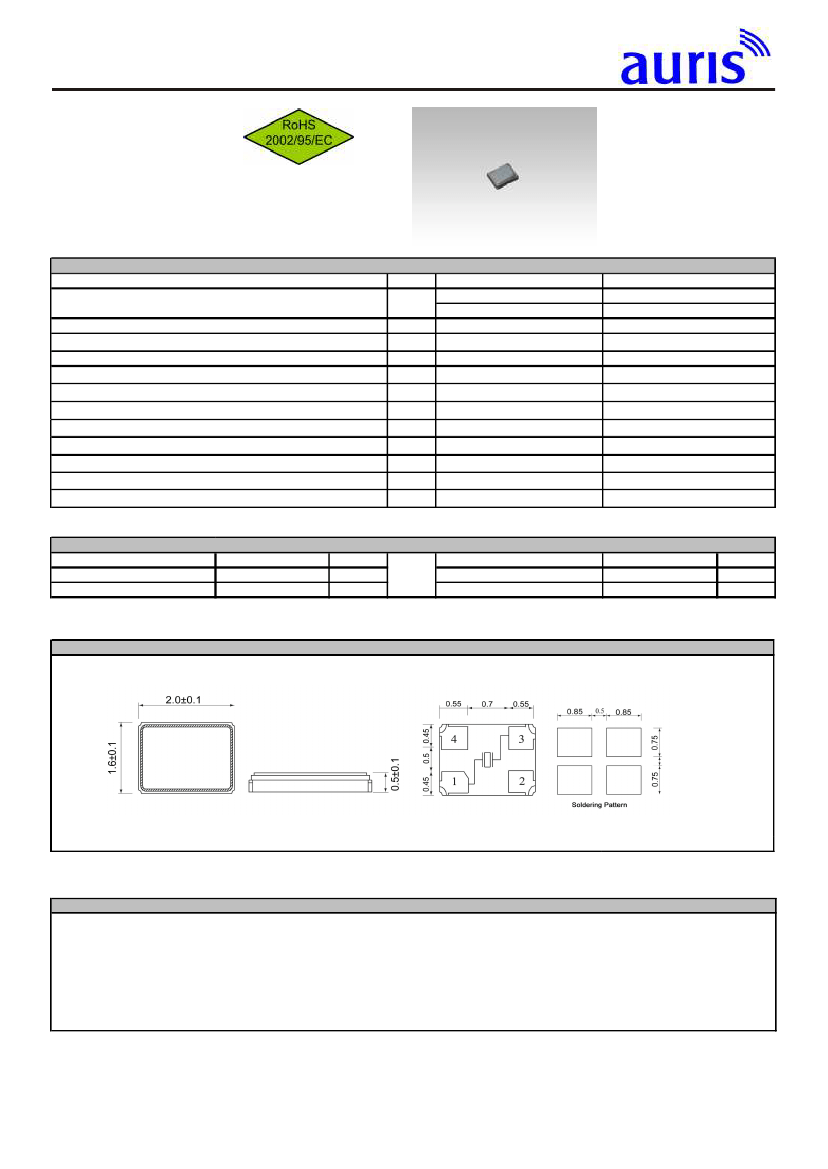

Drawing
HC2016/4
Dimensions in mm
Order key
Q
Part
- 28.000000M - HC2016/4
Frequency
Package
-F
Mode of
oscillation
- 30
Frequency
tolerance
±ppm
(25°C)
- 30
Temperature
tolerance
±ppm
(Temp. range)
-A
Temperature
range
A=
0°C ~ +70°C
- 12
Load
capacitance
pF
- TR
Option
Q=Quartz
M=MHz
HC2520/4
F=fund.
TR=Tape and reel
X=Special options
B= -10°C ~ +60°C
C= -10°C ~ +70°C
D= -20°C ~ +70°C
auris-GmbH
office@auris-gmbh.de www.auris-gmbh.de
All specifications are subject to change without notice.
2.21
