KU82596CA-33: DescriptionLAN Controller, 1 Channel(s), 2.5MBps, CMOS, PQFP132, 0.635 MM PITCH, PLASTIC, QFP-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，76 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

KU82596CA-33 Overview

LAN Controller, 1 Channel(s), 2.5MBps, CMOS, PQFP132, 0.635 MM PITCH, PLASTIC, QFP-132

KU82596CA-33 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	QFP
package instruction	0.635 MM PITCH, PLASTIC, QFP-132
Contacts	132
Reach Compliance Code	unknown
Other features	ON-CHIP MEMORY MANAGEMENT
Address bus width	32
boundary scan	NO
Bus compatibility	I486; 80960CA
maximum clock frequency	33 MHz
letter of agreement	SYNC, HDLC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	2.5 MBps
External data bus width	32
JESD-30 code	S-PQFP-G132
length	24.13 mm
low power mode	NO
Humidity sensitivity level	1
Number of DMA channels	4
Number of I/O lines
Number of serial I/Os	1
Number of terminals	132
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Encapsulate equivalent code	SPQFP132,1.1SQ
Package shape	SQUARE
Package form	FLATPACK, BUMPER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.32 mm
Maximum slew rate	300 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.13 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Base Number Matches	1

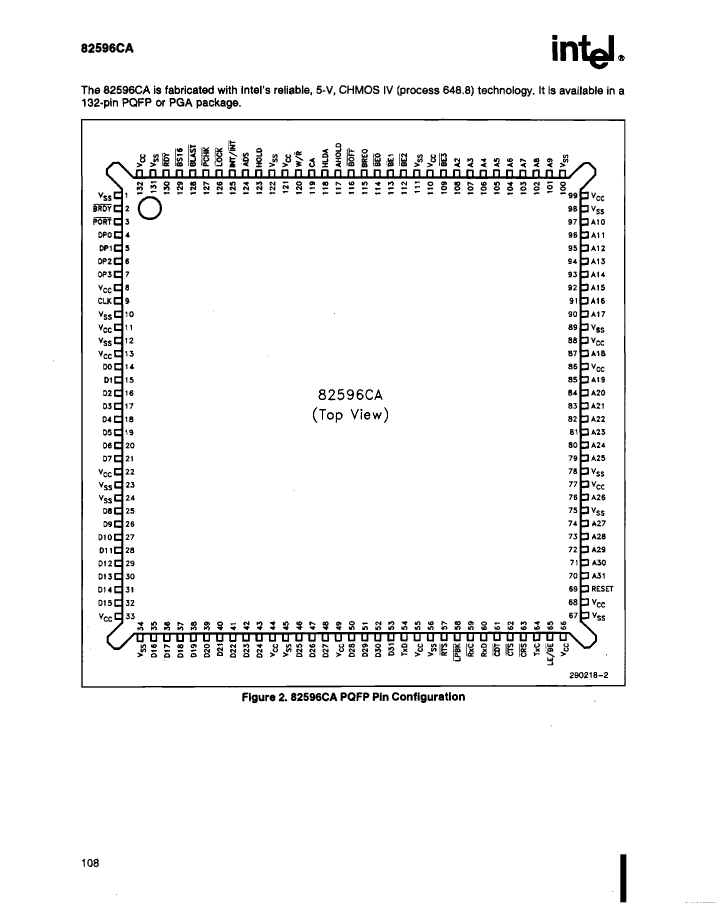

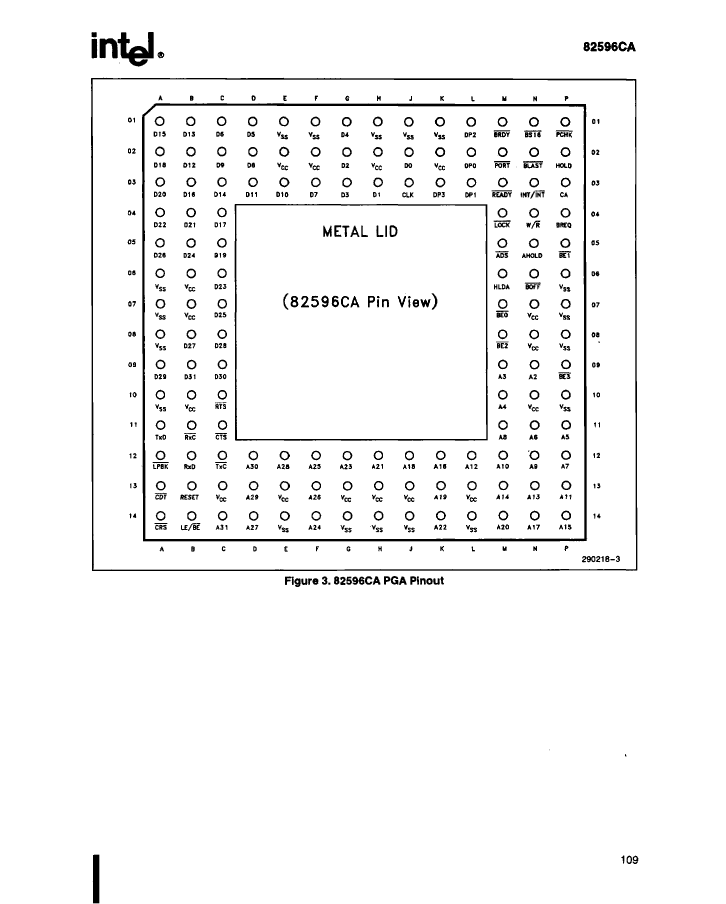

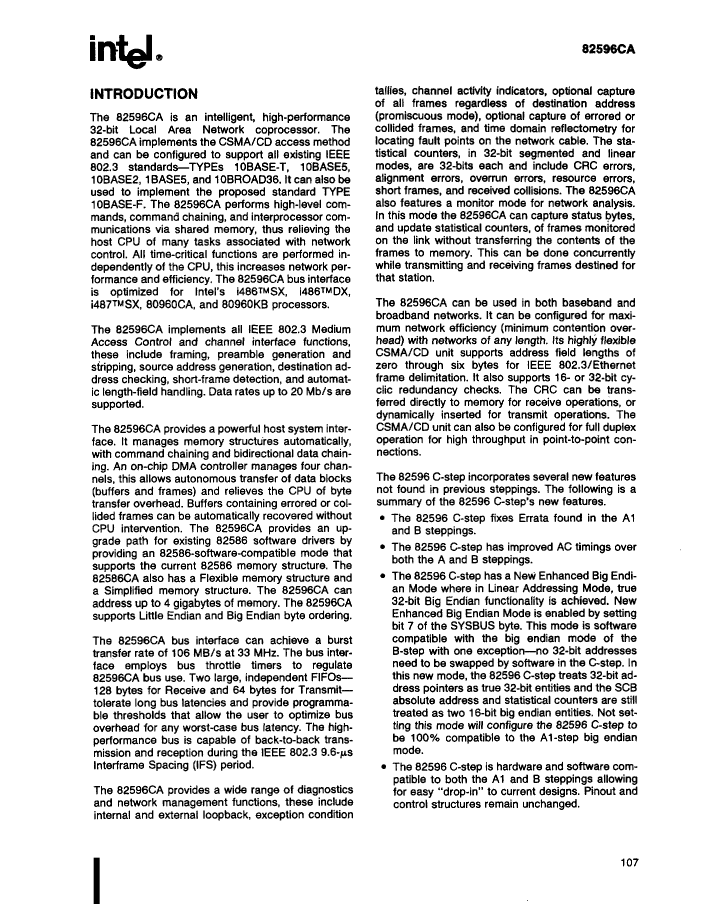

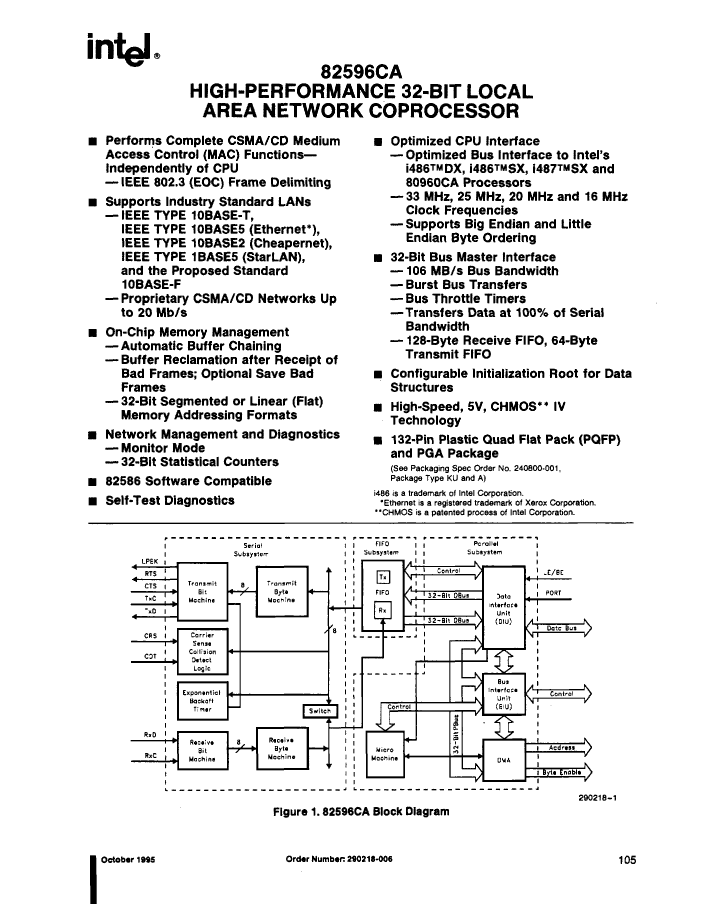

Preview

Download Datasheet

View All

KU82596CA-33 Related Products

	KU82596CA-33	KU82596CA-25	KU82596CA-16
Description	LAN Controller, 1 Channel(s), 2.5MBps, CMOS, PQFP132, 0.635 MM PITCH, PLASTIC, QFP-132	LAN Controller, 1 Channel(s), 2.5MBps, CMOS, PQFP132, 0.635 MM PITCH, PLASTIC, QFP-132	LAN Controller, 1 Channel(s), 2.5MBps, CMOS, PQFP132, 0.635 MM PITCH, PLASTIC, QFP-132
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Intel	Intel	Intel
Parts packaging code	QFP	QFP	QFP
package instruction	0.635 MM PITCH, PLASTIC, QFP-132	BQFP, SPQFP132,1.1SQ	BQFP, SPQFP132,1.1SQ
Contacts	132	132	132
Reach Compliance Code	unknown	compliant	unknown
Other features	ON-CHIP MEMORY MANAGEMENT	ON-CHIP MEMORY MANAGEMENT	ON-CHIP MEMORY MANAGEMENT
Address bus width	32	32	32
boundary scan	NO	NO	NO
Bus compatibility	I486; 80960CA	I486; 80960CA	I486; 80960CA
maximum clock frequency	33 MHz	25 MHz	16 MHz
letter of agreement	SYNC, HDLC	SYNC, HDLC	SYNC, HDLC
Data encoding/decoding methods	NRZ	NRZ	NRZ
Maximum data transfer rate	2.5 MBps	2.5 MBps	2.5 MBps
External data bus width	32	32	32
JESD-30 code	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132
length	24.13 mm	24.13 mm	24.13 mm
low power mode	NO	NO	NO
Number of DMA channels	4	4	4
Number of serial I/Os	1	1	1
Number of terminals	132	132	132
Maximum operating temperature	85 °C	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BQFP	BQFP	BQFP
Encapsulate equivalent code	SPQFP132,1.1SQ	SPQFP132,1.1SQ	SPQFP132,1.1SQ
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	225
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	4.32 mm	4.32 mm
Maximum slew rate	300 mA	200 mA	200 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	24.13 mm	24.13 mm	24.13 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Base Number Matches	1	1	1
Humidity sensitivity level	1	-	1
