14821ABGLRY00102ML datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 14821ABGLRY00102ML

14821ABGLRY00102ML: DescriptionPotentiometer, Conductive Plastic, 0.5W, 1000ohm, 20% +/-Tol, -500,500ppm/Cel, 4935,; CategoryPassive components The resistor; File Size148KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

14821ABGLRY00102ML Overview

Potentiometer, Conductive Plastic, 0.5W, 1000ohm, 20% +/-Tol, -500,500ppm/Cel, 4935,

14821ABGLRY00102ML Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	967024775
Reach Compliance Code	compliant
Country Of Origin	Czechia
YTEOL	7.5
structure	Trimmer Pot
JESD-609 code	e3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	13.1 mm
Package length	12.5 mm
Package form	Panel Mount
Package width	8.83 mm
method of packing	Box
Rated power dissipation(P)	0.5 W
resistance	1000 Ω
Resistor type	POTENTIOMETER
rotation angle	240 deg
series	148
size code	4935
technology	CONDUCTIVE PLASTIC
Temperature Coefficient	500 ppm/°C
Terminal surface	Tin (Sn)
Tolerance	20%

Preview

Download Datasheet

View All

148, 149

Vishay Spectrol

1/2" (12.7 mm) Conductive Plastic and Cermet

Potentiometer

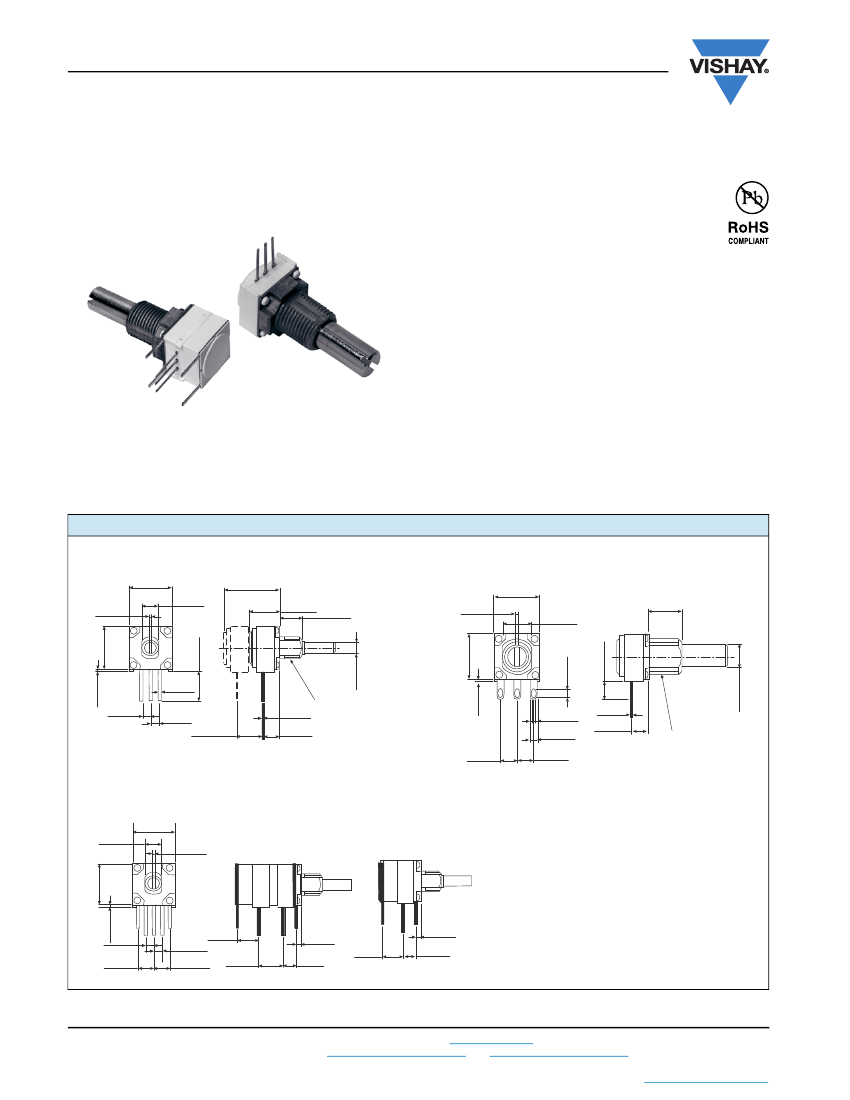

FEATURES



Robust construction



High rotational life (50 000 cycles)



Up to three sections PC support plates



Rotary switches and solder lugs terminals available



Tests according to CECC 41000 or IEC 60393-1



Compliant to RoHS Directive 2002/95/EC

148 FEATURES



Conductive plastic element



Quiet electrical output

149 FEATURES



Cermet element



Low temperature coefficient (± 150 ppm/°C)

DIMENSIONS

in millimeters (inches) ± 0.5 mm (± 0.02"

)

Single, dual or triple

12.5

(0.492)

0.8

(0.031)

12.5

(0.492)

Solder lug terminals

16.45

(0.648)

12.5

(0.492)

6.35

(0.250)

1.2

(0.047)

8.0

(0.315)

4.900

(0.193)

4.7

(0.185)

8.83

(0.348)

9.52

(0.375)

8.85

(0.341)

12.5

(0.492)

0.6

(0.024)

0.6

(0.024)

0.6

(0.024)

2.54

(0.100)

1 2 3

2.54

(0.100)

0.30

(0.012)

5.07

(0.200)

3.17

(0.125)

2.4

(0.094)

Thread 1/4 32-NEF-2A

7.62

(0.300)

0.9

(0.035)

1.800

(0.071)

4.65

(0.183)

0.300

(0.012)

4.770

(0.188)

Thread 3/8 32-NEF-2A

4.65

(0.183)

Front and rear support plates

E = Flush with board surface

4.70

(0.185)

12.5

(0.492)

0.80

(0.031)

Dual

Single

0.60

(0.024)

12.50

(0.492)

2.54

(0.100)

5.08

(0.200)

1 2 3

2.54

(0.100)

5.08

(0.200)

6.35

(0.250)

7.62

(0.300)

1.52

(0.06)

3.85

(0.151)

6.35

(0.250)

1.52

(0.06)

3.85

(0.151)

www.vishay.com

102

Document Number: 57040

For technical questions, contact:

sfer@vishay.com

See also Application Notes:

www.vishay.com/doc?51001

and

www.vishay.com/doc?52029

Revision: 05-May-11

This document is subject to change without notice.
