113-13-650-41-117000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 113-13-650-41-117000

113-13-650-41-117000: DescriptionIC Socket, DIP50, 50 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size200KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

113-13-650-41-117000 Overview

IC Socket, DIP50, 50 Contact(s), ROHS COMPLIANT

113-13-650-41-117000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP50
JESD-609 code	e4
Number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

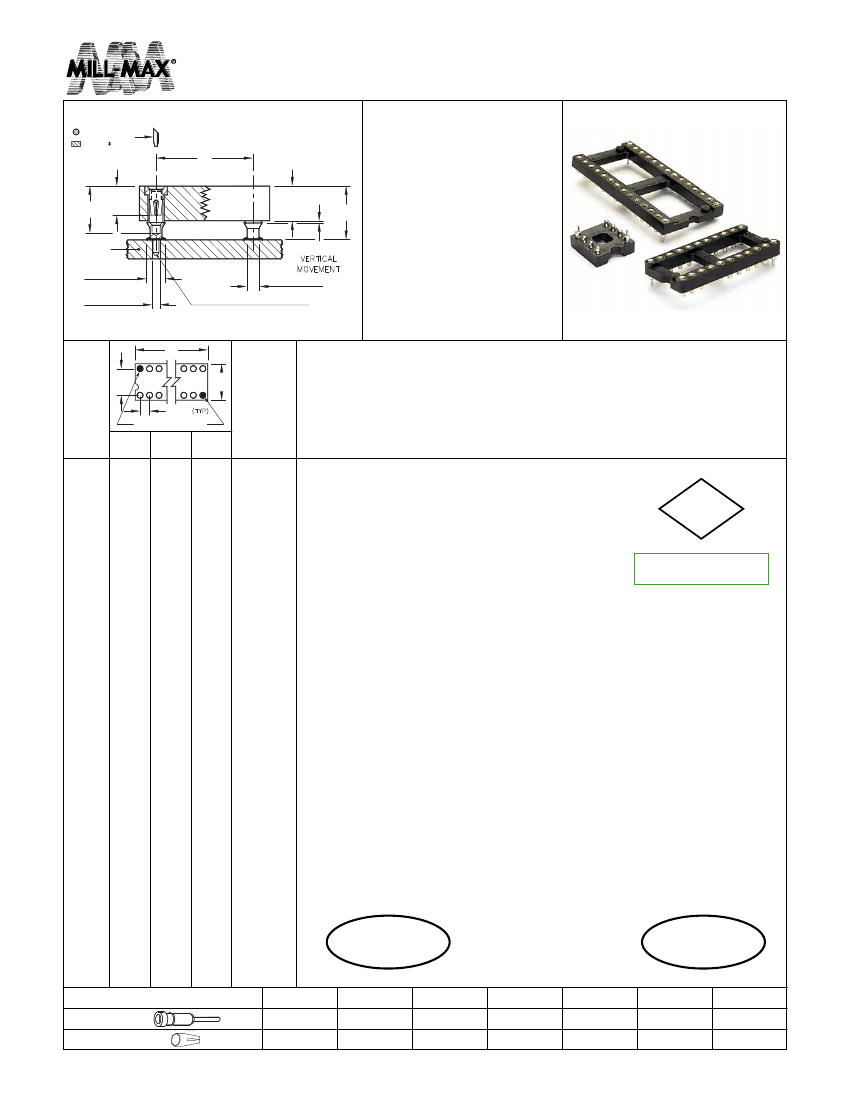

DUAL-IN-LINE SOCKETS

Surface Mount, Stub Tail, with

Alignment Pins for Hand Placement

0,38-.064

0,25 0,46

Series 113

•

Unique floating contacts compen-

sate for the effects of unevenly

dispensed solder paste.

•

Two corner alignment pins (power

& ground positions) permit manual

placement.

2,79

4,22

3,76

2,44

P.C.B.

1,5 DIA.

PADS

0,71 DIA.

PTH x2

1,63 LONG, x2

0,20

0,97 DIA.

•

High temperature insulator can

withstand infra-red reflow and vapor

phase soldering.

•

Hi-Rel, 4-finger BeCu #30 contact

is rated at 3 amps. See page 218

for details.

•

Series 113 use MM #1334 and

#1434 pins. See pages 133 & 142.

0,51 ALIGNMENT PINS

Total number

of pins

2,54

ALIGNMENT PINS

Quantity

per tube

Ordering Information

12,6 5,08

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,4

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

7,62

10,16

15,24

7,6

10,1

12,7

17,7

100



0,25μm Au

0,76μm Au

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

113-XX-210-41-117000

113-XX-304-41-117000

113-XX-306-41-117000

113-XX-308-41-117000

113-XX-310-41-117000

113-XX-314-41-117000

113-XX-316-41-117000

113-XX-318-41-117000

113-XX-320-41-117000

113-XX-322-41-117000

113-XX-324-41-117000

113-XX-328-41-117000

113-XX-420-41-117000

113-XX-422-41-117000

113-XX-424-41-117000

113-XX-428-41-117000

113-XX-432-41-117000

113-XX-624-41-117000

113-XX-628-41-117000

113-XX-632-41-117000

113-XX-636-41-117000

113-XX-640-41-117000

113-XX-642-41-117000

113-XX-648-41-117000

113-XX-650-41-117000

113-XX-652-41-117000

113-XX-950-41-117000

113-XX-952-41-117000

113-XX-964-41-117000

5,08μm Sn/Pb

2002/95/EC

RoHS

For RoHS compliance

select



plating code.

63,5 22,86 25,3

66,0 22,86 25,3

81,2 22,86 25,3

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=



5,08μm Sn

0,76μm Au



Sleeve (Pin)

Contact (Clip)

0,76μm Au

w w w. m i l l - m a x . c o m



516-922-6000
