MNI-10-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> MNI-10-8

MNI-10-8: Descriptionwasher shoulder #10 nyl; Categoryaccessories; File Size75KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

MNI-10-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MNI-10-8	-	-	View	Buy Now

MNI-10-8 Overview

washer shoulder #10 nyl

MNI-10-8 Parametric

Parameter Name	Attribute value
Datasheets
MNI Series
MNI Series Catalog Page
Product Training Modules
Circuit Board Hardware
Engineering Technology
Injection Molding and Plastics
Plastic Materials

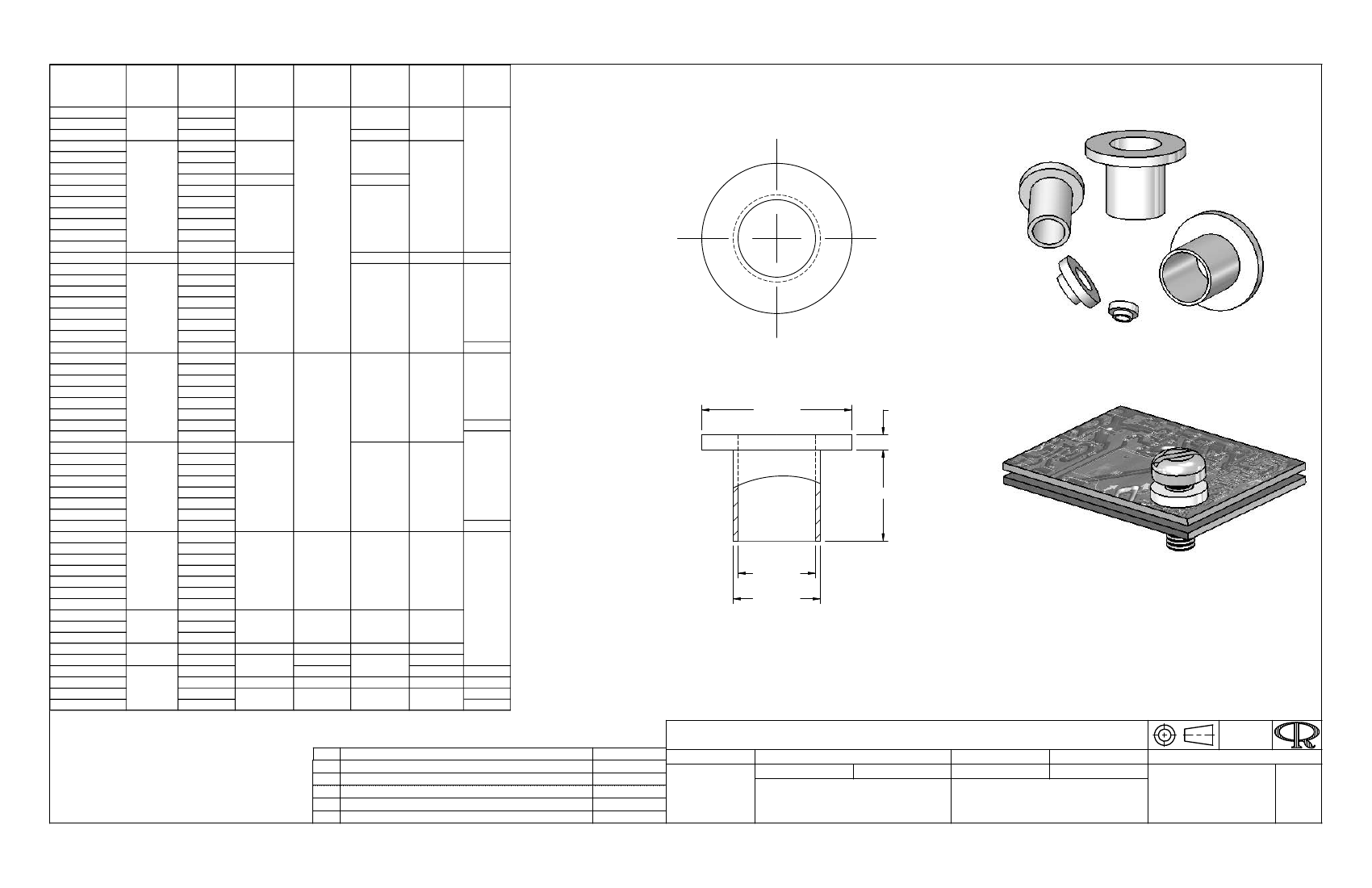

Catalog Drawings
MNI Series Insulator Side
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Washers - Bushing, Shoulde
Thread/Screw/Hole Size	#10
Diameter - Inside	0.200" (5.08mm)
Diameter - Outside	0.399" (10.13mm)
Diameter - Shoulde	0.260" (6.60mm)
Thickness - Overall	0.188" (4.78mm) 3/16"
Length - Below Head	0.125" (3.18mm) 1/8"
Material	Nyl
Other Names	MNI #10-8MNI#10-8RP367RP367-ND

Preview

Download Datasheet

View All

Mat'l: UL94 V2

Nylon 6/6

Color: Natural

MNI-2-2

MNI-2-4

MNI-2-6

MNI-4-2

MNI-4-3

MNI-4-4

MNI-4-5

MNI-4-6

MNI-4-8

MNI-4-10

MNI-4-12

MNI-4-16

MNI-4-24

MNI-5-3

MNI-6-2

MNI-6-4

MNI-6-6

MNI-6-8

MNI-6-12

MNI-6-16

MNI-6-24

MNI-6-32

MNI-8-2

MNI-8-4

MNI-8-6

MNI-8-8

MNI-8-12

MNI-8-16

MNI-8-24

MNI-8-32

MNI-10-2

MNI-10-4

MNI-10-6

MNI-10-8

MNI-10-12

MNI-10-16

MNI-10-24

MNI-10-32

MNI1/4-2

MNI1/4-4

MNI1/4-6

MNI1/4-12

MNI1/4-16

MNI1/4-24

MNI1/4-32

MNI5/16-6

MNI5/16-12

MNI5/16-16

MNI-M2.5-1.3

MNI-M2.5-3.6

MNIM3-1.0

MNIM3-1.3

MNI M3-2.5

MNIM3-3.5

Screw

Size

"L" ± .015

(0.38)

.031 (0.8)

.063 (1.6)

.093 (2.4)

.031 (0.8)

.046 (1.2)

.063 (1.6)

.084 (2.1)

.093 (2.4)

.125 (3.2)

.156 (4)

.187 (4.7)

.250 (6.4)

.375 (9.5)

.051 (1.3)

.031 (0.8)

.063 (1.6)

.093 (2.4)

.125 (3.2)

.187 (4.7)

.250 (6.4)

.375 (9.5)

.500 (12.7)

.031 (0.8)

.063 (1.6)

.093 (2.4)

.125 (3.2)

.187 (4.7)

.250 (6.4)

.375 (9.5)

.500 (12.7)

.031 (0.8)

.063 (1.6)

.093 (2.4)

.125 (3.2)

.187 (4.7)

.250 (6.4)

.375 (9.5)

.500 (12.7)

.031 (0.8)

.063 (1.6)

.093 (2.4)

.187 (4.7)

.250 (6.4)

.375 (9.5)

.500 (12.7)

.093 (2.4)

.187 (4.7)

.250 (6.4)

.051 (1.3)

.142 (3.6)

.039 (1)

.051 (1.3)

.098 (2.5)

.137 (3.5)

"A" ± .007

(0.18)

"B" ± .007

(0.18)

"C" ± .005

(0.13)

.120 (3)

.118 (3)

"D" ± .005

(0.13)

Material

#2 (M2)

.181 (4.6)

.090 (2.3)

.235 (6)

.252 (6.4)

.145 (3.7)

.140 (3.6)

.115 (2.9)

RMS-01

#4 (M2.5)

.235 (6)

.047 (1.2)

.370 (9.4)

.145 (3.7)

#5 (M3)

.236 (6)

.128 (3.3)

RMS-48

#6 (M3.5)

.290 (7.4)

.170 (4.3)

.140 (3.6)

RMS-01

RMS-48

RMS-01

.344 (8.7)

.205 (5.2)

.173 (4.4)

#8 (M4)

DIA. "A"

RMS-48

.063 (1.6)

"B"

RMS-01

.399 (10.1)

.260 (6.6)

.200 (5.1)

#10 (M5)

"L"

RMS-48

1/4 (M6)

.513 (13)

.065 (1.7)

.312 (7.9)

.260 (6.6)

RMS-01

DIA. "D"

DIA. "C"

5/16 (M8)

M2.5

.620 (15.7)

.248 (6.3)

.280 (7.1)

.347 (8.8)

.280 (7.1)

.063 (1.6)

.047 (1.2)

.059 (1.5)

.039 (1)

.047 (1.2)

.039 (1)

.360 (9.1)

.138 (3.5)

.150 (3.8)

.236 (6)

.150 (3.8)

.320 (8.1)

.114

.110

.122

.126

(2.9)

(2.8)

(3.1)

(3.2)

.122 (3.1)

RMS-48

RMS-01

RMS-48

RMS-01

TITLE:

NOTES:

1. MATERIAL: NYLON 6/6 UL 94 V-2

- NYLON 4/6 UL 94 V-2 (RMS-109),

AVAILABLE BY SPECIAL ORDER ONLY.

TO ORDER ADD "-109" TO THE END OF PART NO.

2. COLOR: NATURAL

REV.

SEE CO 200773 FOR CHANGES

SEE CO 200581 FOR CHANGES

SEE CO 200403 FOR CHANGES

SEE CO 200276 FOR CHANGES

SEE ENGINEERING FOR REV A-O

DESCRIPTION

ENGR.

04.30.12

09/14/10

07/31/09

11/12/08

DATE

CREATED USING

SOLIDWORKS

MOLDED NYLON INSULATORS

FILE #: MNI

SHEET: 1 OF 1

RE:

SHEET SIZE: B

DWN: SM

DT: 10/01/04

APP: SM

CHKD: SJ

PART #

DWG IN

IN [MM]

FINAL

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

SEE TABLE

TYPE

(773) 539-4060
