MP-1-R03.5690MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> MP-1-R03.5690MHZ

MP-1-R03.5690MHZ: DescriptionParallel - Fundamental Quartz Crystal, 3.569MHz Nom, ROHS COMPLIANT PACKAGE-2; CategoryPassive components Crystal/resonator; File Size273KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

MP-1-R03.5690MHZ Overview

Parallel - Fundamental Quartz Crystal, 3.569MHz Nom, ROHS COMPLIANT PACKAGE-2

MP-1-R03.5690MHZ Parametric

Parameter Name	Attribute value
Maker	MtronPTI
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Other features	AT-CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	18 pF
Manufacturer's serial number	MP-1
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	3.569 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	140 Ω
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

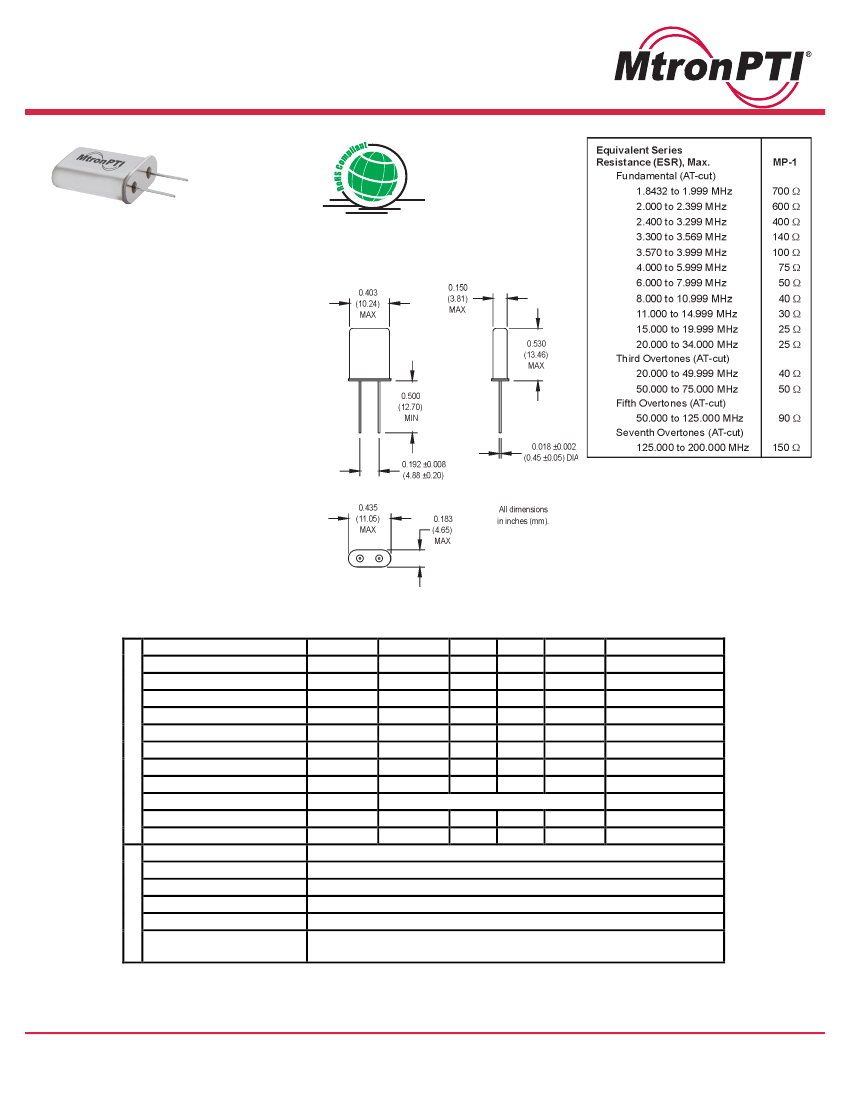

MP-1 Crystals

THIS PRODUCT IS NOT

RECOMMENDED FOR NEW DESIGNS.

Order by:

MP-1-R

(HC-49/U)

00.0000 MHz

(Frequency)

Custom P/N:

M1002Sxxx -

Contact factory for datasheet

Note 2

Note 3

Note 4

PARAMETER

Frequency Range

Frequency Tolerance

Frequency Stability

Operating Temperature

Storage Temperature

Aging Per Year

Load Capacitance

Shunt Capacitance

ESR

Drive Level

Insulation Resistance

Mechanical Shock

Vibration

Thermal Cycle

Hermeticity

Solderability

Max Wave Soldering

Conditions

Electrical Specifications

Symbol

F/F

F/F

Min.

1.8432

-30

-50

-10

-55

Typ.

±5

Max.

200

+30

+50

+70

+125

±5

Units

MHz

ppm

Condition/Notes

See Note 1

Environmental

W

500

M

MIL-STD-202, Method 213, C

(100 g’s)

MIL-STD-202, Method 201 & 204

(10 g’s from 10-2000 Hz)

MIL-STD-883, Method 1010, B

(-55°C to 125°C, 15 min dwell, 10 cycles)

-8

MIL-STD-202, Method 112

(

1 x 10 atmcc/sec. min.

)

Per EIAJ-STD-002

+260° for 10 secs. Max.

See ESR Table

100

1000

Note 1: Series resonant designated “SR” prefix (i.e., SRMP-1-R)

Note 2: Order by P/N 302-000-R-Frequency

Note 3: Order by P/N 309-000-R-Frequency. This is a series resonant part.

Note 4: Order by P/N 320-000-R-Frequency. This is a series resonant part.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-18-10

MP-1-R03.5690MHZ Related Products

	MP-1-R03.5690MHZ	SRMP-1-R3.5690MHZ	MP-1-R3.5690MHZ	SRMP-1-R03.5690MHZ	MP-1-R04.0000MHZ	MP-1-R2.4576MHZ	MP-1-R8.0000MHZ
Description	Parallel - Fundamental Quartz Crystal, 3.569MHz Nom, ROHS COMPLIANT PACKAGE-2	Series - Fundamental Quartz Crystal, 3.569MHz Nom, ROHS COMPLIANT PACKAGE-2	Parallel - Fundamental Quartz Crystal, 3.569MHz Nom, ROHS COMPLIANT PACKAGE-2	Series - Fundamental Quartz Crystal, 3.569MHz Nom, ROHS COMPLIANT PACKAGE-2	Parallel - Fundamental Quartz Crystal, 4MHz Nom, ROHS COMPLIANT PACKAGE-2	Parallel - Fundamental Quartz Crystal, 2.4576MHz Nom, ROHS COMPLIANT PACKAGE-2	Parallel - Fundamental Quartz Crystal, 8MHz Nom, ROHS COMPLIANT PACKAGE-2
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	unknown
Other features	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	50 µW	50 µW	50 µW	50 µW	50 µW	50 µW	50 µW
frequency stability	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%
frequency tolerance	30 ppm	30 ppm	30 ppm	30 ppm	30 ppm	30 ppm	30 ppm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	3.569 MHz	3.569 MHz	3.569 MHz	3.569 MHz	4 MHz	2.4576 MHz	8 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	140 Ω	140 Ω	140 Ω	140 Ω	75 Ω	400 Ω	40 Ω
surface mount	NO	NO	NO	NO	NO	NO	NO
Maker	MtronPTI	MtronPTI	MtronPTI	MtronPTI	-	MtronPTI	MtronPTI
load capacitance	18 pF	18 pF	18 pF	-	18 pF	18 pF	18 pF
Manufacturer's serial number	MP-1	-	MP-1	MP-1	MP-1	MP-1	MP-1
Base Number Matches	1	1	1	1	1	-	-
Is it lead-free?	-	Lead free	Lead free	-	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	-	-	conform to	conform to
JESD-609 code	-	e1	e1	-	-	e1	e1
Terminal surface	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
