Power line chokes
Current-compensated ring core triple chokes
440/ 250 V AC, 6 … 25 A, 1.3 … 6 mH
Series/Type:
Date:
B82747F
July 2012
a~í~=pÜÉÉí
EPCOS
AG 2012. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Power line chokes
Current-compensated ring core triple chokes
Rated voltage 440/ 250 V AC
Rated current 6 ... 25 A
Rated inductance 1.3 ... 6 mH
Construction
■
■
■
■
■
■
B82747F

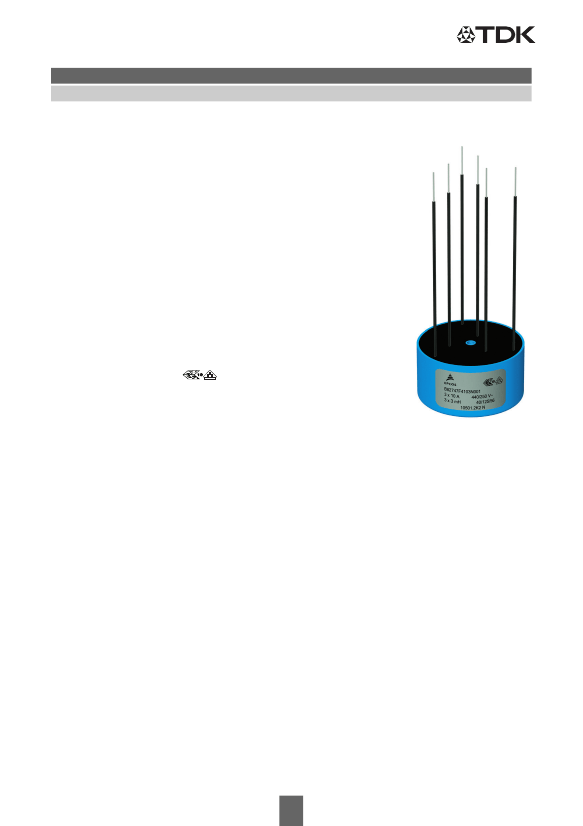

Current-compensated ring core triple choke
Ferrite core
Polycarbonate case (UL 94 V-0)
Polyurethane potting (UL 94 V-0)
For through-hole fixing
Sector winding
Features
■
> 1% stray inductance for symmetrical
■
■
■
■
interference suppression
High currents
Design complies with EN 60938-2 (VDE 0565-2)
ENEC (VDE) approval
RoHS-compatible
Applications
■
Suppression of common-mode interferences
■
Switch-mode power applications
Terminals
■
Ends of winding wires
■
Hot dip tinned
Marking
Manufacturer, approval marks, ordering code, rated current, rated voltage, rated inductance,
climatic category, date of manufacture (YYWWD.internal ID code), factory identification code
Delivery mode
Blister tray in cardboard box
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
07/12
Power line chokes
Current-compensated ring core triple chokes
Dimensional drawing and pin configuration
5.1±0.1
B82747F
2
3’
1’
3
4
_
0.2
39+1
110±5
ø73±1
2’
1
Hex 7+0.2
1
2
3
1’
2’
3’
20±5
IND0273-6-E
Dimensions in mm
Tolerances acc. ISO 2768-c
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
Inductance tolerance
Inductance decreaseL/ L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability (lead free)
440/250 V AC (50/ 60 Hz)
2500 V AC, 2 s (line/ line)
+40
C
or +60
C
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 10 kHz, 0.1 mA, +20 °C
Inductance is specified per winding.
30%
at +20 °C
< 20% at DC magnetic bias with I
R
, +20 °C
Measured with Agilent 4284A at 10 kHz, 5 mA, +20 °C,
typical value
Measured at +20 °C, typical values, specified per winding
Sn96.5Ag3.0Cu0.5: +(245
5°C,
(3
03)
s
Wetting of soldering area
95%
(to IEC 60028-2-58, test Ta)
40/ 125/ 56 (to IEC 60068-1)
–25 °C … +40 °C,
75%
RH
Approx. 350 g
EN 60938-2
Climatic category
Storage conditions (packaged)
Weight
Approvals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
07/12
Power line chokes
Current-compensated ring core triple chokes
Characteristics and ordering codes
I
R
A
6
10
16
25
25
L
R
mH
6.0
3.0
2.0
1.3
1.3
L
stray,typ
µH
145
64
38
22
22
R
typ
m
50
20
12
7.5
4.7
T
R
°C
60
60
60
40
60
Wire
Ø mm
1.0
1.4
1.6
1.8
2.24
B82747F4602N001
B82747F4103N001
B82747F4163N001
B82747F4253N020
B82747F4253N021
Ordering code
B82747F
Approvals
X
X
X
X
X
= approval granted
Impedance |Z| versus frequency f
measured with windings in parallel at +20 °C,
typical values
Current derating I
op
/ I
R
versus ambient temperature T
A
1.4
I
op
I
R
1.2
1.0
0.8
0.6
0.4
0.2
0
IND0242-K-E
T
R
= 40
˚
C
T
R
= 60
˚
C
0
20
40
60
80
100
˚
C 140
T
A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
07/12
Cautions and warnings
■
Please note the recommendations in our Inductors data book (latest edition) and in the data
sheets.
– Particular attention should be paid to the derating curves given there. Derating must be applied
in case the ambient temperature in the application exceeds the rated temperature of the
component.
– Ensure the operation temperature (which is the sum of the ambient temperature and the
temperature rise caused by losses / self-heating) of the component in the application does not
exceed the maximum value specified in the climatic category.
– The soldering conditions should also be observed. Temperatures quoted in relation to wave
soldering refer to the pin, not the housing.
■
If the components are to be washed varnished it is necessary to check whether the washing
varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,
or on glued joints. In particular, it is possible for washing varnish agent residues to have a
negative effect in the long-term on wire insulation.
Washing processes may damage the product due to the possible static or cyclic mechanical
loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts,
which might lead to reduced reliability or lifetime.
■
The following points must be observed if the components are potted in customer applications:
– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic
housing or core. This pressure can have a deleterious effect on electrical properties, and in
extreme cases can damage the core or plastic housing mechanically.
– It is necessary to check whether the potting material used attacks or destroys the wire
insulation, plastics or glue.
– The effect of the potting material can change the high-frequency behaviour of the components.
■
Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to
breakage of the core.
■
Even for customer-specific products, conclusive validation of the component in the circuit can
only be carried out by the customer.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
07/12
