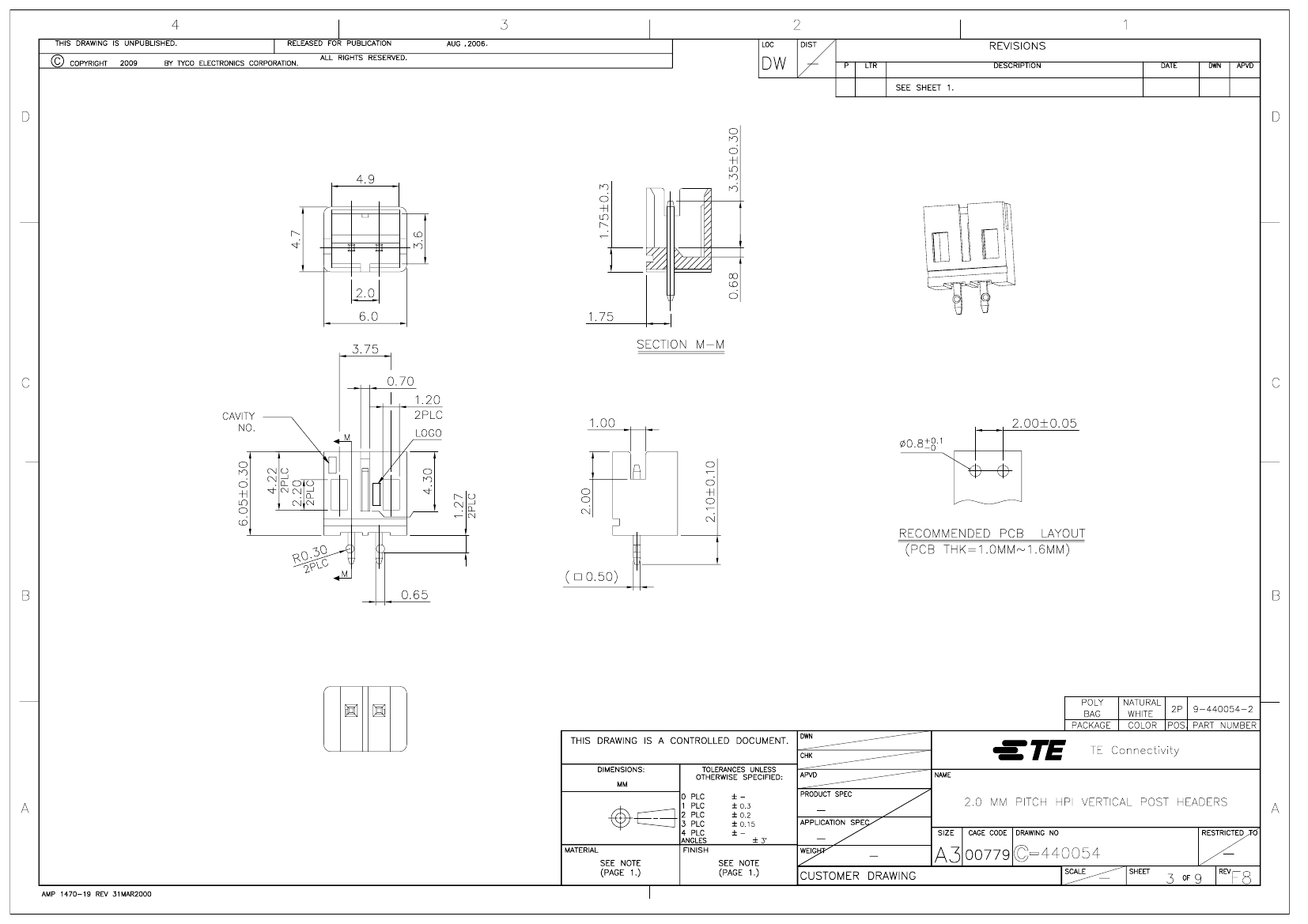

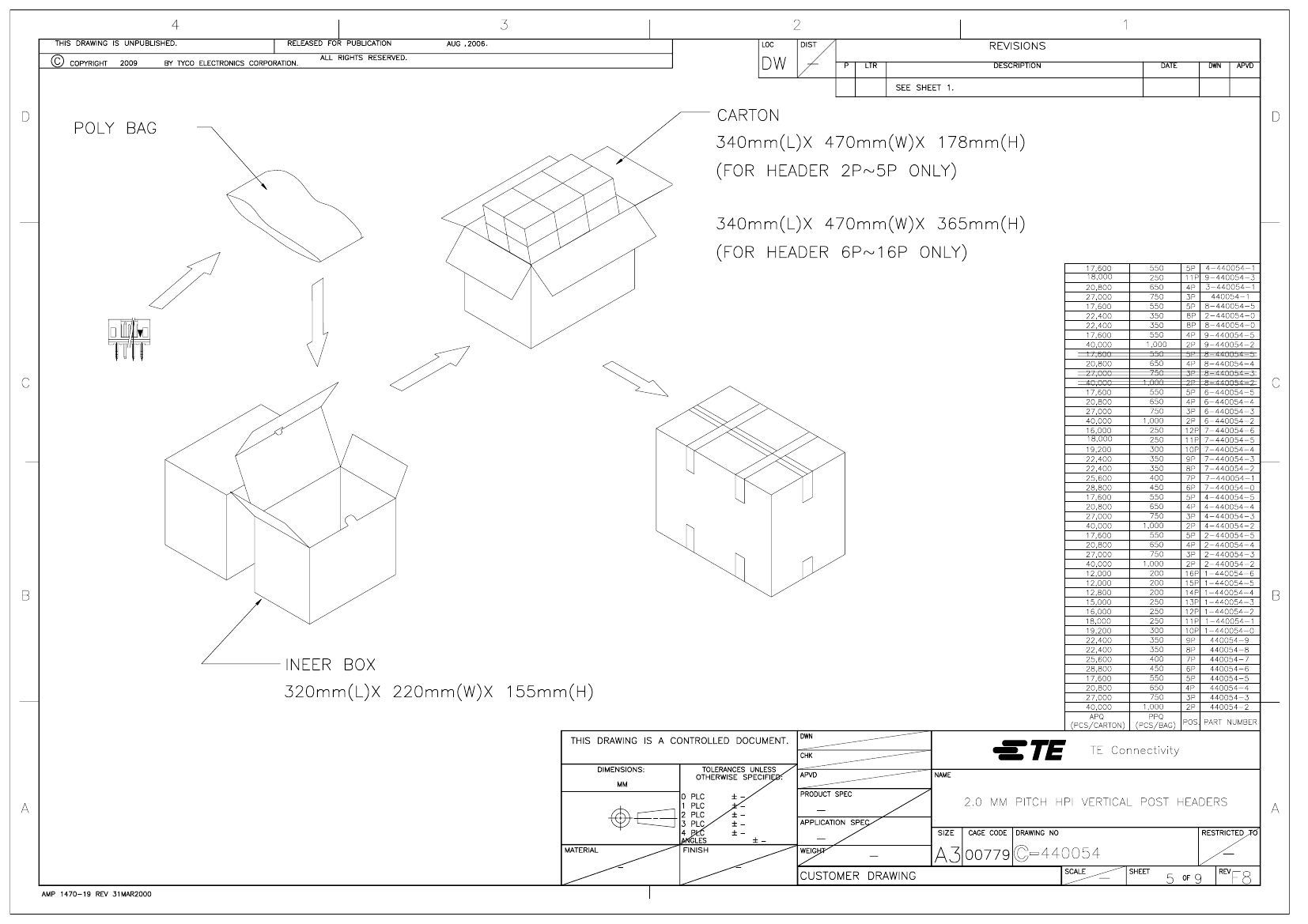

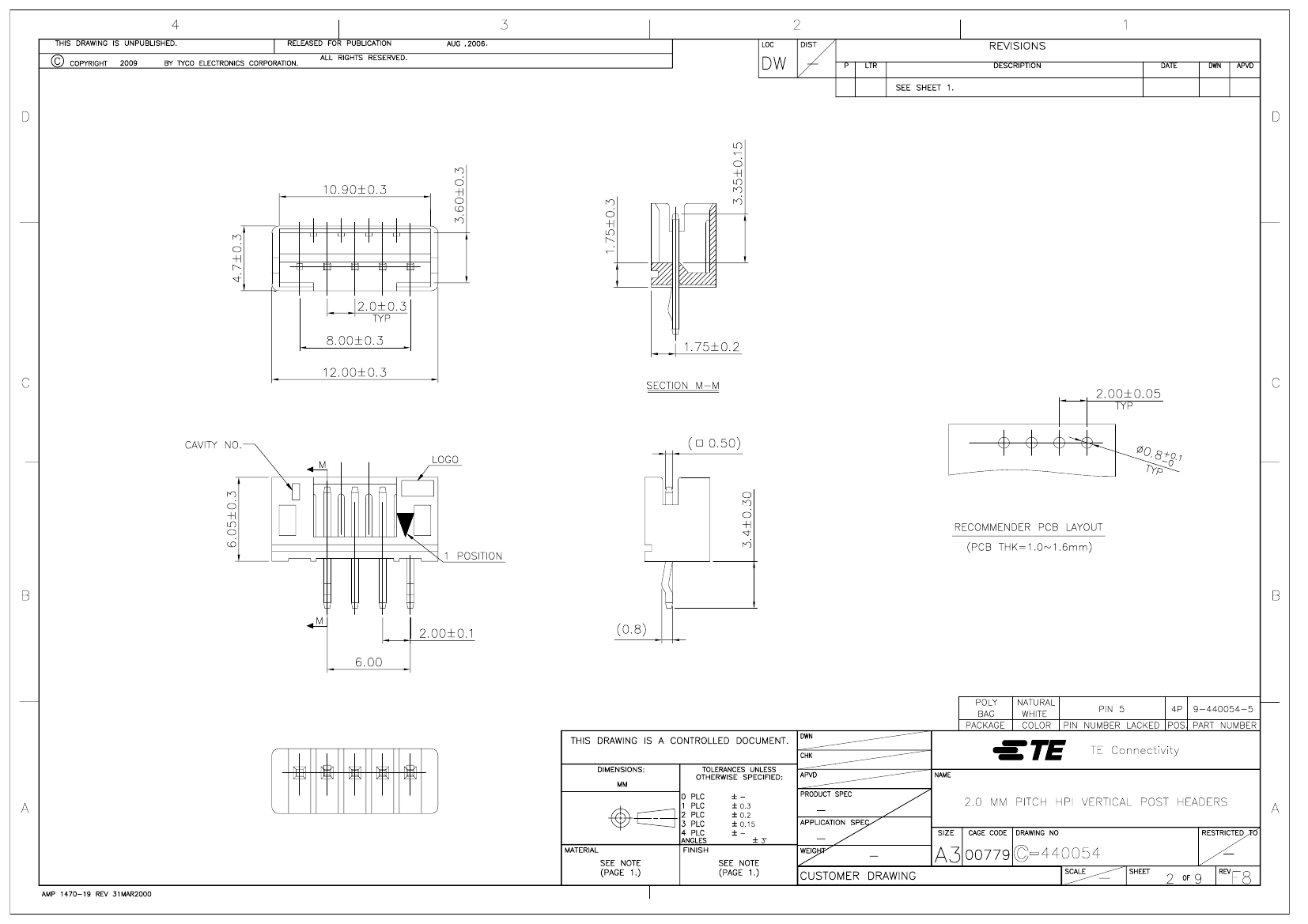

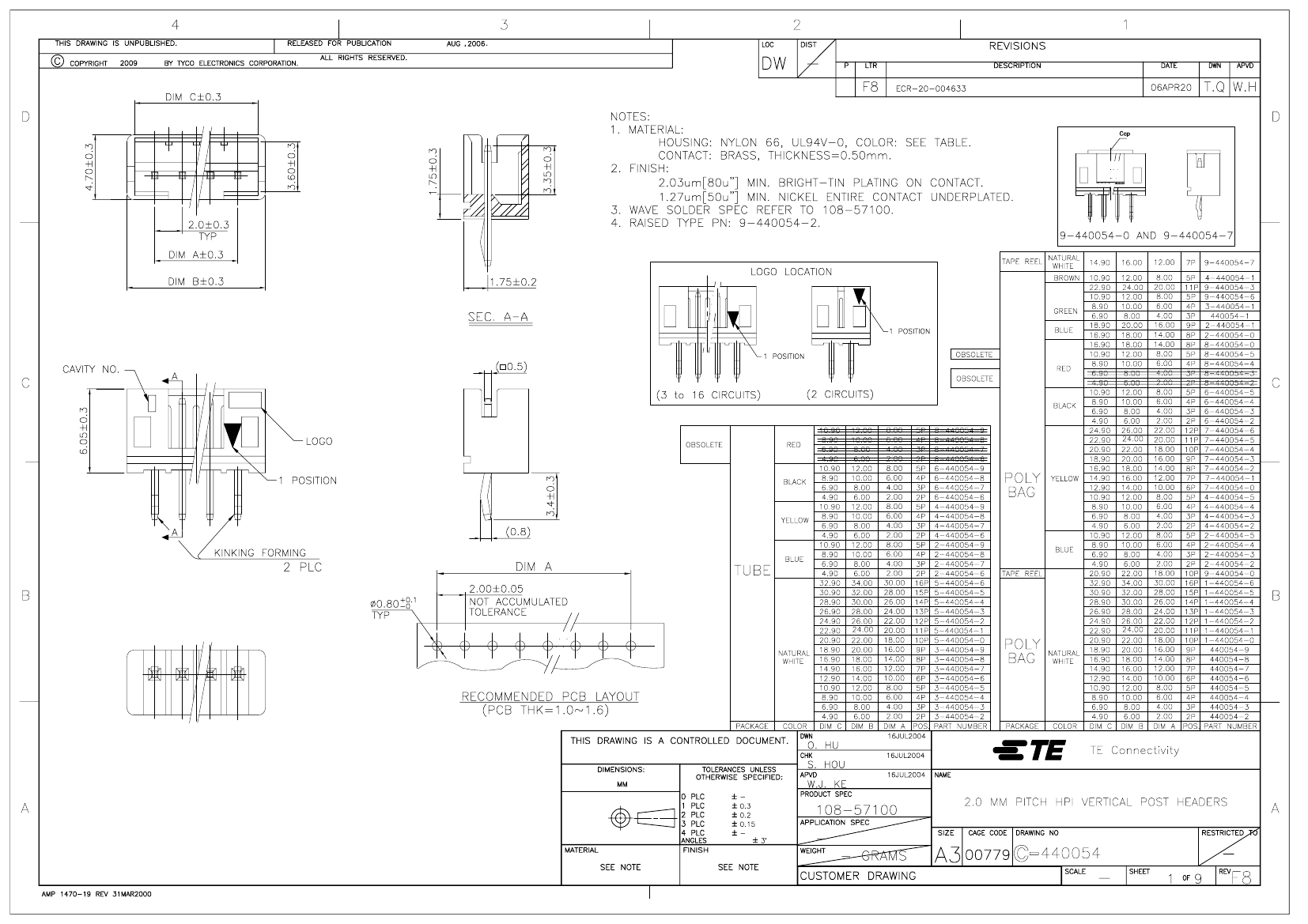

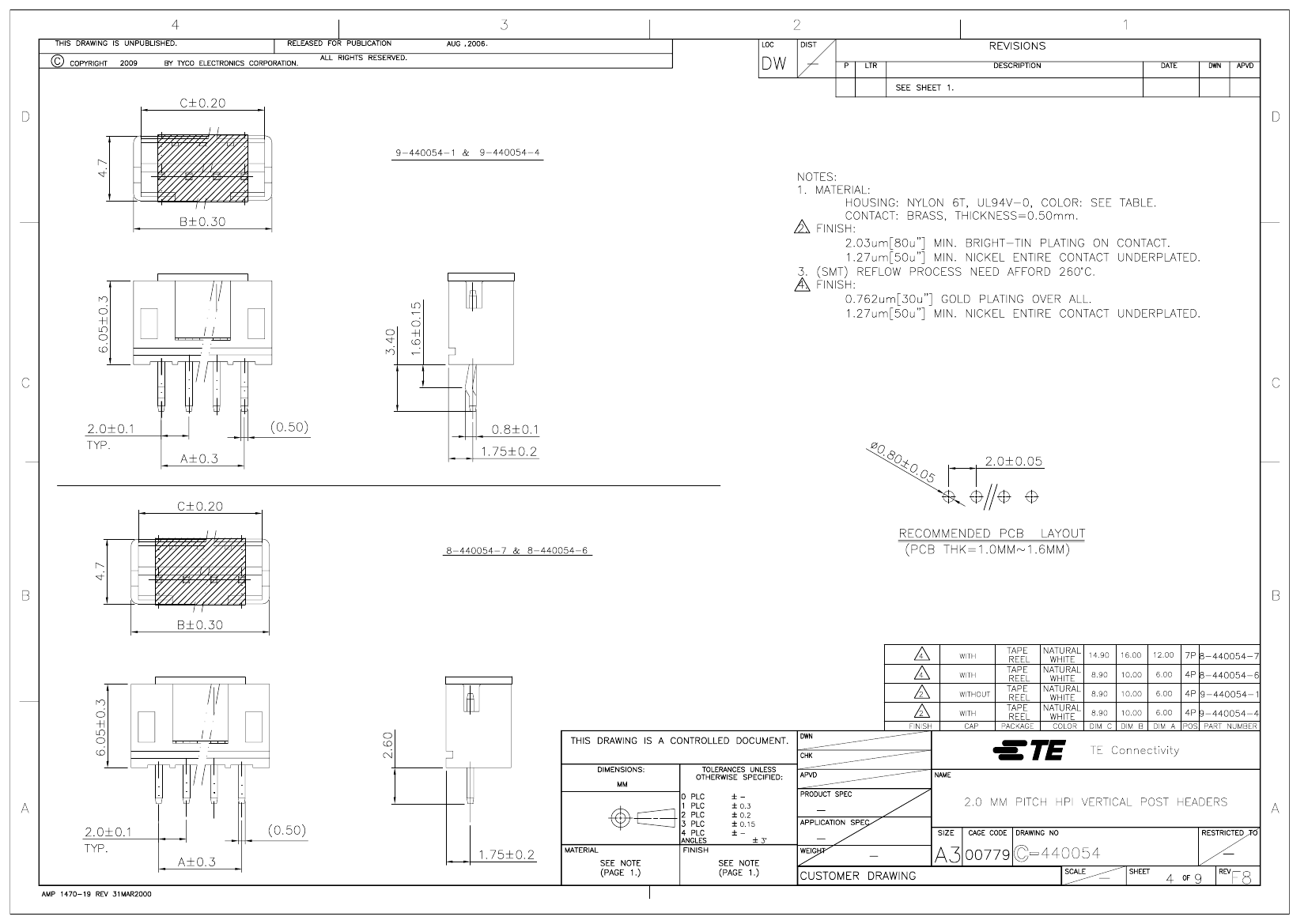

8-440054-2 |
8-440054-4 |
8-440054-3 |
| Description |
2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| Is it Rohs certified? |
conform to |
conform to |
conform to |
| Reach Compliance Code |
compli |
compliant |
compliant |
| Other features |
HIGH PERFORMANCE INTERCONNECT |
HIGH PERFORMANCE INTERCONNECT |
HIGH PERFORMANCE INTERCONNECT |
| body width |
0.185 inch |
0.185 inch |
0.185 inch |
| subject depth |
0.238 inch |
0.238 inch |
0.238 inch |
| body length |
0.236 inch |
0.394 inch |
0.315 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
TIN |
TIN |
TIN |
| Contact completed and terminated |
Tin (Sn) |
Tin (Sn) |
Tin (Sn) |
| Contact point gender |
MALE |
MALE |
MALE |
| Contact material |
BRASS |
BRASS |
BRASS |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
20 mΩ |
20 mΩ |
20 mΩ |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
NO |
| Dielectric withstand voltage |
1000VAC V |
1000VAC V |
1000VAC V |
| Durability |
30 Cycles |
30 Cycles |
30 Cycles |
| Filter function |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
| maximum insertion force |
15.1232 N |
19.5712 N |
17.792 N |
| Insulation resistance |
1000000000 Ω |
1000000000 Ω |
1000000000 Ω |
| Insulator color |
RED |
RED |
RED |
| insulator material |
NYLON |
NYLON |
NYLON |
| JESD-609 code |
e3 |
e3 |
e3 |
| MIL compliance |
NO |
NO |
NO |
| Plug contact pitch |
0.079 inch |
0.079 inch |
0.079 inch |
| Mixed contacts |
NO |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
| PCB row number |
1 |
1 |
1 |
| Number of rows loaded |
1 |
1 |
1 |
| Maximum operating temperature |
105 °C |
105 °C |
105 °C |
| Minimum operating temperature |
-25 °C |
-25 °C |
-25 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| polarization key |
POLARIZED HOUSING |
POLARIZED HOUSING |
POLARIZED HOUSING |
| Rated current (signal) |
3 A |
3 A |
3 A |
| Guideline |
UL |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.134 inch |
0.134 inch |
0.134 inch |
| Terminal pitch |
2 mm |
2 mm |
2 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
2 |
4 |
3 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
4.8928 N |
8.896 N |
6.672 N |
| Base Number Matches |
1 |
1 |
1 |
