APH-1-03-RASM-SD-GD10-CP: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size165KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-1-03-RASM-SD-GD10-CP Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

APH-1-03-RASM-SD-GD10-CP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166957624
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	9.1
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.118 inch
subject depth	0.228 inch
body length	0.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	1000 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
MIL compliance	NO
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	3

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulator material:

Insulation Resistance:

Withstanding:

Operating temp:

Processing temp:

C

D

3 amps

Brass

20 milliohms max.

Polyester, UL 94V-0

Nylon 6T

1000 megohms min.

600 VAC for 1 min.

-40ºC to +105ºC

230ºC for 30 sec.

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Series

Rows

Pos.

Type

Mating Length

Finish

Options

APH

X

XX

RASM

XX

Pin header, 1=Single row Single row 3-30 Right angle

SD=0.230”

SGXX=Duplex

[blank]=None

0.100” pitch 2=Dual rows Dual row 6-60 surface mount or custom

GDXX=Gold

PPL=Cap

XX=Flash if

TR=Tape & reel

blank,

PPT=Acetate tape

10, 15, 30µ” gold CP=Centering pin

TN=Tin

Drawing

Name

Date

Central Components Manufacturing

Approved Howard

08/10/99

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Checked Lizzy

08/10/99

APH-1-XX-RASM-XX-XX-XX

Drawn Tina

08/10/99 Part No.:

0.0 ± 0.35

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

E

F

G

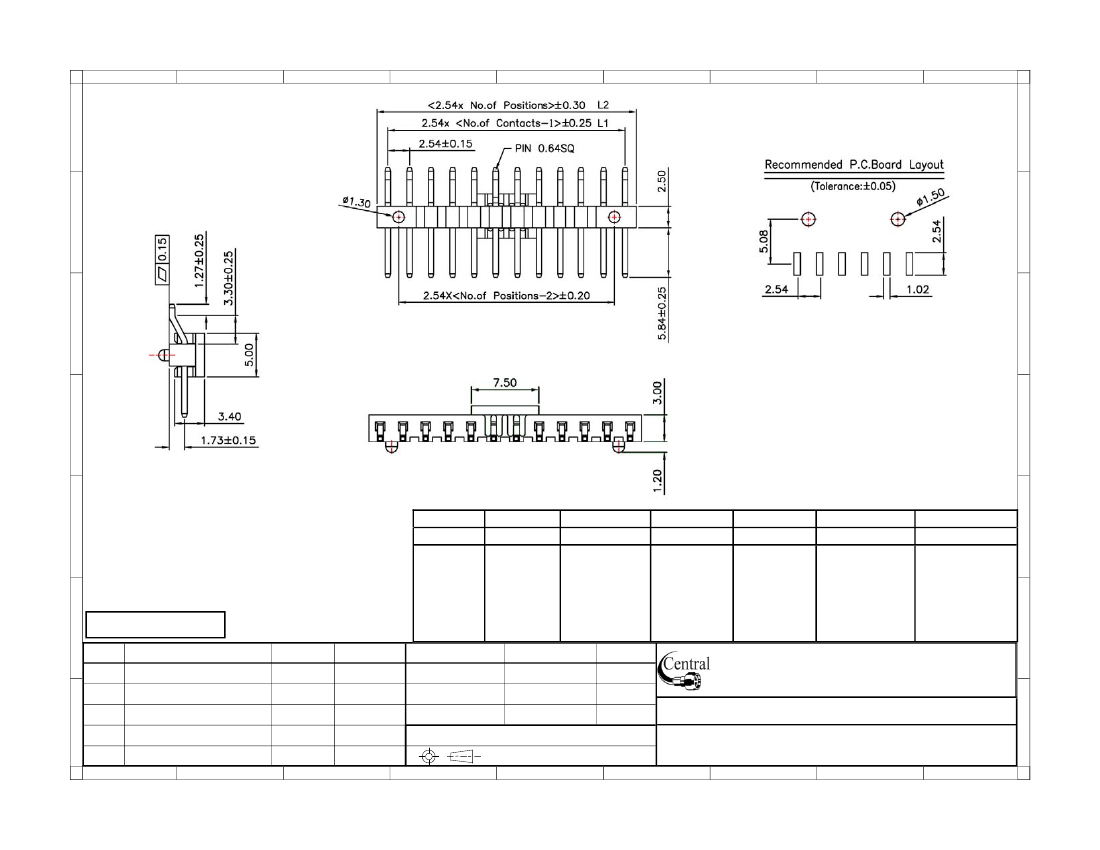

Description: 2.54 Pin Header Single Row Entry Side SMT Connector
