FSI-115-10-L-D-AD: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size530KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FSI-115-10-L-D-AD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FSI-115-10-L-D-AD	-	-	View	Buy Now

FSI-115-10-L-D-AD Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle, LEAD FREE

FSI-115-10-L-D-AD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	DUAL SIDE ALIGNMENT PIN
Board mount options	POSITIONING PIN
body width	0.355 inch
subject depth	0.394 inch
body length	0.621 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

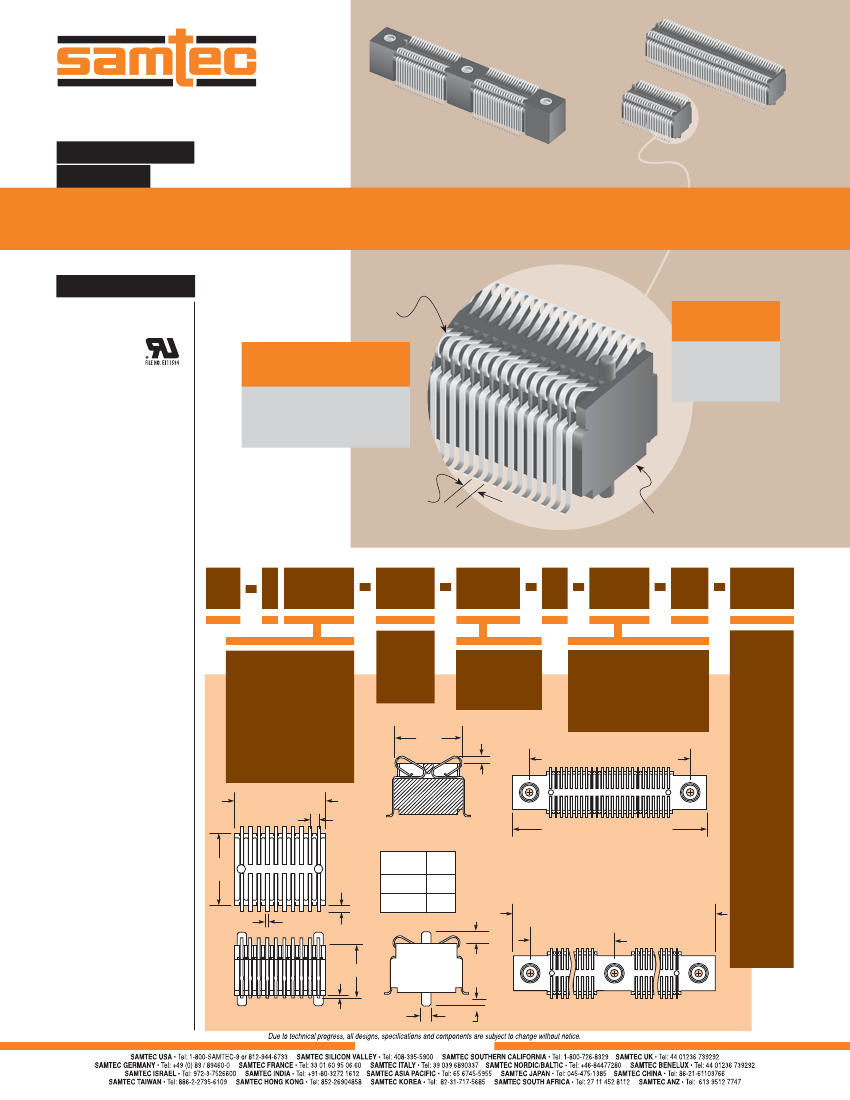

F-210

FSI–150–06–L–D–AD

FSI–140–10–L–D–E–AD

(1,00mm) .03937"

FSI SERIES

FSI–120–06–L–D–AD

ELEVATED ONE PIECE INTERFACES

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FSI

Insulator Material:

Liquid Crystal

Polymer

Contact Material:

BeCu

Current Rating:

1A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Choice of

board stacking

proﬁles

ALSO

AVAILABLE

APPLICATION

SPECIFIC OPTION

Metric insert, no alignment pin,

top side alignment pin and

bottom side alignment pin.

Call Samtec.

Low proﬁle

see SEI series.

(2,54mm) .100" pitch

see SIB series.

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (05-35)

(0,15mm) .006" max (40-50)

Compression Board:

Gold Pads required

(1,00mm)

.03937"

Short version

or optional

threaded inserts

FSI

PINS PER

ROW

BODY

HEIGHT

PLATING

OPTION

INSERT

OPTION

OTHER

OPTION

– 06

10, 20,

30, 40 & 50

(Screw Option)

= 6,00mm

–K

–L

= 10µ" (0,25µm)

Gold on contact,

Matte Tin on tail

Leave blank for Short Version

(No screw down

inserts or holes)

= (8,00mm)

.315" DIA

Polyimide

Film Pick &

Place Pad

(40 & 50

position with

threaded

insert option

only)

– 10

= 10,00mm

(8,22)

.324

05, 10, 15, 20,

25, 30, 35,

40, 45, 50

(Short Version)

(No. of positions x

(1,00) .03937) +

(0,76).030

–E

= #2-56 x 1/16" screw thread

(No. of positions x (1,00) .03937)

+ (7,24) .285

(0,89)

.035

(1,00)

.03937

–P

(No. of positions x (1,00) .03937)

+ (14,10) .555

Contact Detail

Insert Option (10, 20 & 30 pins/row)

(9,02)

.355

(0,64)

.025

TYP

BODY

HEIGHT

–06

–10

(6,00)

.236

(10,00)

.394

= Plastic Pick

& Place Pad

(5,08mm)

.200" x

(12,45mm)

.490"

(40 & 50

not available

with –E

or –M)

(0,36) .014

Note:

Applications requiring

40-50 positions without

threaded inserts, please

contact Samtec Interconnect

Processing Group.

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

Short Version

(No. of positions x (1,00) .03937) + (22,09) .870

(No. of positions/2

x (1,00) .03937)

+ (7,62) .300

(1,40)

.055

–TR

= Tape &

Reel

Packaging

(0,15)

.006

(1,07)

.042

DIA

(1,40)

.055

Insert Option (40 & 50 pins/row)
