SPECIFICATIONS::
Voltage rating:
Current rating:
Contact material:
Contact plating:
Contact resistance:
Shell material:
Shell plating:
Insulator:
Insulator resistance:
Withstanding:
Durability:
Operating temperature:
B
250 VAC max.
1 amp max.
Pin (male), brass
Socket (female), phosphor bronze
Gold over nickel
10 milliohms max.
Steel
Tin or chromate
PBT +glass fiber, UL94V-0
5,000 megohms min.
1,000VAC for 1 min. RMS
500 insertion/separation cycles min.
-55°C to +125°
A
B
C
C
D
Pins
9
15
25
37
50
Series
DSXX
D-sub connector
XX=Pins
09, 15, 25, 37, 50
Type
XR
MR=Male
FR=Female
PCB Mounting Options
X (diagrams pg. 2)
1=Wraparound ground straps with screw holes
2=Top side only ground straps with #4-40 threaded
screw holes
3=Forked board locks
4=Top side only ground straps with screw holes

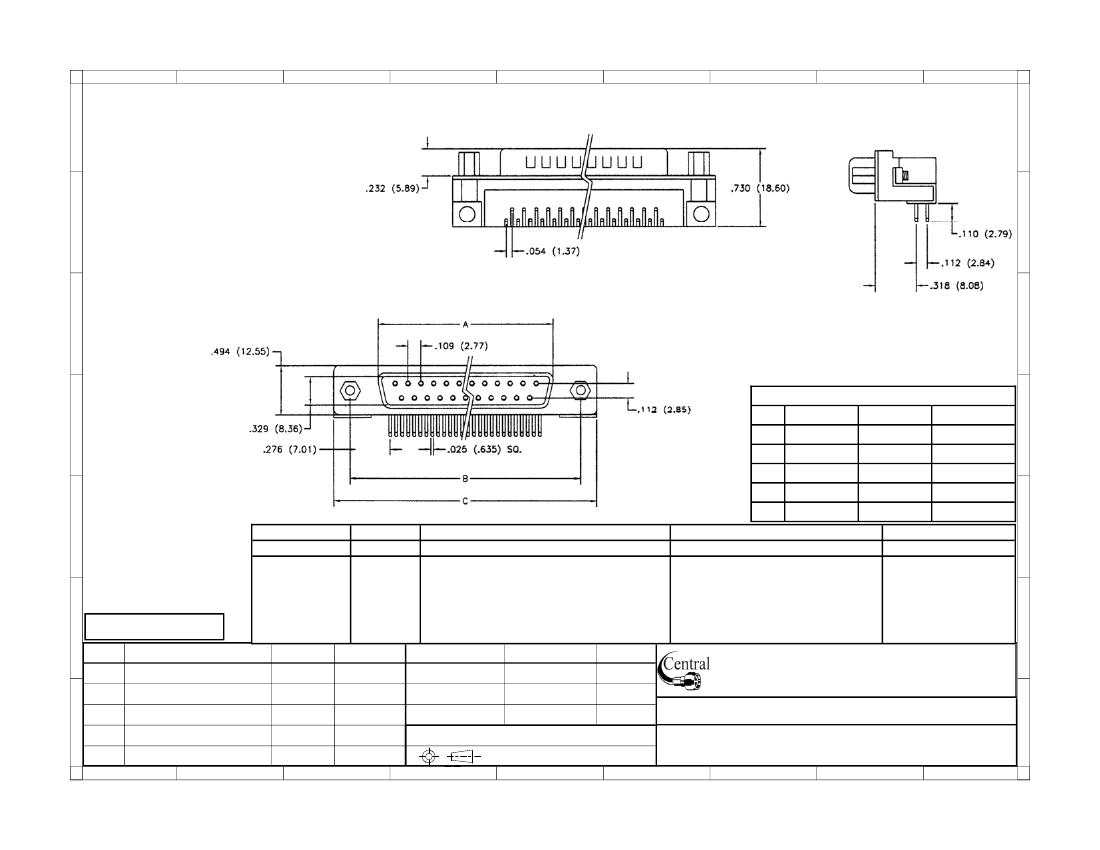

Dimensions mm (in)
A
B
16.34 (0.666) 24.99 (0.984)
24.70 (0.994) 33.32 (1.312)
38.40 (4.534) 47.04 (1.852)
54.80 (2.182) 63.50 (2.500)
52.20 (2.055) 61.00 (2.402)
C
30.80 (1.213)
39.15 (1.541)
53.00 (2.088)
69.30 (2.729)
67.00 (2.638)
D
E
F
RoHS compliant
Rev.
Description
A Corrected description
Date
Approved
11/10/06 Tom
Mounting/Face Options
X (diagrams pg. 3)
A=#4-40 fixed jack screws
B=#4-40 threaded inserts
C=#4-40 threaded inserts w/ jackscrews
installed
CN=Inserts w/ Jackscrew Separate
D=.120” non-threaded through holes
Special Options
XX
[blank]=None
30GD=30µ” gold plate
FF=Ferrite filter installed
E
F
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
DSXX-MR-X-X
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: D-subminiature connector, 0.318” pitch, right angle,
male, PCB mount
G
1
2
3
4
1
2
3
4
5
6
7
8
9
A

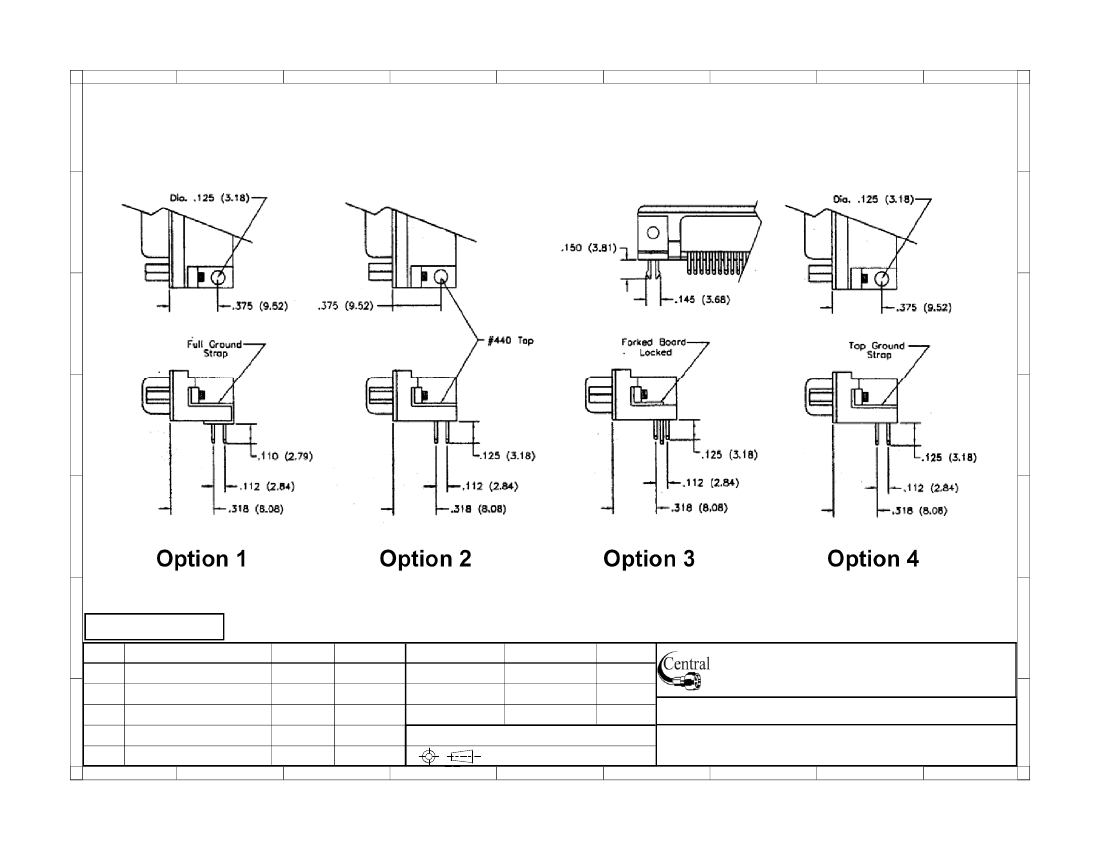

PC Board Mounting Options
A
B
B
C
C
D
D
E
E
F
RoHS compliant
Rev.
Description
A Corrected description
Date
Approved
11/10/06 Tom
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
DSXX-MR-X-X
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: D-subminiature connector, 0.318” pitch, right angle,
male, PCB mount
G
1
2
3
4
5
6
7
8
9
A

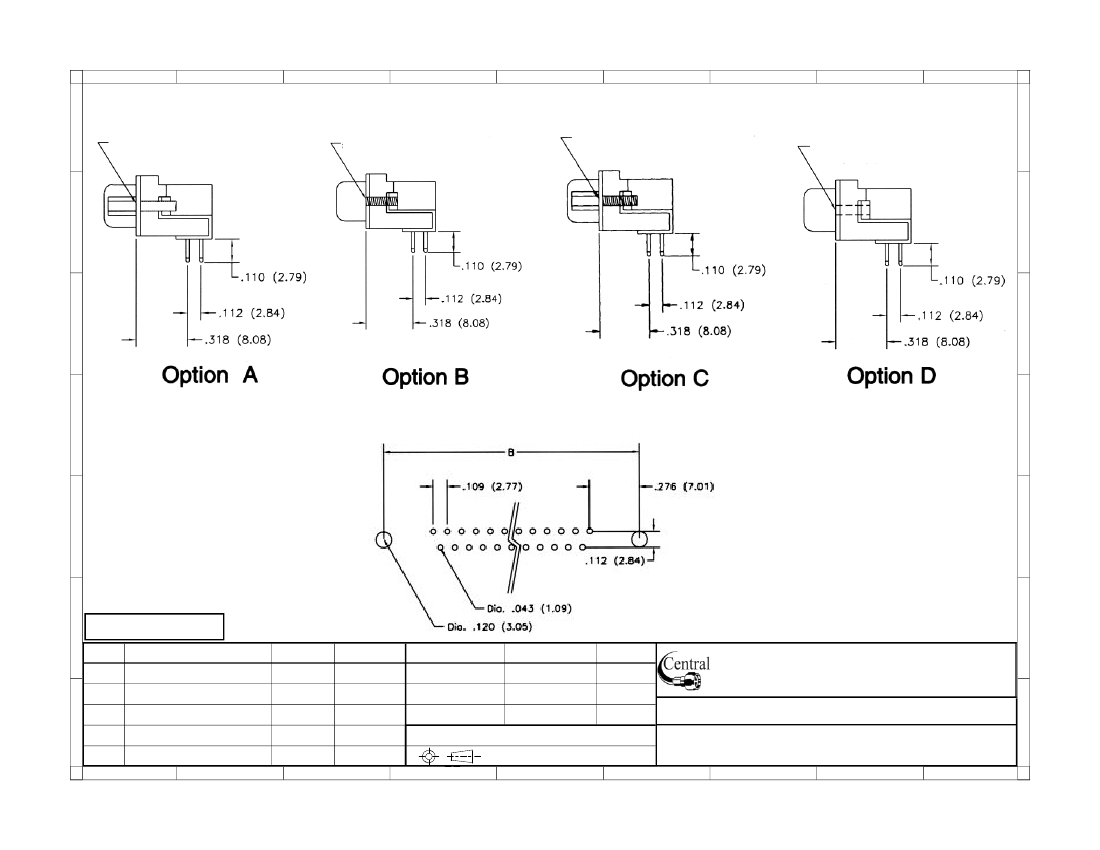

Mounting/Face Options
Fixed #4-40
Fixed jackscrew
Jackscrew
#4-40 Threaded
Insert
Removable #4-40
Jackscrew
.120” Diameter
Thru-hole
A
B
B
C
C
D
PC Board Options
D
E
E
F
RoHS compliant
Rev.
Description
A Corrected description
Date
Approved
11/10/06 Tom
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
DSXX-MR-X-X
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: D-subminiature connector, 0.318” pitch, right angle,
male, PCB mount
G
