DS37-MMT-A-YC-04 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DS37-MMT-A-YC-04

DS37-MMT-A-YC-04: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DS37-MMT-A-YC-04 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DS37-MMT-A-YC-04 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304484068
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.496 inch
subject depth	0.272 inch
body length	2.728 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-50 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.189 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Shell material:

Shell plating:

Jack screw material:

Jack screw plating:

Board lock material:

Board lock plating:

Withstanding:

Operating temperature:

5 amps

Brass, machined pin

Gold flash

15 milliohms max.

PBT + glass fiber, UL94V-0

1000 megohms min.

Steel

Tin or zinc

Brass

Nickel

Brass

Tin or nickel

500VAC for 1 min

-50°C to +105°C

Series

DSXX

09, 15, 25, 37, 50

Type

MMT

FMT=Female

MMT=Male

RoHS compliant

Rev.

Description

Date

Approved

Tail

Shell Plating

Mounting

A=Standard tail TN=Tin

01=4-40 Threaded Jackscrews

for .062” to .125” YC=Yellow chromate 02=.118 Through Hole

PCB

03=Riveted Clinch Nut

04=Clinch Nut and Jackscrews

Date

08/10/99

08/10/99 Part No.:

Dimensions

Pos.

9 30.80 24.99 16.92

15 39.15 33.32 25.25

25 53.00 47.04 38.96

37 69.30 63.50 55.42

50 67.00 61.00 52.80

Options

30GD=30µ” gold flash

BK=Black insulator

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

DSXX-MMT-A-XX-05

0.00 ± 0.20 Angles ± 3’

UNIT: mm

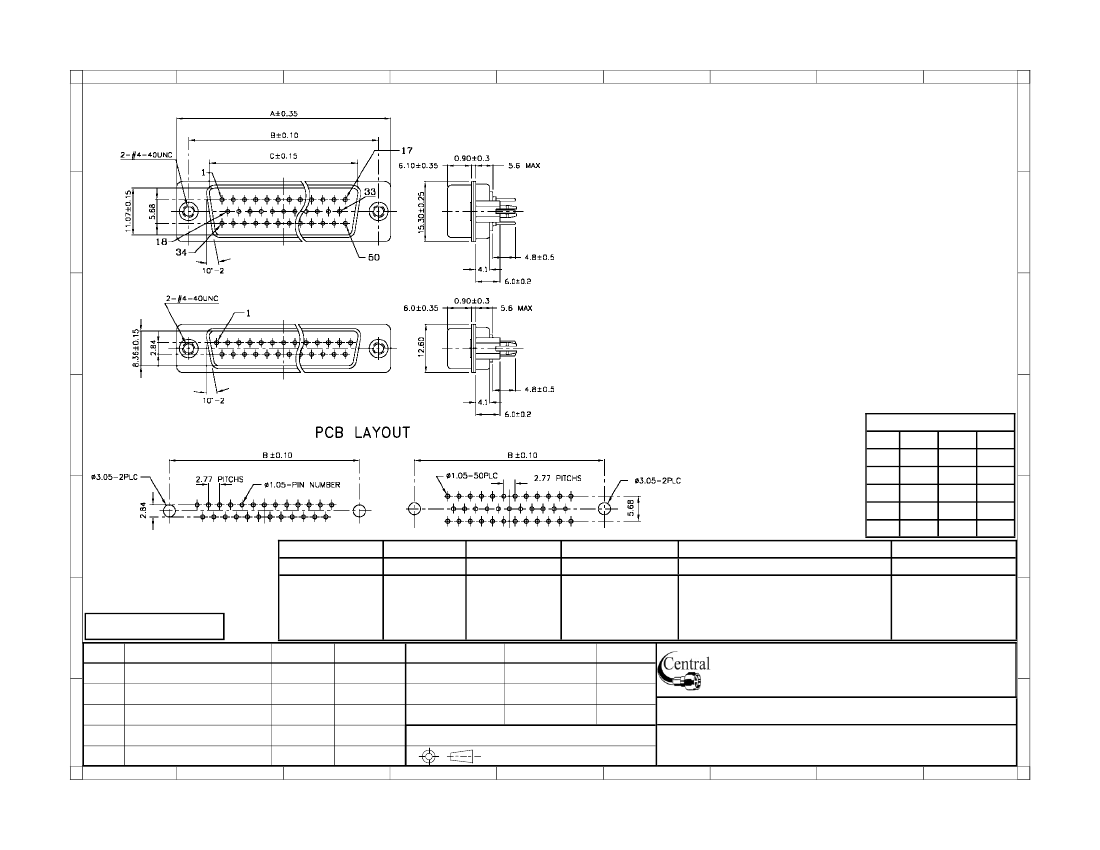

Description: Machined contact D-sub, male, straight PCB mount
