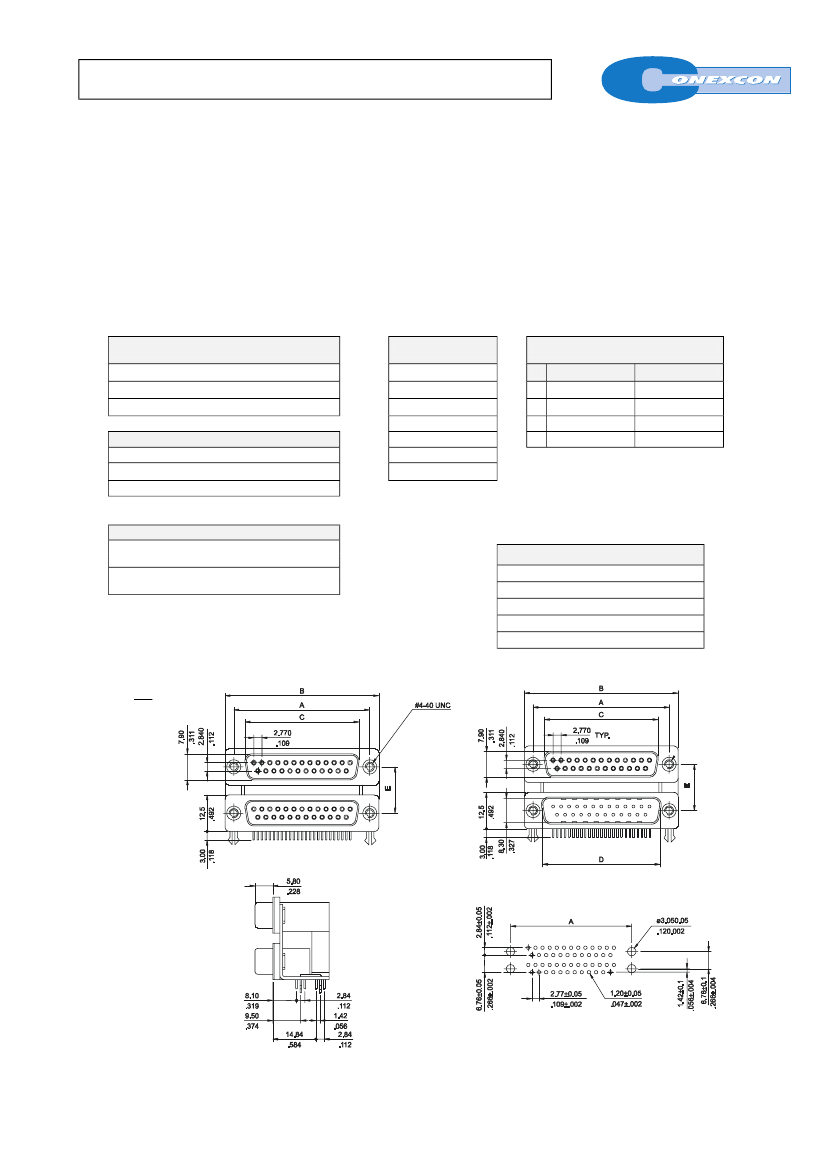

STACKED RIGHT ANGLE DIP SOLDER D-SUB
SERIES.
8091 SERIES
For PCB Solder.
Features
Right Angle DIP Solder D-Sub
!
!
!
!
!
!
Current rating: 3 A AC, DC
Voltage rating: 250V AC, DC
Temperature rating: –25ºC to 105ºC
Contact resistance: 20 mΩ min.
Insulation resistance: 5000 MΩ min.
Withstanding voltage: 1000 V AC/min.
Ordering and Dimensional Information
!
!
!
!
!
!
Different pin configuration
Meets ATX specification and requirements
Easy to use. High reliability
Insulator Material: Glass filled polyester UL 94V-0
Contact Material: Phosphor bronze
Spring: Phosphor bronze
Dimensional Information
(T) Plating Options
(B) Circuit Size
1.
= 9 to 9 circuits
2.
= 15 to 15circuits
3.
= 25 to 25circuits
4.
= 9 to 25circuits
5.
= 25 to 9 circuits
6.
= 25 to 15 circuits
7.
= 37 to 37 circuits
1.
2.
3.
4.
(C) Connector Configuration
Upper con.
Receptacle
Plug
Receptacle
Plug
Inferior con.
Receptacle
Receptacle
Plug
Plug
T =
3.
Gold flash over 50µ nickel.
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
(D) Connector Body Height Option
D=1.
E = 15.88mm
D=2.
E = 19.05mm
D=3.
E = 22.86mm
8091 – T B C D E
Series
(E) Screw Lock Variations
C = 1.
Riveted ground hooks pre-loaded #4.40
UNC Hex screws (standard)
C = 0.
Riveted ground hooks with #4.40 UNC open
Ordering Information
#
#
#
#
#
T.
Plating Options
B.
Circuit Size
C.
Connector configuration
D.
Connector body height option
E.
Screw lock variations
Unit:
mm.
Inch.
Recommended Hole Pattern
CONEXCON
Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

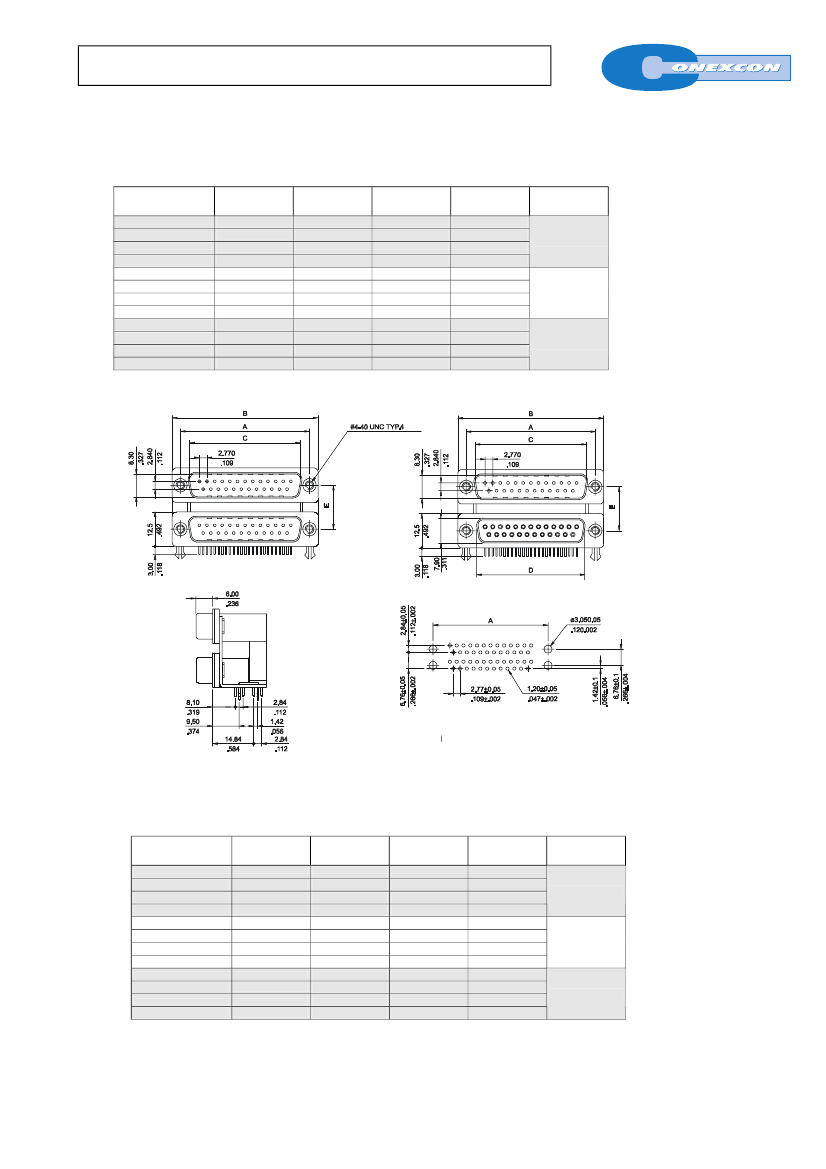

STACKED RIGHT ANGLE DIP SOLDER D-SUB
8091
SERIES
For PCB Solder.
SERIES.
!
Plug to Plug and Plug to socket
Part Number
8091 –
T1*11
(9V)
8091 –
T2*11
(15V)
8091 –
T3*11
(25V)
8091 –
T7*11
(37V)
8091 –
T1*21
(9V)
8091 –
T2*21
(15V)
8091 –
T3*21
(25V)
8091 –
T7*21
(37V)
8091 –
T1*31
(9V)
8091 –
T2*31
(15V)
8091 –
T3*31
(25V)
8091 –
T7*31
(37V)
Dim. A
24.99 (0.984)
33.32 (1.312)
47.04 (1.852)
63.50 (2.500)
25.00 (0.984)
33.32 (1.312)
47.04 (1.852)
63.50 (2.500)
24.99 (0.984)
33.32 (1.312)
47.04 (1.852)
63.50 (2.500)
Dim. B
30.80 (1.213)
39.10 (1.539)
53.00 (2.087)
69.40 (2.732)
30.80 (1.213)
39.10 (1.539)
53.00 (2.087)
69.40 (2.732)
30.80 (1.213)
39.10 (1.539)
53.00 (2.087)
69.40 (2.732)
Dim. C
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
Dim. D
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
22.860 (0.900)
19.050 (0.750)
15.880 (0.625)
Dim. E
Right Angle DIP Solder D-Sub
Recommended Hole Pattern
!
Socket to Socket and Socket to plug
Part Number
8091 –
T1*11
(9V)
8091 –
T2*11
(15V)
8091 –
T3*11
(25V)
8091 –
T7*11
(37V)
8091 –
T1*21
(9V)
8091 –
T2*21
(15V)
8091 –
T3*21
(25V)
8091 –
T7*21
(37V)
8091 –
T1*31
(9V)
8091 –
T2*31
(15V)
8091 –
T3*31
(25V)
8091 –
T7*31
(37V)
Dim. A
25.00 (0.984)
33.32 (1.312)
47.04 (1.852)
63.50 (2.500)
25.00 (0.984)
33.32 (1.312)
47.04 (1.852)
63.50 (2.500)
24.99 (0.984)
33.32 (1.312)
47.04 (1.852)
63.50 (2.500)
Dim. B
30.80 (1.213)
39.10 (1.539)
53.00 (2.087)
69.40 (2.732)
30.80 (1.213)
39.10 (1.539)
53.00 (2.087)
69.40 (2.732)
30.80 (1.213)
39.10 (1.539)
53.00 (2.087)
69.40 (2.732)
Dim. C
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
16.92 (0.666)
25.25 (0.994)
38.96 (1.534)
55.42 (2.182)
Dim. D
16.33 (0.643)
24.66 (0.971)
38.38 (1.511)
54.80 (2.157)
16.33 (0.643)
24.66 (0.971)
38.38 (1.511)
54.80 (2.157)
16.33 (0.643)
24.66 (0.971)
38.38 (1.511)
54.80 (2.157)
22.860 (0.900)
19.050 (0.750)
15.880 (0.625)
Dim. E
CONEXCON
Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
