M74LS153P datasheet, PDF - EEWORLD Datasheet

M74LS153P: DescriptionMultiplexer, 2-Func, 4 Line Input, TTL, PDIP16; Categorylogic logic; File Size209KB，3 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

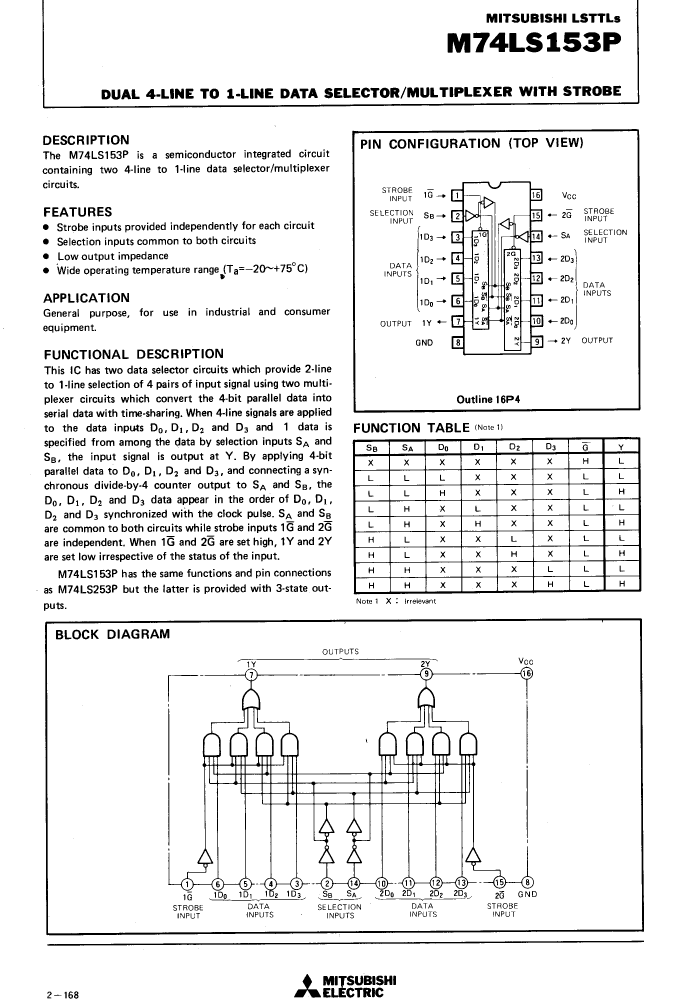

M74LS153P Overview

Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16

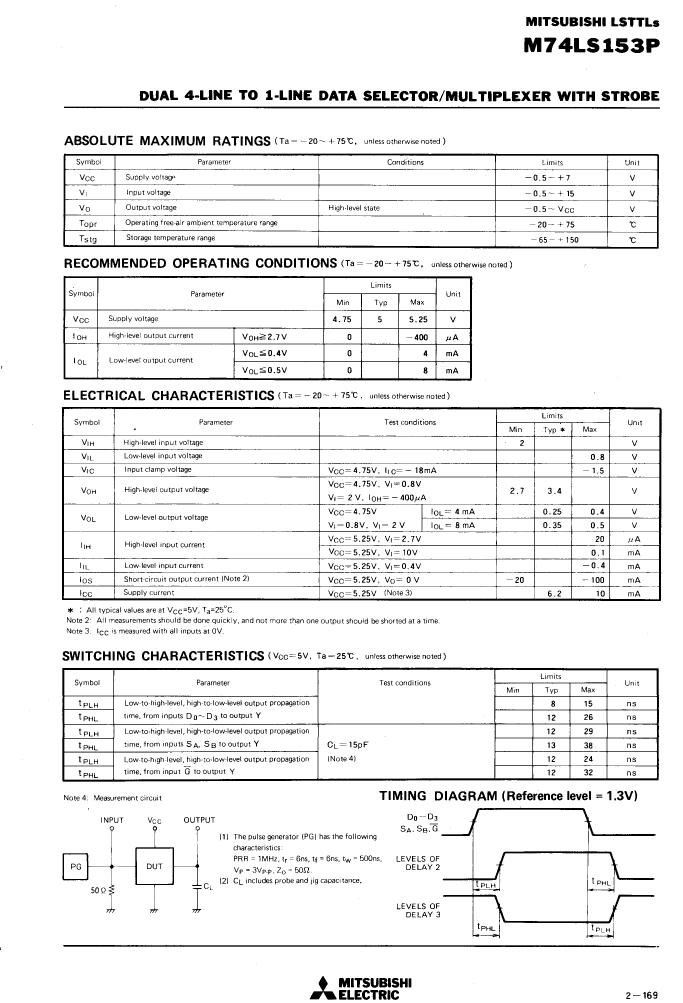

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.008 A
Number of functions	2
Number of entries	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C

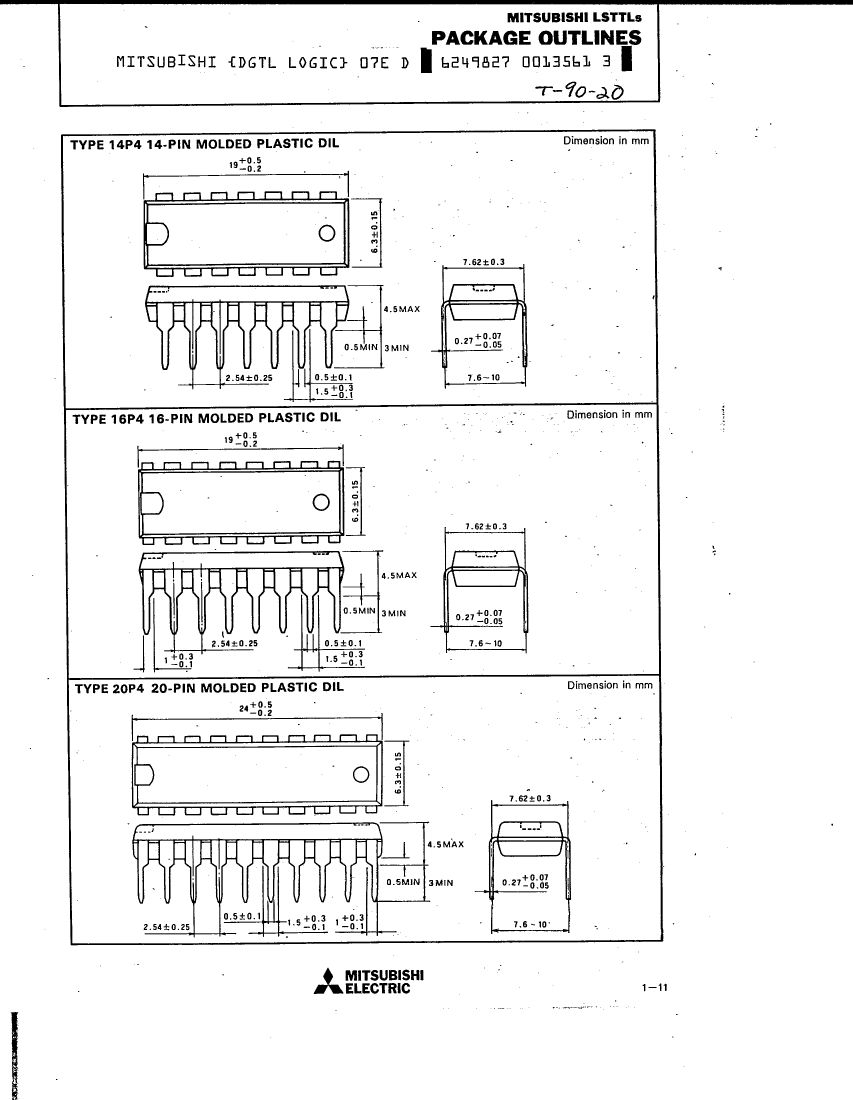

Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	10 mA
Prop。Delay @ Nom-Sup	38 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
