1252S-12TW-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1252S-12TW-L

Preview

1252S-12TW-L: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size178KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

1252S-12TW-L Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle

1252S-12TW-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305340069
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.134 inch
subject depth	0.169 inch
body length	0.64 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	1252
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.2446 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

H

ousing Terminal

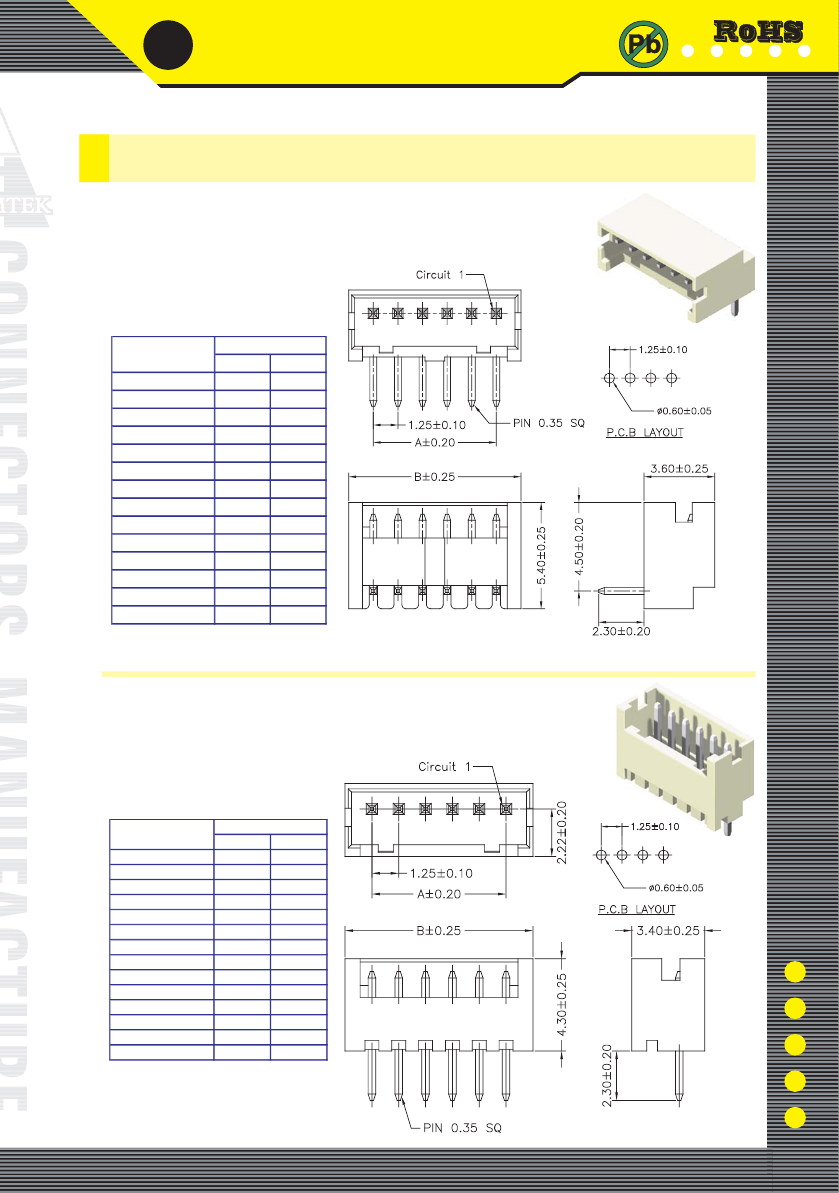

1.25mm Wafer Right Angle / Straight Type

Specifications

Current Rating: 1A AC,DC

Voltage Rating: 150V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 30m

Ω

Max

Insulation Resistance: 500M

Ω

Min

Withstanding Voltage: 500V AC/minute

Terminal: Brass / Tin Plated

Material:Nylon 66,UL94V-0

Part No.

1252R-02TW-L

1252R-03TW-L

1252R-04TW-L

1252R-05TW-L

1252R-06TW-L

1252R-07TW-L

1252R-08TW-L

1252R-09TW-L

1252R-10TW-L

1252R-11TW-L

1252R-12TW-L

1252R-13TW-L

1252R-14TW-L

1252R-15TW-L

Dimensions

A

B

1.25

3.75

2.50

5.00

3.75

6.25

5.00

7.50

6.25

8.75

7.50

10.00

8.75

11.25

10.00

12.50

11.25

13.75

12.50

15.00

13.75

16.25

15.00

17.50

16.25

18.75

17.50

20.00

Part No.:1252R-XXTW-L

Specifications

Current Rating: 1A AC,DC

Voltage Rating: 150V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 30m

Ω

Max

Insulation Resistance: 500M

Ω

Min

Withstanding Voltage: 500V AC/minute

Terminal: Brass / Tin Plated

Material:Nylon 66,UL94V-0

Part No.

1252S-02TW-L

1252S-03TW-L

1252S-04TW-L

1252S-05TW-L

1252S-06TW-L

1252S-07TW-L

1252S-08TW-L

1252S-09TW-L

1252S-10TW-L

1252S-11TW-L

1252S-12TW-L

1252S-13TW-L

1252S-14TW-L

1252S-15TW-L

Dimensions

A

B

1.25

3.75

2.50

5.00

3.75

6.25

5.00

7.50

6.25

8.75

7.50

10.00

8.75

11.25

10.00

12.50

11.25

13.75

12.50

15.00

13.75

16.25

15.00

17.50

16.25

18.75

17.50

20.00

Part No.:1252S-XXTW-L
