PS2BM27-219GBBOPR-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS2BM27-219GBBOPR-U

PS2BM27-219GBBOPR-U: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size197KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS2BM27-219GBBOPR-U Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

PS2BM27-219GBBOPR-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164595638
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.083 inch
body length	1.496 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1562 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	38

Preview

Download Datasheet

View All

emale Header 2.0mm

Material

Insulator:Polyester,UL 94V-0

◎

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

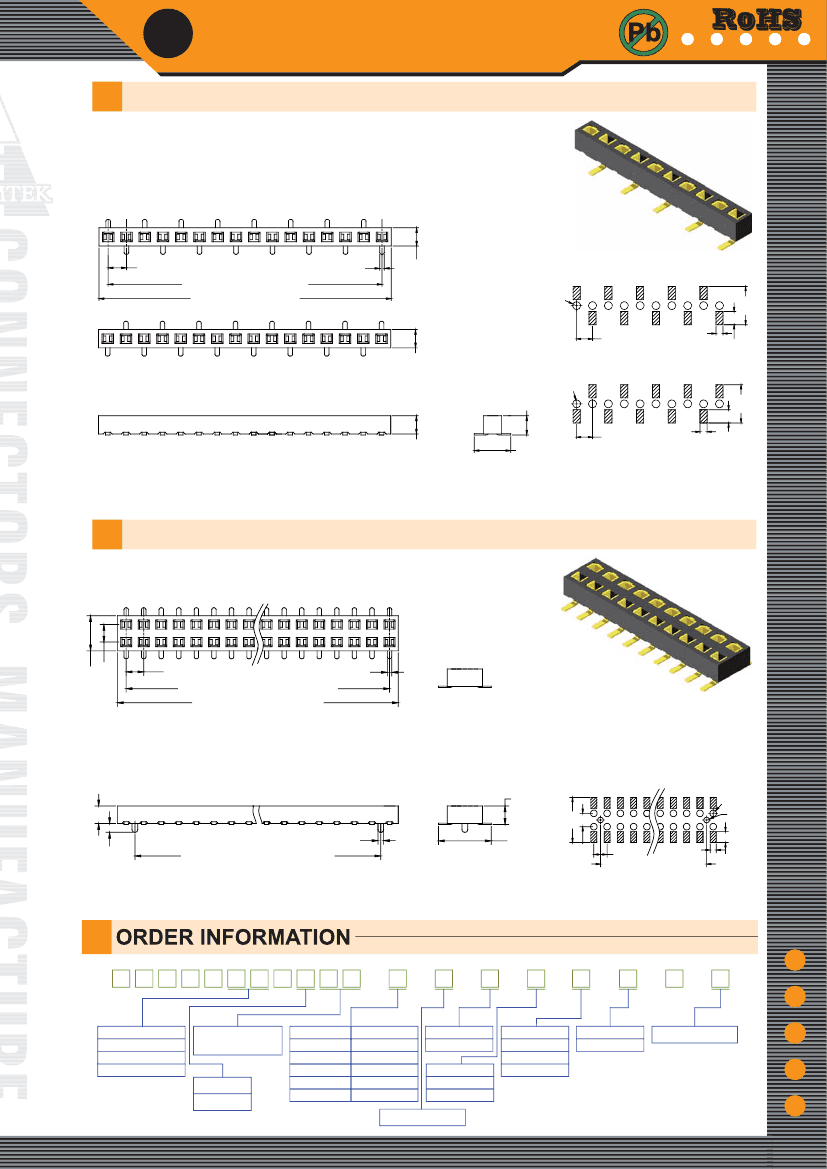

Female Header 2.0mm 1 Row H=2.0mm Bottom Entry SMT Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

2.00±0.10

2.00xNo. of Contacts-2.00±0.25

2.00xNo. of Contacts±0.30

PIN0.50x0.15

2.00±0.15

A TYPE

2.10±0.25

1.0

2.00±0.15

2.00

4.00±0.25

B TYPE

Recommended P.C.B Layout(Bottom Enter)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS2BM20-1XX-U

Female Header 2.0mm 2 Row H=2.0/2.7mm Bottom Entry SMT Type

4.00±0.15

2.00±0.10

PIN0.50x0.15

W/O POST

2.00 x No. of Contacts/2-2.00±0.25

2.00 x No. of Contacts±0.30

2.10±0.25

6.80

H±0.15

1.00

WITH POST

2.00 x No. of Contacts-4.00

Recommended P.C.B Layout(Bottom Enter)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS2BM20/27-2XX-U

P S 2 B M X X -

2 X X

◎

G :G o ld F lash

G A :G o ld 5 u "

G B :G o ld 1 0 u "

G C :G o ld 2 0 u "

◎

O :W /O C ap

C :W ith C ap

P.C.B Layout

◎

T :T ube

R :T ape & R eel

Insulator Height

20:Insulator Height H=2.0mm

27:Insulator Height H=2.7mm

(H=2.7mm For Dual Row Only)

N o. o f Co ntacts Per Row

(02~ 40)

S :S e le ctive

S A :S e le ctive 5u"

S B :S e le ctive 10u"

S C :S elective 20u"

S D :S elective 30u"

T E :T in 200u"

U :R oH S + N ylo n 6T

◎

A:A Type

B:B Type

(F or Single Row O nly)

◎

O :W /O P eg

P :W ith P eg

(F or D u al Row O nly)

1:Single Row

2:Dual Row

G D :G o ld 3 0 u "

T :T in P lated

◎

B :B la ck Insulator

◎:Standard

Recommended

www.amtek-co.com.tw

2-64

1.65

0.65

2.00 x No. of Contacts-4.00±0.25

2.00

6.00±0.25

2.00

0.89

0.85

1.65

0.89

4.80

1.65

2.00

0.89
