PS5S21-238SBBOR-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS5S21-238SBBOR-U

PS5S21-238SBBOR-U: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS5S21-238SBBOR-U Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Black Insulator, Plug

PS5S21-238SBBOR-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166187182
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.081 inch
body length	3.008 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e4
Manufacturer's serial number	PS5S212
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.039 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	76

Preview

Download Datasheet

View All

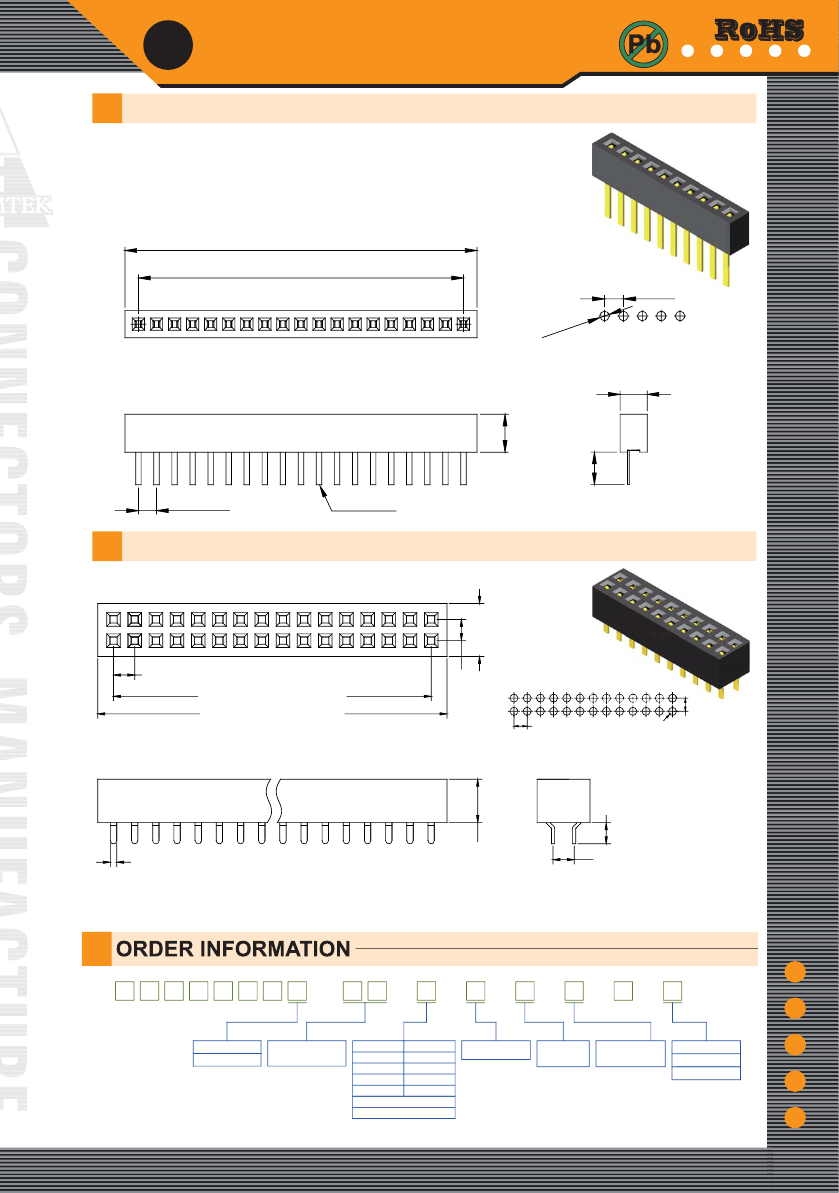

emale Header 1.0mm

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T or LCP

Terminal:Copper Alloy

Plating:Gold Plated

Female Header 1.0mm H=2.10mm Straight Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min

Contact Resistance:20mΩ Max

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Part No.:PS5S21-1XX-U

Female Header 1.0mm H=2.05mm Straight Type

Part No.:PS5S21-2XX-U

P S 5 S 2 1 - X

X X

1:Single Row

2:Dual Row

No. of contacts per row

(02~40)

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black Insulator

O:W/O Cap

C:With Cap

T:Tube

R:Taping & Reel

U:RoHS + Nylon 6T

U:RoHS + LCP

(LCP For Single Row Only)

T:Tin Plated

TE:Tin 200u"

Standard Recommended

www.amtek-co.com.tw

2-12
