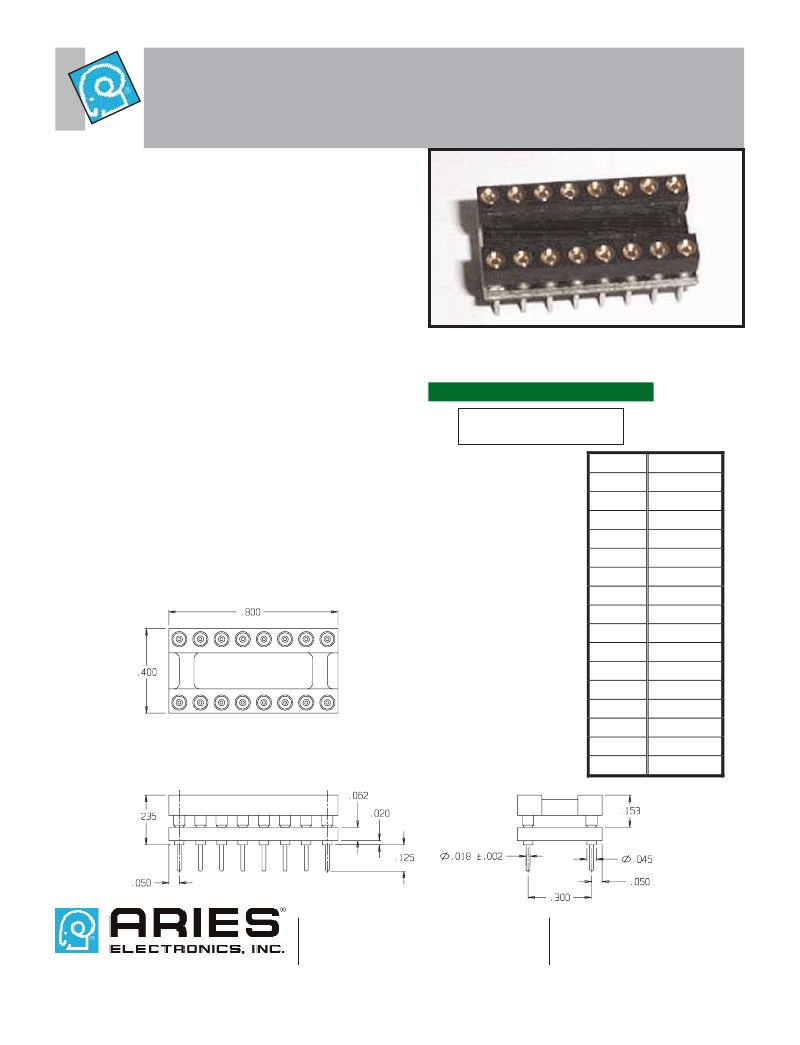

16-301636-10
BURR-BROWN PGA207PA TO NATIONAL
SEMICONDUCTOR LH0084CD FOOTPRINT
FEATURES:
• Correct-A-Chip™ technology solves problems associated
with the use of alternate ICs (due to availability, obsoles-
cence, need for better performance, etc.) by eliminating the
need for new PCB’s.
SPECIFICATIONS:
• Female socket material is black UL 94V-0 Glass-filled 4/6
Nylon 170°C continuous use temp.
• PCB is FR-4,.062 [1.56] or .094 [2.39] thick.
• Male pin is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Male pin plating is 200μ [5.08μm] min.Tin per MIL-T-10727
Type 1 or Tin/Lead 90/10 MIL-P-81728 over 100μ [2.54μm]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
Nickel per QQ-N-290.
configurations can be furnished, depending on quantities. Aries reserves the
• Female pin body is Brass Alloy 360 1/2 hard per UNS c
right to change product specifications without notice.
36000 ASTM-B16-85.
• Female pin body plating is 10μ {.254μm} min. Gold per Mil-
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
G-45204 over 100μ [2.54μm] min. Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
All tolerances ± .005 [.13]
C17200 ASTM-B194-92.
unless otherwise specified
• Contact plating is 10μ {.254μm] min. Gold per MIL-G-45204
over 50μ [1.27μm] min. Nickel per QQ-N-290.
Socket Male Pin
• Minimum contact current rating=1 Amp @ 5 VDC.
1
NC
• Operating temperature=221°F [105°C].
2
NC
• Insertion Force=180 grams/pin; Withdrawal Force=90
grams/pin; Normal Force=140 grams/pin; based on a .018
3
NC
[.46] diameter test lead.
4
9
• Socket accepts leads .015-.025 [.38-.64] in diameter, .100-
5
3
.125 2.54-3.18] long.
MOUNTING CONSIDERATIONS:
6
NC
• Suggested PCB hole size=.028 ± .002 [.71 ± .05 dia.
7
NC
8
9
10
11
12
13
14
15
16
2
NC
13
10
6
1
14
16
15
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
abc
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
18063
REV.D
