341D000F48-0016-340002: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, M2,; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerNICOMATIC; Environmental Compliance

Download Datasheet Parametric View All

341D000F48-0016-340002 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, M2,

341D000F48-0016-340002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145154932564
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.9
Board mount options	HOLE .086-.098
body width	0.303 inch
subject depth	0.437 inch
body length	1.319 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Filter function	NO
maximum insertion force	5 N
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e4
Plug contact pitch	0.098 inch
Match contact row spacing	0.118 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	260 °C
Minimum operating temperature	-60 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (power)	10 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	2 N

Preview

Download Datasheet

View All

Pitch=3

+0.10

6.1

±0.10

(3.8)

±0.10

Last HP

contact G

Pitch=2.5

First HP

contact D

TECHNICALS FEATURES

MATERIALS

INSULATOR : Special PPS (Polyphenylene Sulfide Fibreglass

filled thermoplastic) UL 94-V0

Radiation resistance

No humidity absorption

Oxygen free

Note : PPS characteristics are recognized for space applications

7.7

CUT A-A

4.25

Pitch=3

Hex.1.5

(5)

Connector

support face

HP contact

number zz

2.5

7.5

12.5

17.5

22.5

27.5

32.5

37.5

42.5

47.5

52.5

57.5

62.5

67.5

72.5

77.5

12.5

17.5

22.5

27.5

32.5

37.5

42.5

47.5

52.5

57.5

62.5

67.5

72.5

77.5

82.5

87.5

18.5

23.5

28.5

33.5

38.5

43.5

48.5

53.5

58.5

63.5

68.5

73.5

78.5

83.5

88.5

93.5

4.5

2.5

= =

FIXING HARDWARE :

Jackscrew :

Stainless steel

6.5

7.5

1.2

±0.05

(A)

(5)

3.8

TECHNICAL FEATURES for 22 HP CONTACTS

MATERIAL

Body

Copper alloy / Ni + Au 0.5 µ

CONNECTOR SERIES 340 MALE

Distance betw een

the axies in m m

Length

in m m

HP contact reference

m ark num ber

Fixing

hardware

F48

MECHANICAL

Endurance

Insertion force

Extraction force

Secure overlapping

500 cycles min. up to 2500.

From 0.60 to 5N per contact

From 0.50 to 2N per contact

1.30 mm

ELECTRICAL

Intensity

Contact resistance

Maximum voltage (sea level)

Operating voltage (sea level)

10 A

max. 6 mΩ

1000V (RMS)

180 V AC/500 mA

2.15

(3)

±0.10

(3)

ENVIRONMENTAL

Temperature range

Vibration severity

From –60° to +260°

0.75mm, 10 g RMS 6 hours long random

with superimposed sinusoid. No intermittencies

measured when using an H.S.L.I.

(High Speed Logic Interrupt) detector with a

trip threshold of 2 ns.

100g for 6 ms

HcFc 141 bMGX (ATOCHEM) solvent

96 hrs

56 days @ 90% humidity

Recommended PCB layout:

Pitch=2.5

zz x

1.3

min.

First HP

contact

Pitch=3

Shock severity

Solvent resistance

Salt spray test

Humidity test

(5)

(A)

(5)

2.2

min.

3D view

scale : 1.5:1

Marking as referenced in the CMM catalogue pages 12 & 13

2 29/11/10

www.nicomatic.com

Mail : nicomatic@nicomatic.fr

Tel : +33 (0)4.50.36.13.85

Iss

Date

N.P.

Drawn

A.V.

Checked

E.M.

Approved

Scale

2:1

Page

1/1

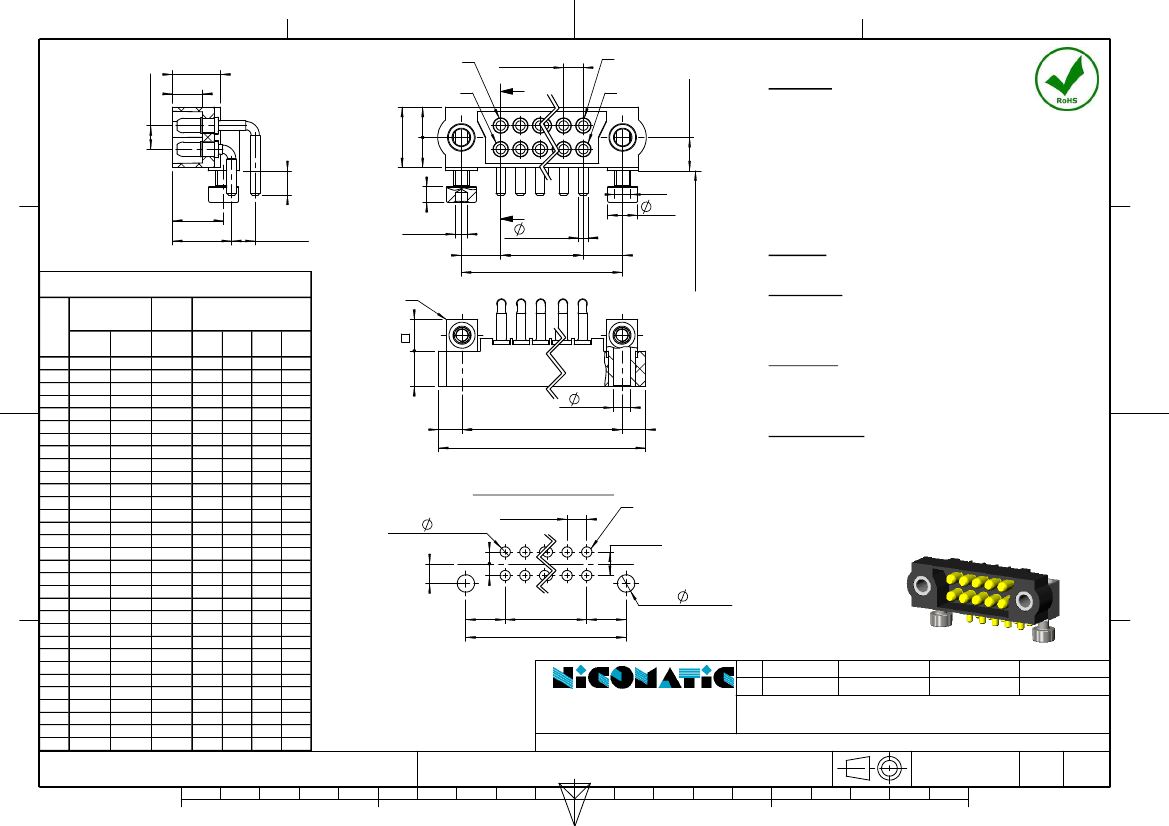

Item : Connector CMM340 male 90° on PCB,

zz HP contacts 22-3400-02, F48

General

tolerance

Folder :

X:\Méthodes\Plans clients\Plans clients 2D\25 - CMM340\Connecteurs Mâles\341D\341D000F48-00zz-340002_cl

This document and drawings, sketches, and schematic drawings are the property of

the NICOMATIC company. and no parts thereof may be reproduced and used without

the written consent of the owner. Law dated 11.03.1902

Catalogue

Reference :

341D000F48-00zz-340002

±0.2
