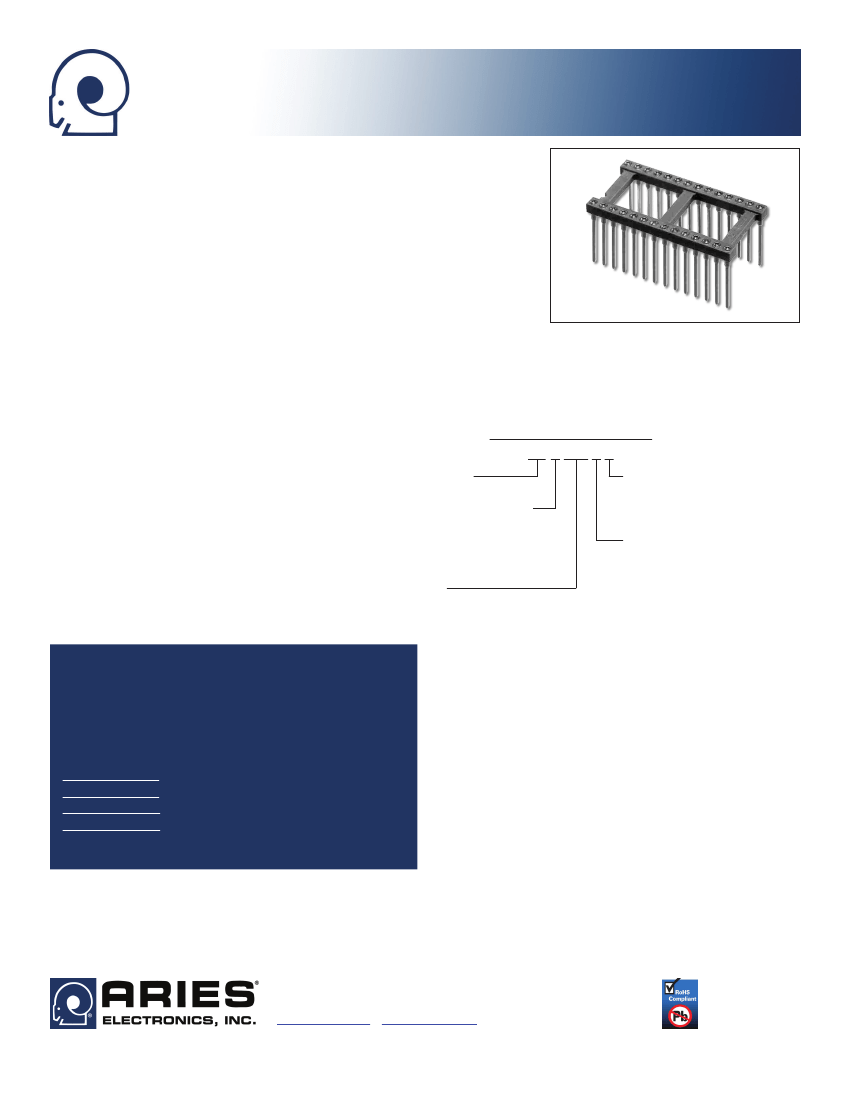

Series 508 Open Frame
Collet Socket w/Wire Wrap Pins
FEATURES
• Open-frame allows for more efficient utilization of board space and better cooling.
• 2- and 3-level wire wrap pins available.
• Compatible with automatic insertion equipment.
• Side-to-side and end-to-end stackable.
GENERAL SPECIFICATIONS
• BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
• PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
• PIN BODY PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ
[5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM
B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
CUSTOMIZATION:
In addition to the standard products shown
• 4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
on this page, Aries specializes in custom design and production.
• CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
min. Ni per SAE AMS-QQ-N-290B
right to change product general specifications without notice.
• CONTACT CURRENT RATING: 3 amps
• OPERATING TEMPERATURE: -67°F to 221°F [-55°C to
105°C] Sn; -67°F to 257°F [-55°C to 125°C] Au
ORDERING INFORMATION
• INSERTION FORCE: 180g/pin, based on 0.018 [0.46]
XX-X 508 X X
dia. test lead
• WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46]
No. of Pins
Plating
dia. test lead
0 = Au Collet, Sn Shell
see Table
• NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia.
Row-to-Row Spacing
0TL = Au Collet, Sn/Pb Shell
test lead
1 = Au Collet, Au Shell
3: “Y” = 0.300 [7.62]
• ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110- 4: “Y” = 0.400 [10.16]
Wire Wrap Level
0.160 [2.79-4.06] long
2 = 2-level
6: “Y” = 0.600 [15.24]
3 = 3-level
9: “Y” = 0.900 [22.86]
MOUNTING CONSIDERATIONS
Series
• SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [1.14
±0.05] dia
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

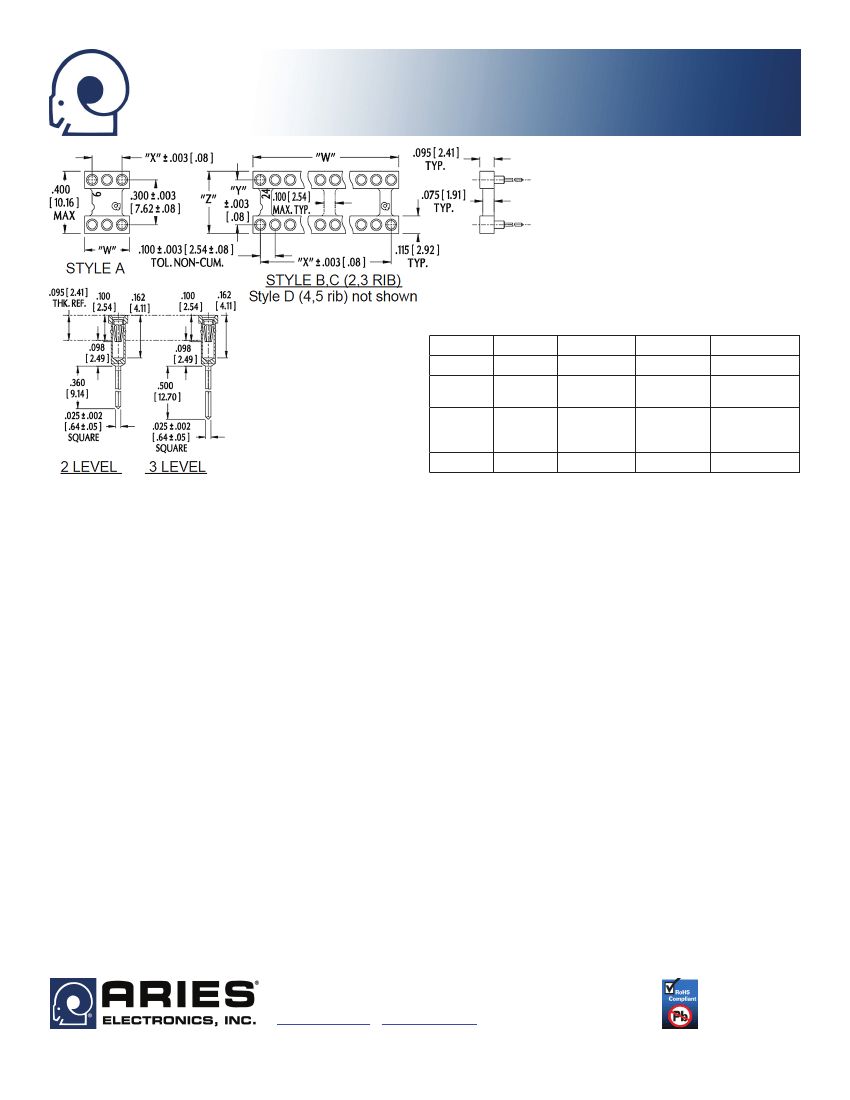

“W” (# PINS PER ROW) x 0.100 [2.54]
“X” (# PINS PER ROW -1) x 0.100 [2.54]
OTHER COLLET PINS AVAILABLE, CONSULT...
Data Sheet 12016
FOR SOLDER PIN TAILS
Data Sheet 12018
FOR SURFACE MOUNT PINS
Data Sheet 12026
FOR OPEN FRAME SOLDER PIN TAILS
Data Sheet 12027
for OPEN FRAME WIRE WRAP PINS
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
