BNC3100-9179

Description
RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size453KB,1 Pages
ManufacturerJYEBAO Co., Ltd.
Download Datasheet Parametric View All

BNC3100-9179 Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug

BNC3100-9179 Parametric

Parameter NameAttribute value
Objectid304317962
Reach Compliance Codeunknown
ECCN codeEAR99
subject depth1.047 inch
Body diameter0.571 inch
Body/casing typePLUG
Cable typeRG-179
Characteristic impedance75 Ω
Connector typeRF BNC CONNECTOR
Contact point genderMALE
Contact resistance1.5 mΩ
Contact styleCOAX
Dielectric withstand voltage2100VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
insulator materialTEFLON
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeCABLE
Number of ports1
Maximum operating frequency1 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
reliabilityCOMMERCIAL
Shell surfaceTIN OVER COPPER
Shell materialBRASS
Termination typeCRIMP
Total number of contacts1

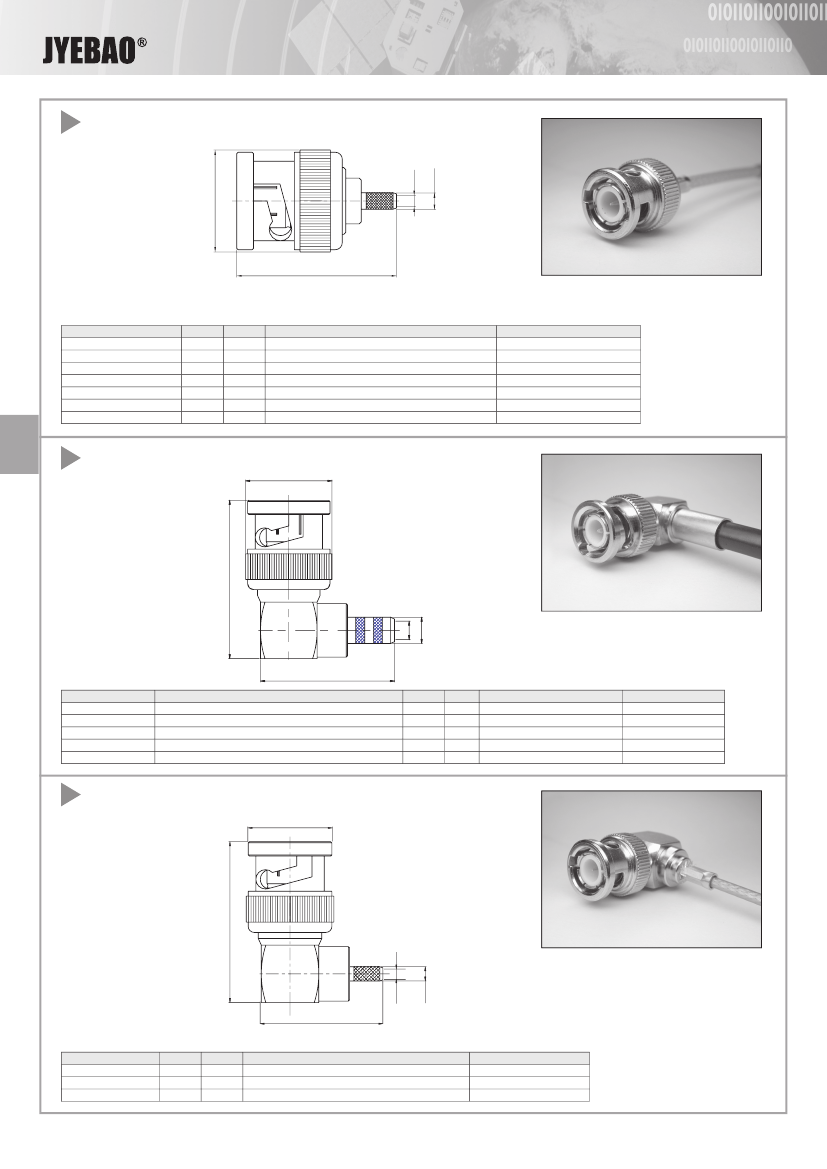

BNC PLUG CRIMP
ø1.65
(ø.063)
(ø.571)
ø14.5
22.7
(.894)
ø2.35
(ø.093)
Part Number
BNC3100-0179
BNC31ND-0179
BNC3100-0316
BNC6100-0316
BNC3100D-0316
BNC31ND-0316
BNC31ND-D0316
Weight
9.40g
8.85g
8.06g
8.06g
7.90g
7.72g
7.58g
Material
A11
A11
A11
C11
A11
A11
A11
Suitable Cables
RG179,RG179-FEP
RG179,RG179-FEP
RG174,RG188,RG316,RG316-E,RG316-FEP,JBY100
RG174,RG188,RG316,RG316-E,RG316-FEP,JBY100
RD316,RG316D-E,RD316-FEP
RG174,RG188,RG316,RG316-E,RG316-FEP,JBY100
RD316,RG316D-E,RD316-FEP
Remarks
Impedance=75ohm
ND= Insulator is Delrin
Reverse Polarity Plug
D=Equivalent cable RD 316
ND= Insulator is Delrin
ND= Insulator is Delrin
L
L1
Part Number
BNC3100-9058
BNC3100-9059
BNC3100-9142
BNC3100-9223
BNC3100-93C2
ød=3.1 (.122)
ød=3.9 (.154)
ød=3.1 (.122)
ød=3.1 (.122)
ød=3.3 (.130)
Measurments
øD=4.4 (.173) L=26.6 (1.047)
øD=5.6 (.220) L=26.6 (1.047)
øD=4.4 (.173) L=26.6 (1.047)
øD=4.4 (.173) L=27.3 (1.075)
øD=5.6 (.220) L=26.6 (1.047)
L1=22.5(.886)
L1=22.5(.886)
L1=22.5(.886)
L1=21.8(.858)
L1=22.5(.886)
Weight
18.76g
16.66g
18.50g
18.50g
18.74g
ø
D
ø
d
26.6
(1.047)
20.3
(.799)
Part Number
BNC3100-9179
BNC3100-9316
BNC3100D-9316
Weight
18.55g
18.06g
18.08g
Material
A11
A11
A11
Suitable Cables
RG179,RG179-FEP
RG174,RG188,RG316,RG316-FEP,RG316-E,JBY100
RD316,RG316D-E,RD316-FEP
ø1.65
(ø.065)
ø2.35
(ø.093)
BNC
117
BNC PLUG CRIMP RIGHT ANGLE
ø
14.5
(
ø
.571)
Material
A11
A11
A11
A11
A11
Suitable Cables
RG58, JBY195
RG59
RG55,RG142,RG142-E,RG400
RG223
3C-2W
Remarks
Impedance=75ohm
Impedance=75ohm
BNC PLUG CRIMP RIGHT ANGLE
ø14.5
(ø.571)
Remarks
Impedance=75ohm
D=Equivalent cable RD 316
Material & Plating: See Page 437
Mounting Hole (M.H.): See Page 439
www.jyebao.com.tw
Tel : 886-2-29029282
Fax: 886-2-29029283
E-mail: jyebao@jyebao.com.tw
