DM74ALS133 13-Input NAND Gate
February 1991
Revised February 2000
DM74ALS133
13-Input NAND Gate
General Description
This device contains a single gate, which performs the
logic NAND function.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full tempera-
ture and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky TTL
process
s
Functionally and pin for pin compatible with Schottky
and low power Schottky TTL counterpart
s
Improved AC performance over Schottky and low power
Schottky counterparts
Ordering Code:
Order Number
DM74ALS133M
DM74ALS133N
Package Number
M16A
N16E
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
ABCDEFGHIJKLM
Inputs
A thru M
All Inputs H
One or More Input L
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
Y
L
H
© 2000 Fairchild Semiconductor Corporation
DS006201
www.fairchildsemi.com
DM74ALS133
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Operating Free Air Temperature Range
Storage Temperature Range
Typical
θ
JA
N Package
M Package
85.0°C/W
111.0°C/W
7V
7V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.5
2
0.8
−0.4
8
70
Nom
5
Max
5.5
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free air temperature range. All typical values are measured at V
CC
=
5V, T
A
=
25°C.
Symbol
V
IK
V
OH
V
OL
I
I
I
IH
I
IL
I
O
I
CC
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
LOW Level
Output Voltage
Input Current @ Maximum
Input Voltage
HIGH Level Input Current
LOW Level Input Current
Output Drive Current
Supply Current
V
CC
=
5.5V, V
IH
=
7V
V
CC
=
5.5V, V
IH
=
2.7V
V
CC
=
5.5V, V
IL
=
0.4V
V
CC
=
5.5V
V
CC
=
5.5V
V
O
=
2.25V
Outputs HIGH
Outputs LOW
−30
0.24
0.56
I
OH
= −0.4
mA
V
CC
=
4.5V to 5.5V
V
CC
=
4.5V
I
OL
=
4 mA
I
OL
=
8 mA
Conditions
V
CC
=
4.5V, I
I
= −18
mA
V
CC
−
2
0.25
0.35
0.4
0.5
0.1
20
−0.1
−112
0.34
0.8
Min
Typ
Max
−1.5
Units
V
V
V
V
mA
µA
mA
mA
mA
mA
Switching Characteristics
over recommended operating free air temperature range
Symbol
t
PLH
t
PHL
Parameter
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
R
L
=
500Ω
C
L
=
50 pF
Conditions
V
CC
=
4.5V to 5.5V
Min
3
5
Max
11
25
Units
ns
ns
www.fairchildsemi.com
2
DM74ALS133
Physical Dimensions
inches (millimeters) unless otherwise noted
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M16A
3
www.fairchildsemi.com
DM74ALS133 13-Input NAND Gate

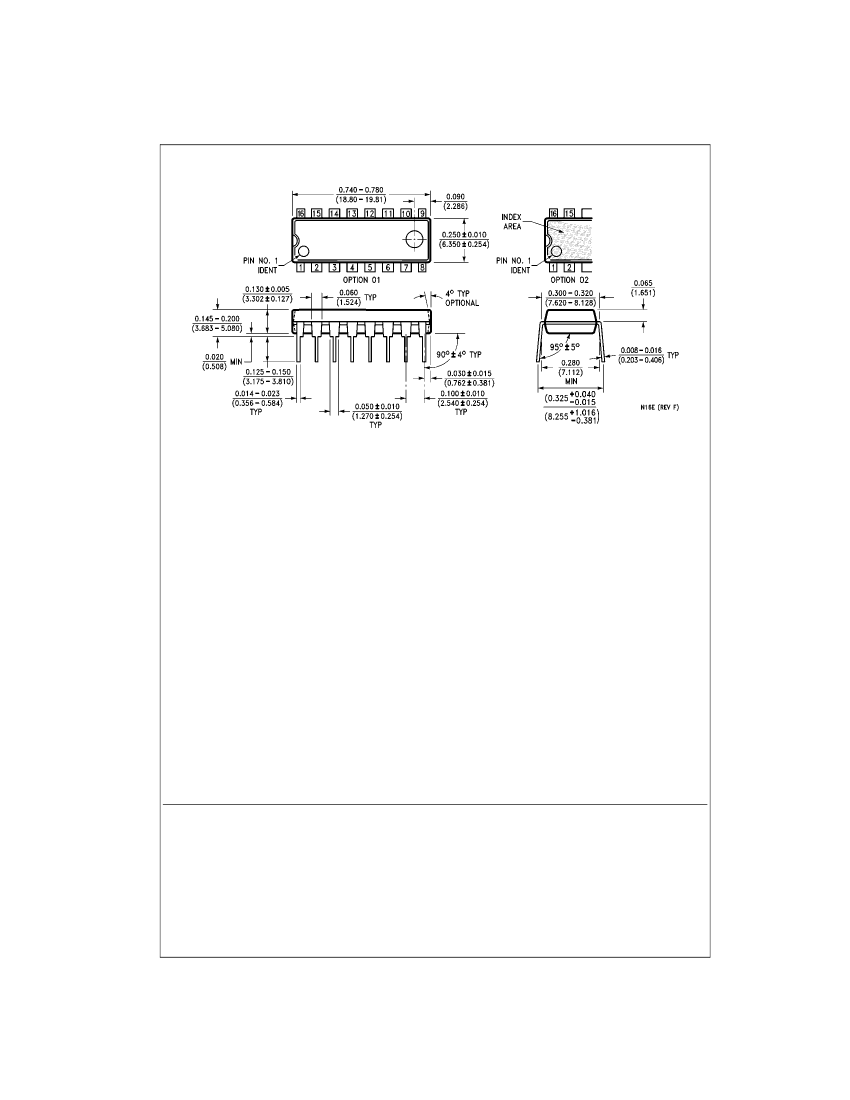

Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N16E
