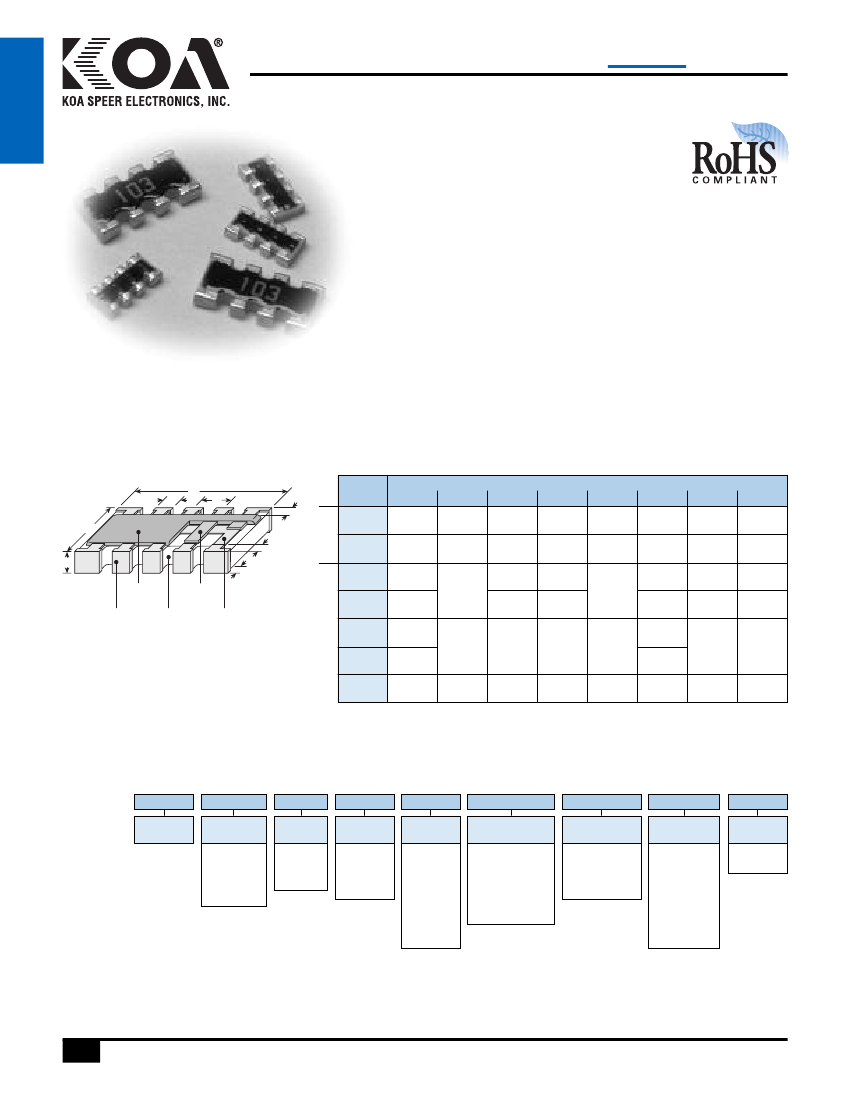

CN1E4KTTP130J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CN1E4KTTP130J

CN1E4KTTP130J: DescriptionArray/Network Resistor, Isolated, 0.063W, 13ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size145KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

CN1E4KTTP130J Overview

Array/Network Resistor, Isolated, 0.063W, 13ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP, ROHS COMPLIANT

CN1E4KTTP130J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1766498736
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Component power consumption	0.063 W
The first element resistor	13 Ω
JESD-609 code	e3
Manufacturer's serial number	CN1E4K
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	13 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	CN-K
size code	0408
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	25 V

Preview

Download Datasheet

View All

convex termination with square corners

resistor array

K/N

NEW

resistors

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Convex terminations with square corners

Marking: Body color black

1FN8K, 1H, 1E no marking

1J white three-digit marking

•

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

dimensions and construction

Protective

Coating

Electrode

Resistive

Film

Inner

Electrode

Size

Code

Dimensions

inches

(mm)

a (ref.)

b (ref.)

—

p (ref.)

.020

(0.5)

1H2N

1H4N

1E2K

1E4K

1J2K

.031±.004 .024±.004 .006±.004 .006±.004 .014±.004 .012±.004

(0.8±0.1) (0.6±0.1) (0.15±0.1) (0.15±0.1) (0.35±0.1) (0.3±0.1)

.055±.004 .024±.003 .004±.003 .008±.003 .014±.004

(1.4±0.1) (0.6±0.08) (0.1±0.08) (0.2±0.08) (0.35±0.1)

.039±.004

.006±.004 .010±.004

(1.0±0.1)

.039±.004

(0.15±0.1) (0.25±0.1)

.014±.004

.079±.004

(1.0±0.1)

.006±.004 .010±.008

(0.35±0.1)

(0.15±0.1) (0.25±0.2)

(2.0±0.1)

.012±.008 .010±.004

(0.3±0.2) (0.25±0.1)

.012±.004 .012±.004

(0.3±0.1) (0.3±0.1)

.008±.004

.016

—

(0.2±0.1)

(0.4)

.013±.004 .007±.002 .026±.004

(0.33±0.1) (0.17±0.05) (0.65±0.1)

.012±.006 .006±.004

(0.3±0.15) (0.15±0.1)

.020

(0.5)

0.31

(0.8)

.020

(0.5)

Ceramic

Substrate

.063±.006

(1.6±0.15)

.063±.006

(1.6±0.15)

1J4K

.126±.006

(3.2±0.15)

1F8K

.149±.004 .063±.004

1FN8K

(3.8±0.1) (1.6±0.1)

.024±.006

.020±.004

(0.6±0.15)

.012±.004

(0.5±0.1)

.020±.006

(0.3±0.1)

(0.5±0.15)

.018±.004 .012±.004

.006

(0.45±0.1) (0.30±0.1)

(0.15)

ordering information

New Part #

Type

Size

NEW

Elements

1F8

Marking

Blank:

Marking

N: No

Marking

Terminal

Convex

K: Convex

type with

square

corners

N: Flat

type with

square

corners

Termination

Material

T: Sn

(Other termination

styles may be

available, please

contact factory

for options)

Packaging

TD:

7" paper tape

TDD:

10" paper tape

101

Nominal

Resistance

2 significant

figures + 1

multiplier

for ±5%

3 significant

figures + 1

multiplier

for ±1%

Tolerance

F: ±1%

J: ±5%

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/09/09

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
