BD242B-6200 datasheet, PDF - EEWORLD Datasheet

BD242B-6200: Description5A, 80V, PNP, Si, POWER TRANSISTOR, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size105KB，3 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

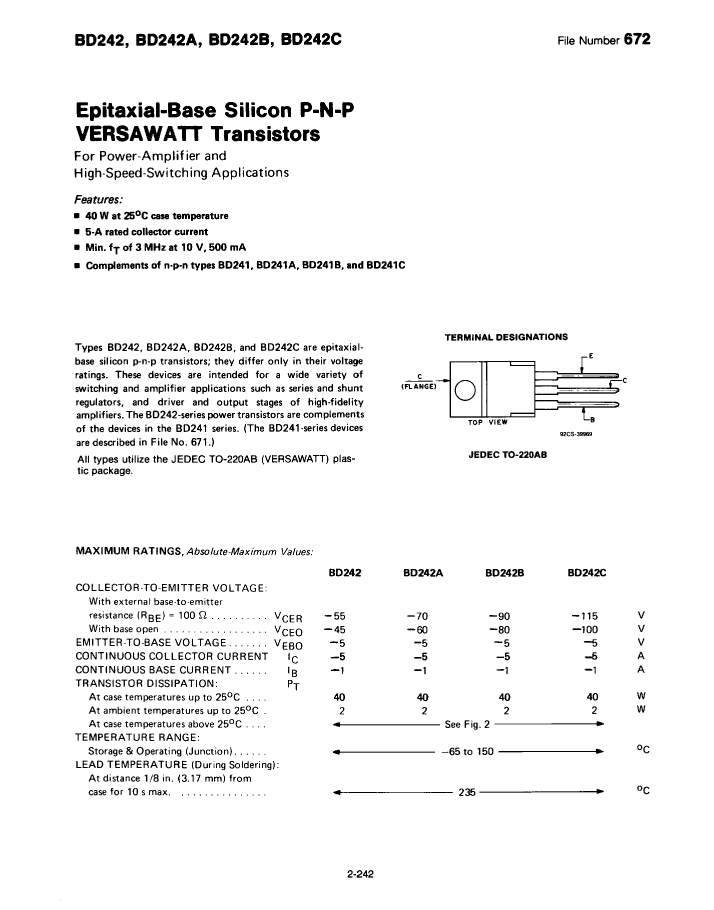

BD242B-6200 Overview

5A, 80V, PNP, Si, POWER TRANSISTOR, TO-220AB

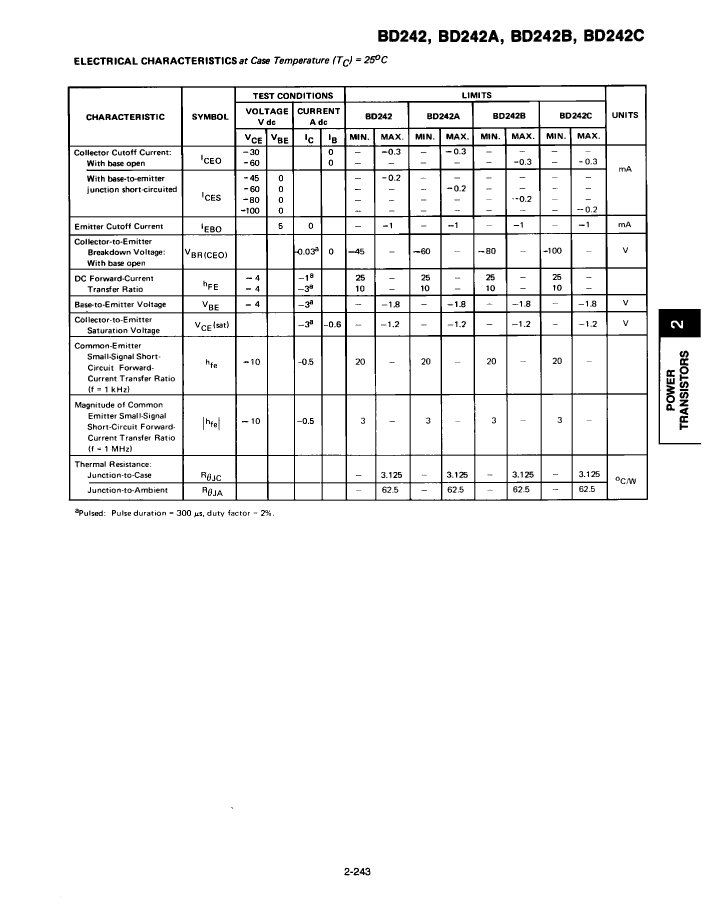

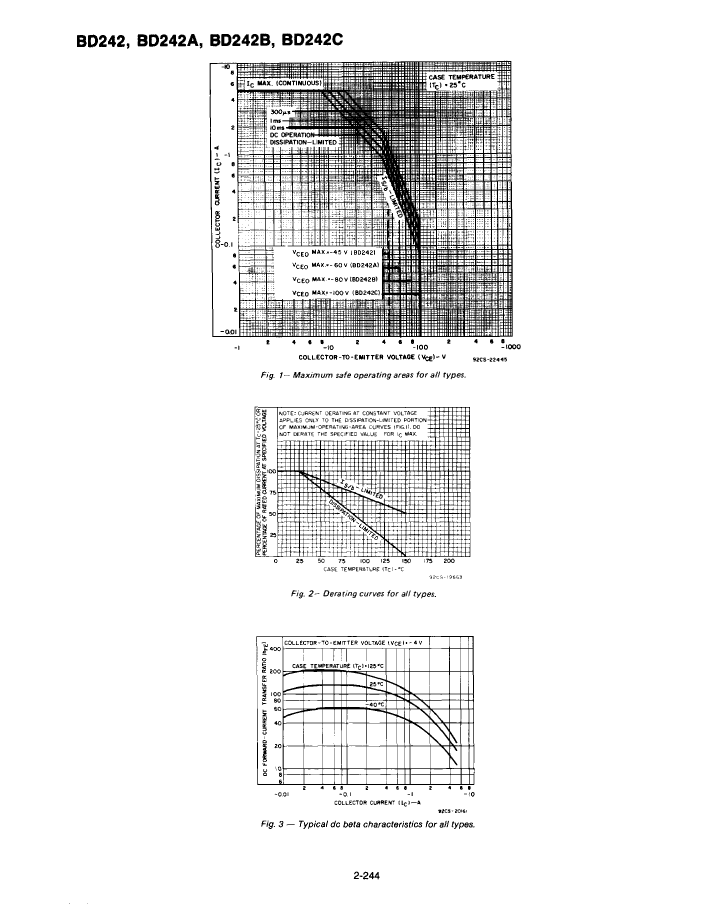

Parameter Name	Attribute value
Objectid	1407131586
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power consumption environment	40 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	3 MHz
VCEsat-Max	1.2 V
