Polypropylene Pulse/High Frequency Capacitors
R76 Series Double Metallized Polypropylene Film, Radial,
DC and Pulse Applications (Automotive Grade)

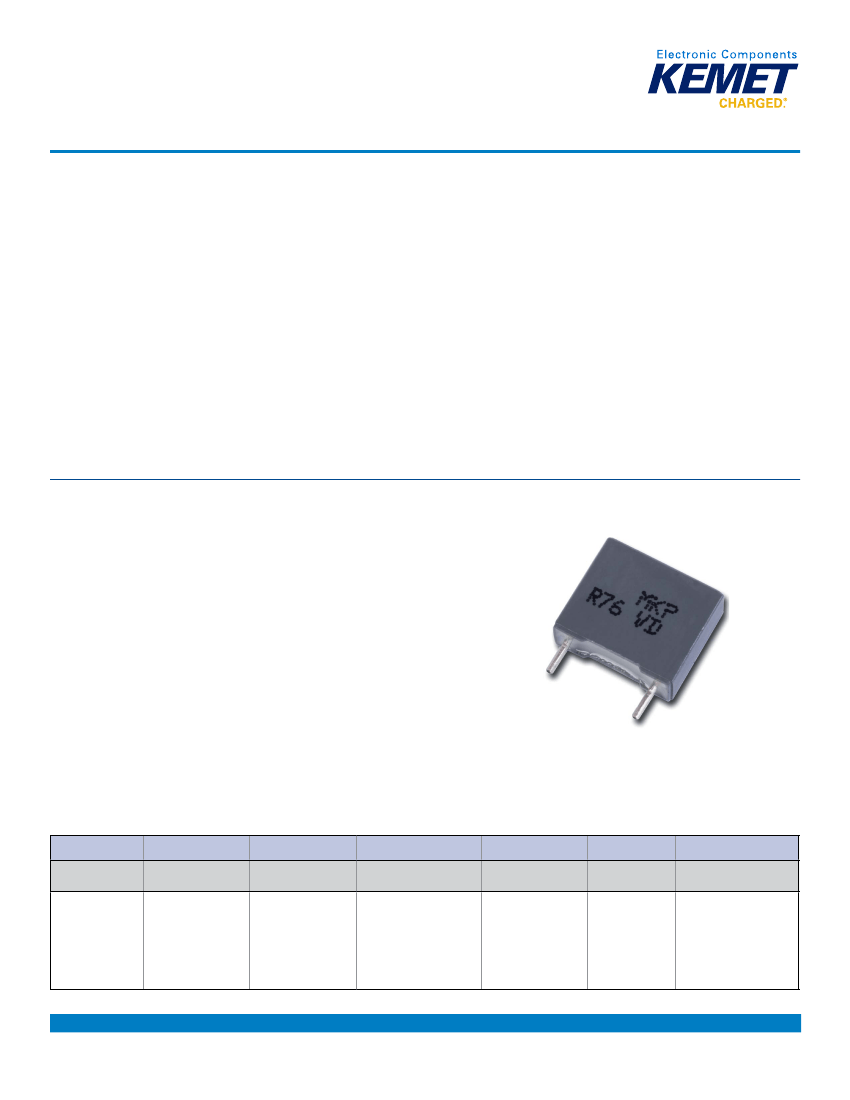

Overview
The R76 Series is constructed of polypropylene film and double
metallized polyester film as electrodes with radial leads of tinned
wire. The radial leads are electrically welded to the metal layer on
the ends of the capacitor winding. The capacitor is encapsulated
in a self-extinguishing solvent resistant plastic case with
thermosetting resin material meeting the UL 94V–0 requirements.
Two different winding constructions are used depending on
voltage parameters. Please see the Performance Characteristics
for more information.
Automotive grade devices are available (up to lead spacing 22.5
mm) and meet the demanding Automotive Electronics Council's
AEC–Q200 qualification requirements.
Applications
Typical applications include deflection circuits in televisions
(S-correction and flyback tuning) and monitors, switching spikes
suppression in switched mode power supplies (SMPS), lamp
capacitors for electronic ballasts and compact lamps, and
snubber and silicon-controlled rectifier (SCR) commutation
circuits as well as applications with high voltage and high current.
Not suitable for across-the-line application (see Suppressor
Capacitors).
Benefits
•
•
•
•
•
•
•
•
•
•
Voltage range: 250 – 2,000 VDC
Capacitance range: 100 pF – 15 µF
Lead Spacing: 7.5 mm – 37.5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Climatic category: 55/105/56 IEC 60068-1
Operating temperature range of -55˚C to +105˚C
RoHS compliance and lead-free terminations
Tape and reel packaging in accordance with IEC 60286–2
Self-healing
Automotive (AEC–Q200) grades available up to lead spacing
22.5mm
Part Number System
R76
Series
Metallized
Polypropylene
I
Rated Voltage (VDC)
I = 250
M = 400
P = 630
Q = 1000
T = 1600
U = 2000
D
Lead Spacing (mm)
D = 7.5
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
1680
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value.
First digit indicates the
number of zeros to be
added.
AA
Lead and
Packaging Code
See Ordering
Options Table
00
Internal Use
00, 30, 40, 70
(Standard)
H
Capacitance
Tolerance
H = ±2.5%
(for C ≥ 0.001 µF only)
J = ±5%
K = ±10%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 5/19/2014
1
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel)
Tape & Reel (Large Reel)
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Long Leads
Bulk (Bag) – Long Leads
4 +2/-0
H
0
=18.5 +/-0.5
3.5 +0.5/-0
4.0 +0.5/-0
3.2 +0.3/-0.2
30 +5/-0
25 +2/-1
SE
CK
JB
JE
JH
40
50
4 +2/-0
H
0
=
18.5 +/-0.5
H
0
=18.5 +/- 0.5
H
0
=18.5 +/- 0.5
2.7 +0.5/-0
3.5 +0.5/-0
10 +/- 1
4.0 +0.5/-0
3.2 +0.3/-0.2
18 +1/-1
30 +5/-0
25 +2/-1
SE
DQ
GY
CK
JA
JB
JC
JE
JH
JM
40
50
H
0
=18.5 +/- 0.5
2.7 +0.5/-0
3.5 +0.5/-0
10 +/- 1
4.0 +0.5/-0
3.2 +0.3/-0.2
18 +1/-1
17 +1/-2
30 +5/-0
25 +2/-1
CK
JA
JB
JC
JE
JH
JM
Z3
40
50
4 +2/-0
H
0
=
18.5 +/-0.5
SE
DQ
Lead Length
(mm)
Lead and
Packaging
Code
7.5
10
15
22.5
27.5
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 5/19/2014
2
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Ordering Options Table cont'd
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag)–Short Leads
Other Lead and Packaging Options
4 +2/-0
3.5 +0.5/-0
4.0 +0.5/-0
3.2 +0.3/-0.2
30 +5/-0
25 +2/-1
SE
JB
JE
JH
40
50
Lead Length
(mm)
Lead and
Packaging
Code
37.5
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Long Leads
Bulk (Bag) – Long Leads

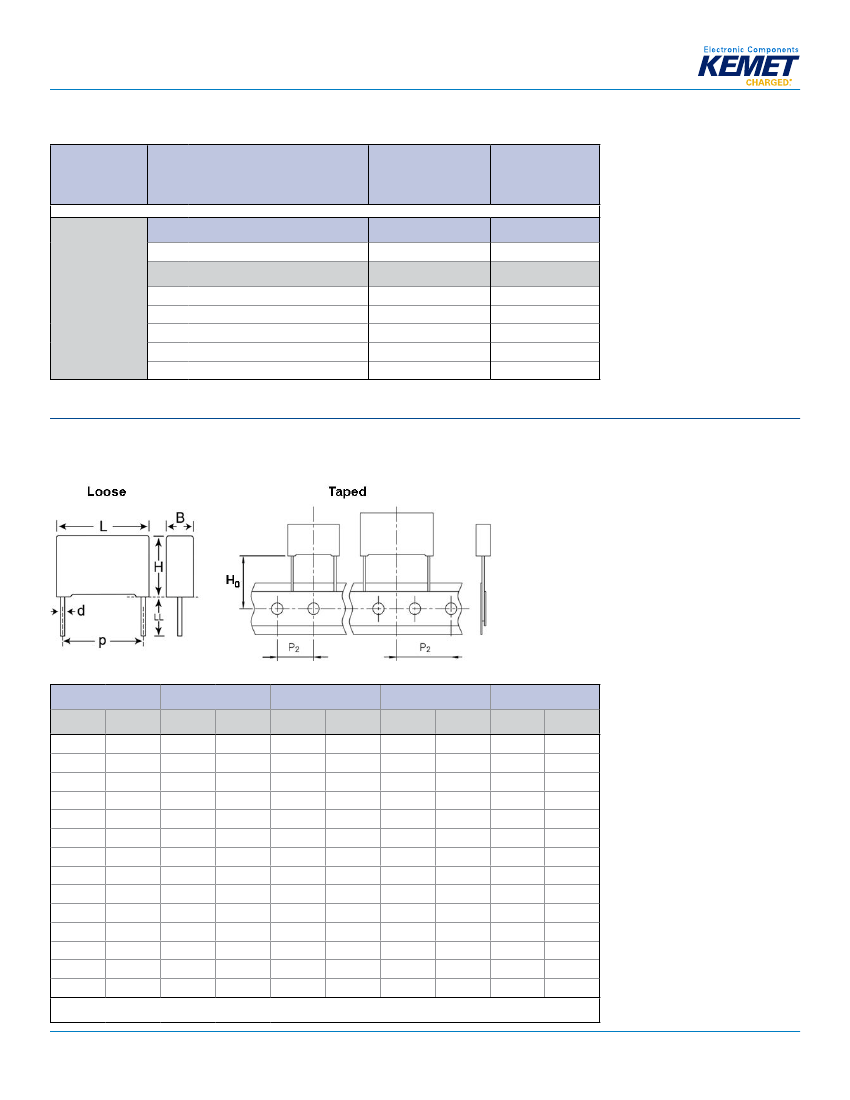

Dimensions – Millimeters
p
Nominal
7.5
7.5
7.5
7.5
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
Tolerance
+/- 0.4
+/- 0.4
+/- 0.4
+/-0.4
+/- 0.4
+/- 0.4
+/-0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
Nominal
3.0
4.0
5.0
6.0
4.0
5.0
6.0
4.0
5.0
6.0
7.5
8.5
9.0
10.0
B
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
Nominal
8.0
9.0
10.5
12.0
9.0
11.0
12.0
10.0
11.0
12.0
13.5
14.5
12.5
16.0
H
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
10.0
10.0
10.0
10.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
L
Tolerance
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.3
+0.3
+0.3
+0.5
+0.5
+0.5
+0.5
Nominal
0.5
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
Note: See Ordering Options Table for lead length (LL/Ho) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 5/19/2014
3
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

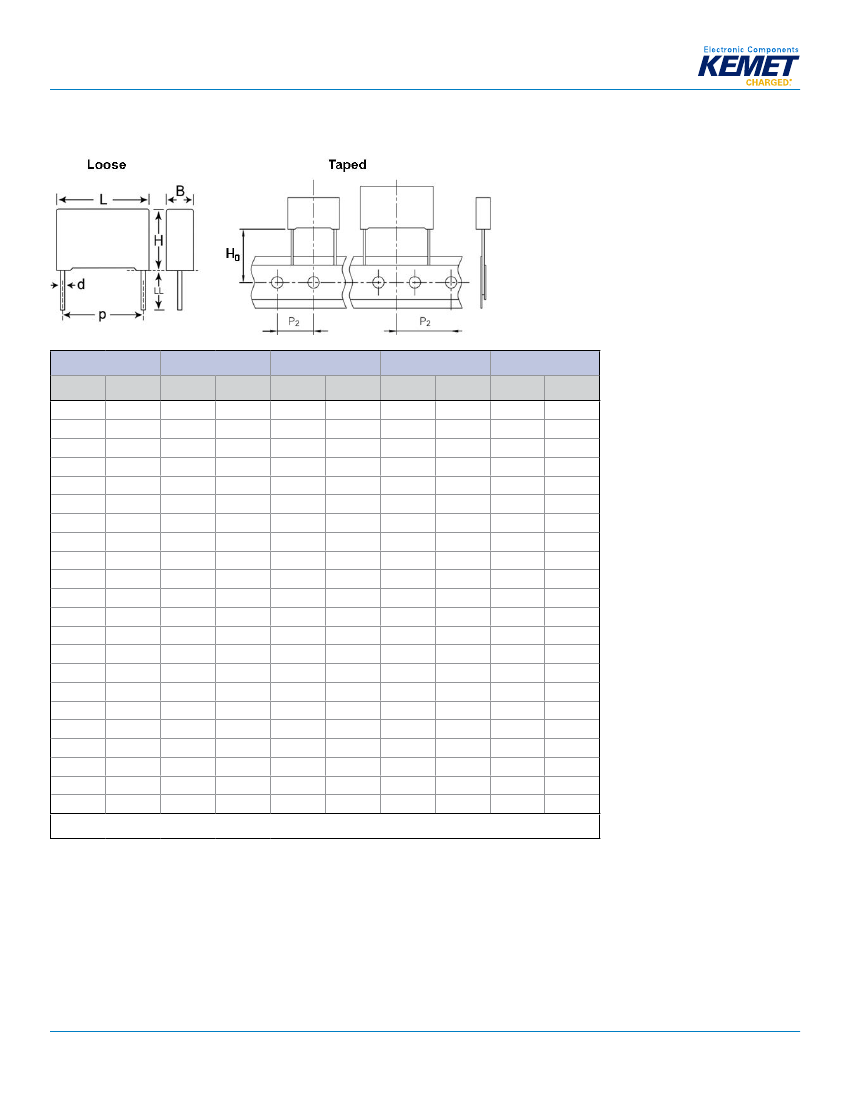

Dimensions – Millimeters cont'd
p
Nominal
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
Tolerance
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
+/- 0.4
Nominal
11.0
13.0
6.0
7.0
8.5
10.0
11.0
13.0
9.0
11.0
13.0
13.0
14.0
18.0
22.0
11.0
13.0
16.0
19.0
20.0
24.0
30.0
B
Tolerance
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
Nominal
19.0
12.0
15.0
16.0
17.0
18.5
20.0
22.0
17.0
20.0
22.0
25.0
28.0
33.0
37.0
22.0
24.0
28.5
32.0
40.0
44.0
45.0
H
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
41.5
41.5
41.5
41.5
41.5
41.5
41.5
L
Tolerance
+0.5
+0.5
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
Nominal
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
1.0
1.0
1.0
d
Tolerance
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
+/- 0.05
Note: See Ordering Options Table for lead length (LL/Ho) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 5/19/2014
4
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Performance Characteristic
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Sections
Voltage Range (VDC)
Voltage Range (VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Operating Temperature Range
Rated Temperature T
R
Voltage Derating
250
180
0.0068 – 15
Polypropylene film
Double sided metallized polyester film
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384-16
1
400
250
0.0027 – 8.2
630
250
0.00068 –
0.012
630
400
0.00039 – 5.6
1000
400
0.00022 –
0.0033
2
1000
600
1600
650
2000
700
0.00047 – 2.2 0.0033 – 1.2 0.0001 – 0.68
E12 series (IEC 60063) measured @ 1 kHz and +20 ±1°C
±2.5%, ±5%, ±10%
-55°C to +105°C
+85°C for V
R
(DC)
+75°C for V
R
(AC)
The following decreasing factor has to be applied on the rated voltage:
+85°C to +105°C: 1.25% per °C for V
R
(DC)
+75°C to +105°C: 1.35% per °C for V
R
(AC)
55/105/56 IEC 60068-1
Average relative humidity ≤ 75%
RH = 95% for 30 days per year
RH = 85% for further days limited by average value per year
Climatic Category
Test Voltage
Capacitance Drift
Maximum Pulse Steepness
Temperature Coefficient
Self-Inductance L
(Lead Length ~ 2 mm)
1.6 x V
R
VDC for 2 seconds (between terminations) @ +25°C ±5°C
Maximum 0.5% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40% to 60%
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp<V
R
), the specified dv/dt
can be multiplied by the factor V
R
/Vpp
-(200 ±100) ppm/°C at 1 kHz
Lead Spacing (mm)
L (nH) ≈
7.5
8
10
9
15
10
22.5
18
27.5
18
37.5
20
Measured at 25°C ± 5°C
Frequency
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
C ≤ 0.1 µF
0.04%
0.06%
0.25%
0.1 µF < C ≤ 1.0 µF
0.05%
0.08%
-
1.0 µF < C ≤ 4.7 µF
0.06%
-
-
C > 1 µF
0.10%
-
-
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3034_R76 • 5/19/2014
5
京公网安备 11010802033920号
EEWORLD
