P5-A11414 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> P5-A11414

P5-A11414: DescriptionPushbutton Switch, SPDT, Momentary-tactile, 10A, 28VDC, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size2MB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

P5-A11414 Overview

Pushbutton Switch, SPDT, Momentary-tactile, 10A, 28VDC, Solder Terminal, Panel Mount-threaded

P5-A11414 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1615877779
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator length	0.14 inch
Actuator stroke	4.572 mm
Actuator type	CURVED TYPE
Body length or diameter	15.88 mm
Casing type	5/8-24
Center contact plating	GOLD
Contact (AC) maximum rated load I	5A@115VAC
Contact (AC) maximum rated R load	10A@115VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Contact resistance	0.025 mΩ
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1050VRMS V
Electrical life	25000 Cycle(s)
End contact plating	GOLD
JESD-609 code	e4
Manufacturer's serial number	P5-A
Installation features	PANEL MOUNT-THREADED
Maximum operating force	17.57 N
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
seal	IP64
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

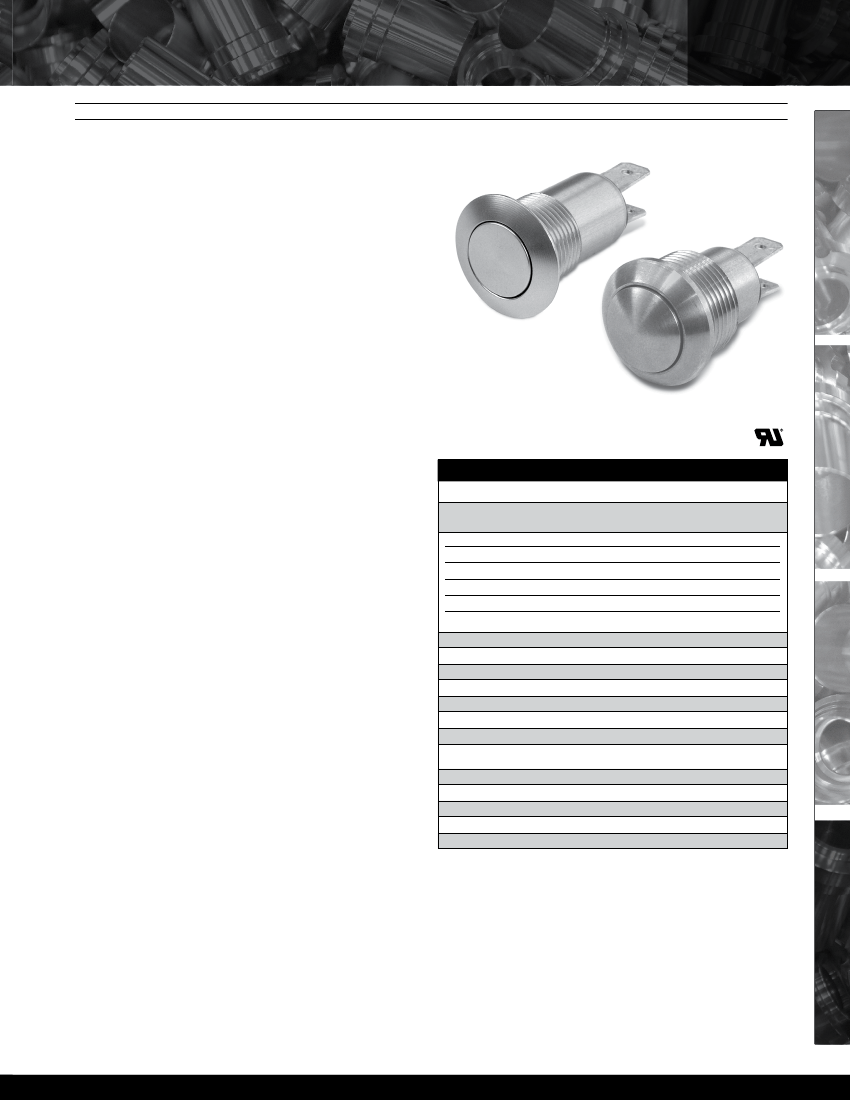

VANDAL RESISTANT PUSHBUTTONS

ALTERNATE ACTION, SEALED AGAINST DUST & MOISTURE

P5-V

VANDAL RESISTANT

PUSHBUTTONS

The P5-V switch gives you all the functionality of the P5 Alternate

Action switch with the added benefit of an aluminum security

level case and button or a stainless steel vandal resistant case

and button.

Push and the P5-V switch turns “on.” Push again and the

switch turns “off.” Positive tactile feedback is featured so the

operator is clearly aware the switch has been actuated. The

button returns to the original position after each actuation.

To guard against front panel splash and dirt the P5-V is sealed

at the button with OTTO’s patented “rolling sleeve” design.

The terminals are sealed with epoxy, providing a seal against

flux during wiring and behind panel dirt and moisture. The

combination of sealing provides smooth operation over a wide

temperature range. Watertight sealing to IP68S is also available.

We are able to provide custom button engraving with epoxy

ink backfill and other special characters, shrouded buttons,

contact configurations and materials to suit your application

requirements.

High Profile

Flat Button

High Profile

Curved Button

Features:

• Security (aluminum) or vandal resistant

(stainless steel) case & button

• Button sealed with patented “rolling sleeve” design

• Contact area sealed at case & terminals

• Watertight to IP68S or dusttight & moistureproof

to IP64

• Less than 25mΩ contact resistance

• Handles low level up to 10 amps

• 1 million mechanical cycle life

• RoHS & WEEE Compliant

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

Lamp

Motor

DWV

Low Level

Electrical Life:

Mechanical Life:

Seal:

Operating Force:

Total Travel:

Overtravel:

Sea Level @

28VDC or 115VAC, 60/400Hz

10A

1050Vrms

10mA @ 30mV

25,000 cycles

1,000,000 cycles

IP64 or IP68S

3.0 lbs. +1/-0.5 lb.

0.180 inches max

0.012 inches min

Operating Temp Range:

-55°C to +85°C

MATERIALS:

Case:

Button:

Terminals:

Terminal Hardware:

Mounting Hardware:

Anodized aluminum alloy or stainless steel

Brass with gold over silver

Screw, lockwasher and terminal lug when applicable

Hex nut or knurl nut, lockwasher and panel seal when applicable

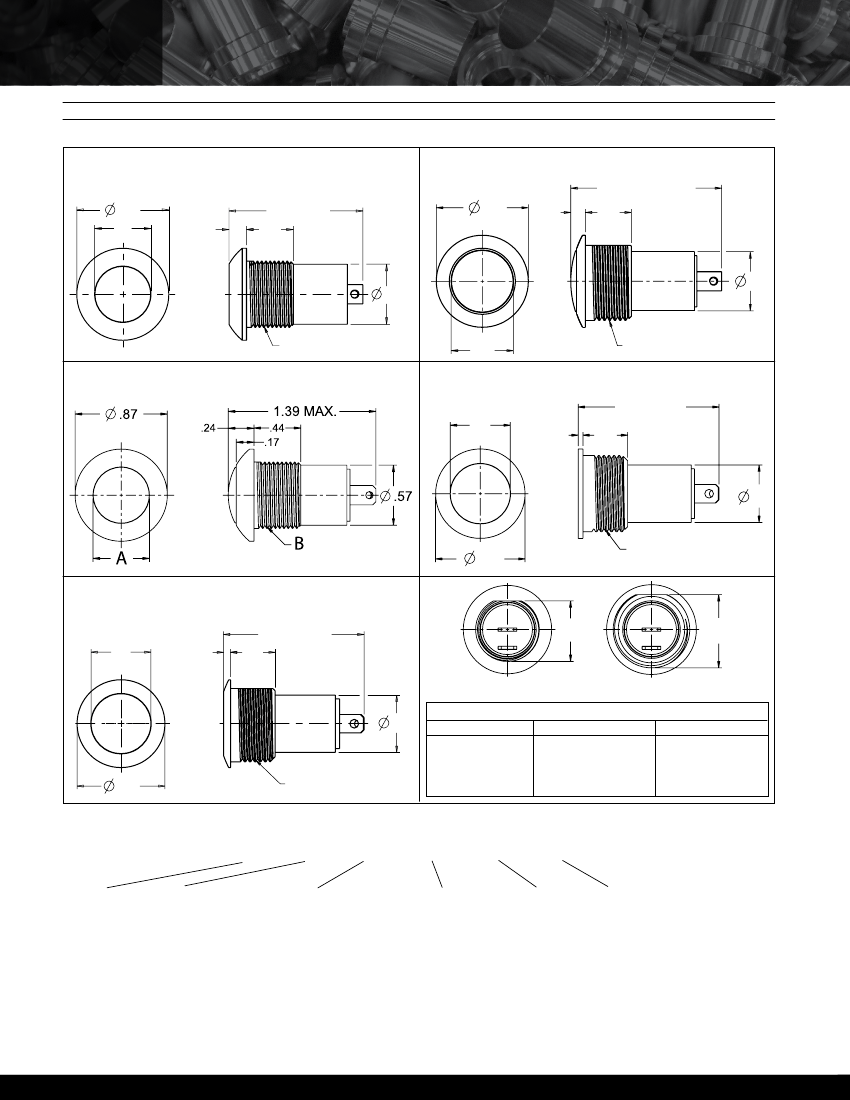

PUSHBUTTONS

Specifications Subject To Change Without Notice

www.ottoexcellence.com

129
