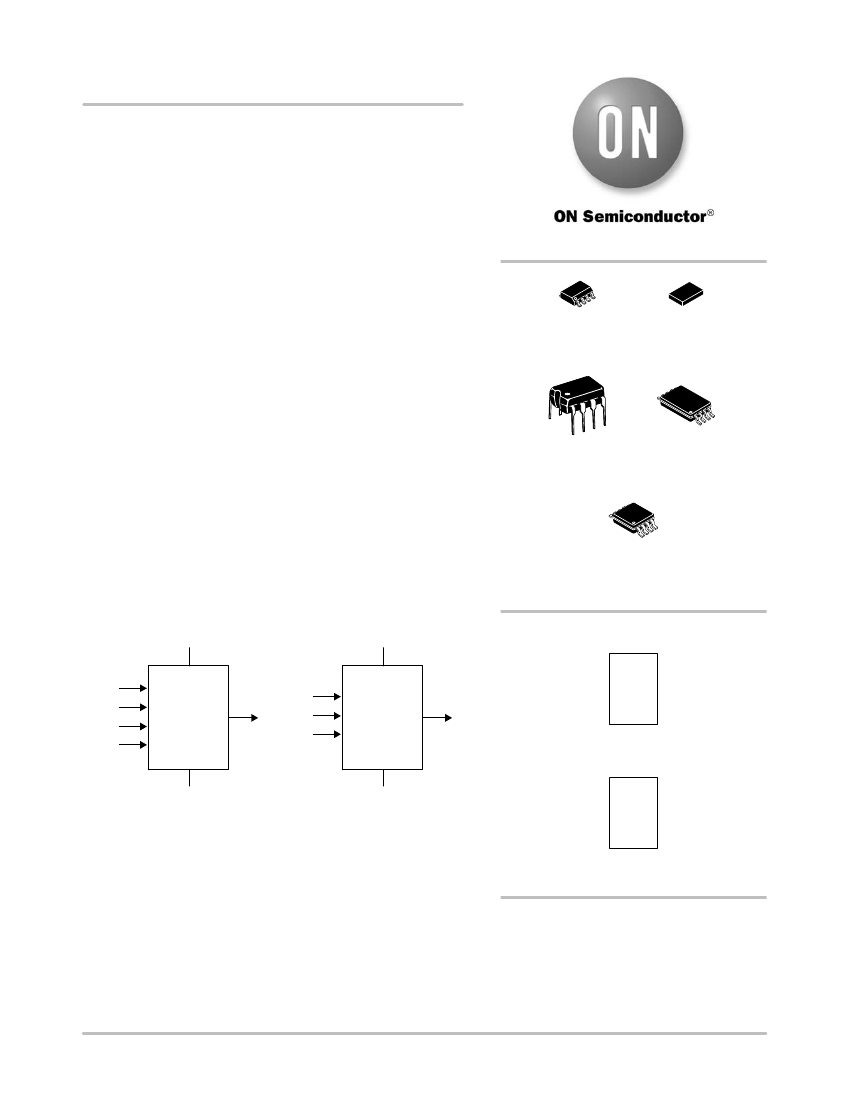

CAT93C66, CAT93W66
4 kb Microwire Serial CMOS
EEPROM
Description
The CAT93C66 is a 4 kb CMOS Serial EEPROM device which is
organized as either 256 registers of 16 bits (ORG pin at V
CC
) or 512
registers of 8 bits (ORG pin at GND). The CAT93W66 features x16
memory organization only. Each register can be written (or read)
serially by using the DI (or DO) pin. The device features sequential
read and self−timed internal write with auto−clear. On−chip
Power−On Reset circuitry protects the internal logic against powering
up in the wrong state.
Features
http://onsemi.com
SOIC−8
V SUFFIX
CASE 751BD
TDFN−8
VP2 SUFFIX
CASE 511AK
•
•
•
•
•
•
•
•
•
•
•
•
High Speed Operation: 2 MHz
1.8 V to 5.5 V Supply Voltage Range
Selectable x8 or x16 Memory Organization: CAT93C66
Sequential Read
Software Write Protection
Power−up Inadvertent Write Protection
Low Power CMOS Technology
1,000,000 Program/Erase Cycles
100 Year Data Retention
Industrial and Extended Temperature Ranges
8−lead PDIP, SOIC, TSSOP and 8−pad TDFN Packages
These Devices are Pb−Free, Halogen Free/BFR Free, and RoHS
Compliant
V
CC
V
CC
PDIP−8
L SUFFIX
CASE 646AA
TSSOP−8
Y SUFFIX
CASE 948AL
SOIC−8
X SUFFIX
CASE 751BE
PIN CONFIGURATION
CS
1
2
3
4
8 V
CC
7 NC
6 ORG
5 GND
ORG
CS
SK
DI
CAT93C66
DO
SK
CS
SK
DI
CAT93W66
DO
DI
DO
PDIP (L), SOIC (V, X),
TSSOP (Y),
TDFN (VP2)
GND
CS
SK
DI
DO
1
2
3
4
8 V
CC
7 NC
6 NC
5 GND
GND
Figure 1. Functional Symbols
CAT93C66 Selectable Organization:
When the ORG pin is connected to V
CC
, the x16 organization is
selected. When it is connected to ground, the x8 organization is
selected. If the ORG pin is left unconnected, then an internal pull−up
device will select the x16 organization.
CAT93W66:
TDFN (VP2)
CAT93W66
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 13 of this data sheet.
The device works in x16 mode only.
©
Semiconductor Components Industries, LLC, 2014
1
May, 2014 − Rev. 12
Publication Order Number:
CAT93C66/D
CAT93C66, CAT93W66
Table 1. PIN FUNCTION
Pin Name
CS
SK
DI
DO
Function
Chip Select
Clock Input
Serial Data Input
Serial Data Output
Pin Name
V
CC
GND
ORG (Note 1)
NC
Function
Power Supply
Ground
Memory Organization
No Connection
1. ORG Pin available for the CAT93C66 only.
Table 2. ABSOLUTE MAXIMUM RATINGS
Parameters
Storage Temperature
Voltage on Any Pin with Respect to Ground (Note 2)
Ratings
−65 to +150
−0.5 to +6.5
Units
°C
V
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
2. The DC input voltage on any pin should not be lower than −0.5 V or higher than V
CC
+ 0.5 V. During transitions, the voltage on any pin may
undershoot to no less than −1.5 V or overshoot to no more than V
CC
+ 1.5 V, for periods of less than 20 ns.
Table 3. RELIABILITY CHARACTERISTICS
(Note 3)
Symbol
N
END
(Note 4)
T
DR
Endurance
Data Retention
Parameter
Min
1,000,000
100
Units
Program / Erase Cycles
Years
3. These parameters are tested initially and after a design or process change that affects the parameter according to appropriate AEC−Q100
and JEDEC test methods.
4. Block Mode, V
CC
= 5 V, 25°C.
Table 4. D.C. OPERATING CHARACTERISTICS
(
V
CC
= +1.8 V to +5.5 V, T
A
= −40°C to +125°C unless otherwise specified.)
Symbol
I
CC1
I
CC2
I
SB1
Parameter
Power Supply Current
(Write)
Power Supply Current
(Read)
Power Supply Current
(Standby) (x8 Mode)
Power Supply Current
(Standby) (x16 Mode)
Input Leakage Current
Test Conditions
f
SK
= 1 MHz, V
CC
= 5.0 V
f
SK
= 1 MHz, V
CC
= 5.0 V
V
IN
= GND or V
CC
,
CS = GND ORG = GND
V
IN
= GND or V
CC
, CS = GND
ORG = Float or V
CC
V
IN
= GND to V
CC
T
A
= −40°C to +85°C
T
A
= −40°C to +125°C
T
A
= −40°C to +85°C
T
A
= −40°C to +125°C
T
A
= −40°C to +85°C
T
A
= −40°C to +125°C
I
LO
Output Leakage Current
V
OUT
= GND to V
CC
,
CS = GND
4.5 V
≤
V
CC
< 5.5 V
4.5 V
≤
V
CC
< 5.5 V
1.8 V
≤
V
CC
< 4.5 V
1.8 V
≤
V
CC
< 4.5 V
4.5 V
≤
V
CC
< 5.5 V, I
OL
= 2.1 mA
4.5 V
≤
V
CC
< 5.5 V, I
OH
= −400
mA
1.8 V
≤
V
CC
< 4.5 V, I
OL
= 1 mA
1.8 V
≤
V
CC
< 4.5 V, I
OH
= −100
mA
V
CC
− 0.2
2.4
0.2
T
A
= −40°C to +85°C
T
A
= −40°C to +125°C
−0.1
2
0
V
CC
x 0.7
Min
Max
1
500
2
4
1
2
1
2
1
2
0.8
V
CC
+ 1
V
CC
x 0.2
V
CC
+ 1
0.4
V
V
V
V
V
V
V
V
mA
mA
mA
Units
mA
mA
mA
I
SB2
I
LI
V
IL1
V
IH1
V
IL2
V
IH2
V
OL1
V
OH1
V
OL2
V
OH2
Input Low Voltage
Input High Voltage
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
Output Low Voltage
Output High Voltage
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
http://onsemi.com
2
CAT93C66, CAT93W66
Table 5. PIN CAPACITANCE
(T
A
= 25°C, f = 1.0 MHz, V
CC
= +5.0 V)
Symbol
C
OUT
(Note 5)
C
IN
(Note 5)
Test
Output Capacitance (DO)
Input Capacitance (CS, SK, DI, ORG)
Conditions
V
OUT
= 0 V
V
IN
= 0 V
Min
Typ
Max
5
5
Units
pF
pF
5. These parameters are tested initially and after a design or process change that affects the parameter according to appropriate AEC−Q100
and JEDEC test methods.
Table 6. A.C. CHARACTERISTICS
(V
CC
= +1.8 V to +5.5 V, T
A
= −40°C to +125°C, unless otherwise specified.) (Note 6)
Limits
Symbol
t
CSS
t
CSH
t
DIS
t
DIH
t
PD1
t
PD0
t
HZ
(Note 7)
t
EW
t
CSMIN
t
SKHI
t
SKLOW
t
SV
SK
MAX
CS Setup Time
CS Hold Time
DI Setup Time
DI Hold Time
Output Delay to 1
Output Delay to 0
Output Delay to High−Z
Program/Erase Pulse Width
Minimum CS Low Time
Minimum SK High Time
Minimum SK Low Time
Output Delay to Status Valid
Maximum Clock Frequency
DC
0.25
0.25
0.25
0.25
2000
Parameter
Min
50
0
100
100
0.25
0.25
100
5
Max
Units
ns
ns
ns
ns
ms
ms
ns
ms
ms
ms
ms
ms
kHz
6. Test conditions according to “A.C. Test Conditions” table.
7. These parameters are tested initially and after a design or process change that affects the parameter according to appropriate
AEC−Q100 and JEDEC test methods.
Table 7. POWER−UP TIMING
(Notes 8, 9)
Symbol
t
PUR
t
PUW
Power−up to Read Operation
Power−up to Write Operation
Parameter
Max
1
1
Units
ms
ms
8. These parameters are tested initially and after a design or process change that affects the parameter according to appropriate
AEC−Q100 and JEDEC test methods.
9. t
PUR
and t
PUW
are the delays required from the time V
CC
is stable until the specified operation can be initiated.
http://onsemi.com
3
CAT93C66, CAT93W66
Table 8. A.C. TEST CONDITIONS
Input Rise and Fall Times
Input Pulse Voltages
Timing Reference Voltages
Input Pulse Voltages
Timing Reference Voltages
Output Load
≤
50 ns
0.4 V to 2.4 V
0.8 V, 2.0 V
0.2 V
CC
to 0.7 V
CC
0.5 V
CC
4.5 V
≤
V
CC
≤
5.5 V
4.5 V
≤
V
CC
≤
5.5 V
1.8 V
≤
V
CC
≤
4.5 V
1.8 V
≤
V
CC
≤
4.5 V
Current Source I
OLmax
/I
OHmax
; CL = 100 pF
Device Operation
The CAT93C66 is a 4096−bit nonvolatile memory
intended for use with industry standard microprocessors.
The CAT93C66 can be organized as either registers of 16
bits or 8 bits. When organized as X16, seven 11−bit
instructions control the reading, writing and erase
operations of the device. When organized as X8, seven
12−bit instructions control the reading, writing and erase
operations of the device. The CAT93W66 works in x16
mode only. The device operates on a single power supply
and will generate on chip, the high voltage required during
any write operation.
Instructions, addresses, and write data are clocked into the
DI pin on the rising edge of the clock (SK). The DO pin is
normally in a high impedance state except when reading data
from the device, or when checking the ready/busy status
after a write operation. The serial communication protocol
follows the timing shown in Figure 2.
Table 9. INSTRUCTION SET
Address
Instruction
READ
ERASE
WRITE
EWEN
EWDS
ERAL
WRAL
Start Bit
1
1
1
1
1
1
1
Opcode
10
11
01
00
00
00
00
x8
(Note 10)
A8−A0
A8−A0
A8−A0
11XXXXXXX
00XXXXXXX
10XXXXXXX
01XXXXXXX
The ready/busy status can be determined after the start of
internal write cycle by selecting the device (CS high) and
polling the DO pin; DO low indicates that the write
operation is not completed, while DO high indicates that the
device is ready for the next instruction. If necessary, the DO
pin may be placed back into a high impedance state during
chip select by shifting a dummy “1” into the DI pin. The DO
pin will enter the high impedance state on the rising edge of
the clock (SK). Placing the DO pin into the high impedance
state is recommended in applications where the DI pin and
the DO pin are to be tied together to form a common DI/O
pin.
The format for all instructions sent to the device is a
logical “1” start bit, a 2−bit (or 4−bit) opcode, 8−bit address
(an additional bit when organized X8) and for write
operations a 16−bit data field (8−bit for X8 organizations).
The instruction format is shown in Instruction Set table.
Data
x16
A7−A0
A7−A0
A7−A0
D7−D0
D15−D0
x8
(Note 10)
x16
Comments
Read Address AN – A0
Clear Address AN – A0
Write Address AN – A0
Write Enable
Write Disable
Clear All Addresses
D7−D0
D15−D0
Write All Addresses
11XXXXXX
00XXXXXX
10XXXXXX
01XXXXXX
10. The x8 memory organization is available for the CAT93C66 only.
http://onsemi.com
4
CAT93C66, CAT93W66
Read
Upon receiving a READ command and an address
(clocked into the DI pin), the DO pin of the CAT93C66,
CAT93W66 will come out of the high impedance state and,
after sending an initial dummy zero bit, will begin shifting
out the data addressed (MSB first). The output data bits will
toggle on the rising edge of the SK clock and are stable after
the specified time delay (t
PD0
or t
PD1
).
For the CAT93C66, CAT93W66 after the initial data word
has been shifted out and CS remains asserted with the SK
clock continuing to toggle, the device will automatically
increment to the next address and shift out the next data word
in a sequential READ mode. As long as CS is continuously
asserted and SK continues to toggle, the device will keep
incrementing to the next address automatically until it
reaches to the end of the address space, then loops back to
address 0. In the sequential READ mode, only the initial data
word is preceeded by a dummy zero bit. All subsequent data
t
SKHI
SK
t
DIS
DI
t
CSS
CS
t
DIS
DO
VALID
words will follow without a dummy zero bit. The READ
instruction timing is illustrated in Figure 3.
Erase/Write Enable and Disable
The device powers up in the write disable state. Any
writing after power−up or after an EWDS (erase/write
disable) instruction must first be preceded by the EWEN
(erase/write enable) instruction. Once the write instruction
is enabled, it will remain enabled until power to the device
is removed, or the EWDS instruction is sent. The EWDS
instruction can be used to disable all CAT93C66,
CAT93W66 write and erase instructions, and will prevent
any accidental writing or clearing of the device. Data can be
read normally from the device regardless of the write
enable/disable status. The EWEN and EWDS instructions
timing is shown in Figure 4.
t
SKLOW
t
CSH
t
DIH
VALID
t
PD0
, t
PD1
DATA VALID
t
CSMIN

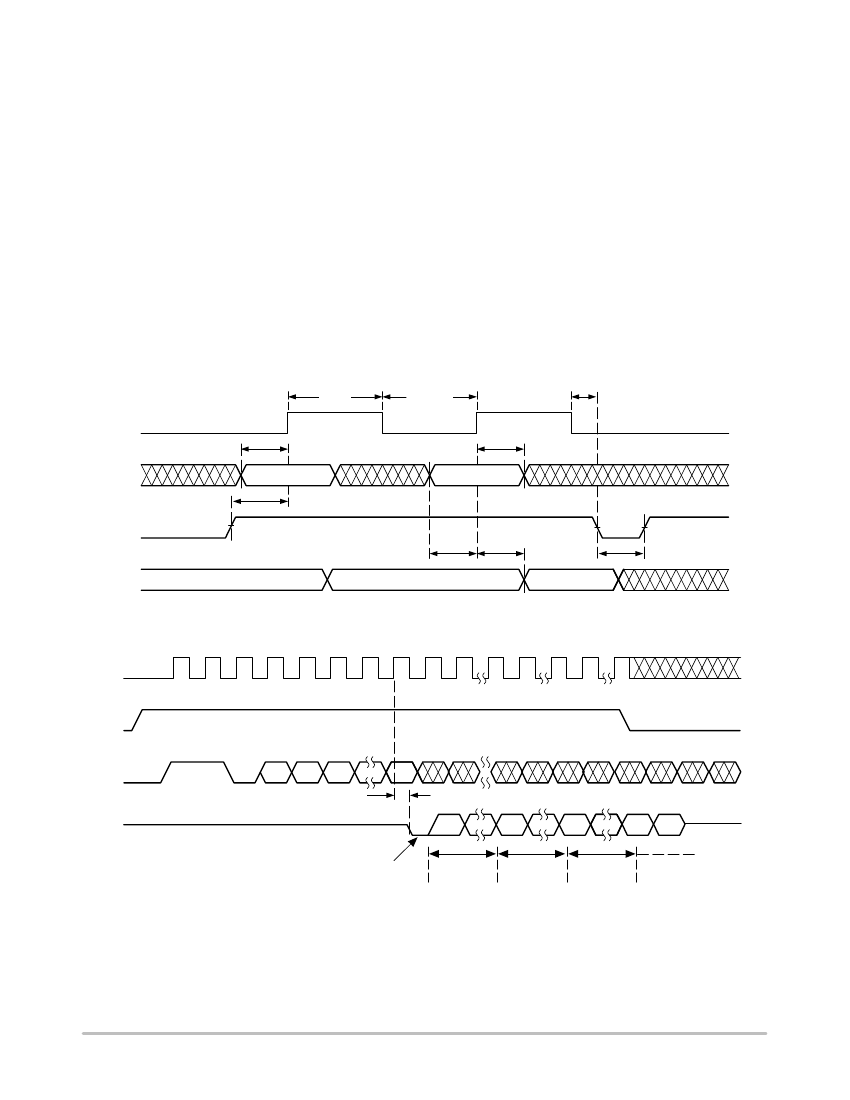

Figure 2. Synchronous Data Timing
SK
CS
Don’t Care
A
N
DI
1
1
0
t
PD0
DO
HIGH−Z
A
N−1
A
0
Dummy 0
D
15 . . .
D
0
or
D
7 . . .
D
0
Address +
1
D
15 . . .
D
0
or
D
7 . . .
D
0
Address +
2
D
15 . . .
D
0
or
D
7 . . .
D
0
Address + n
D
15 . . .
or
D
7 . . .
Figure 3. READ Instruction Timing
http://onsemi.com
5
京公网安备 11010802033920号
EEWORLD
