CALL 512-863-5585
x6464

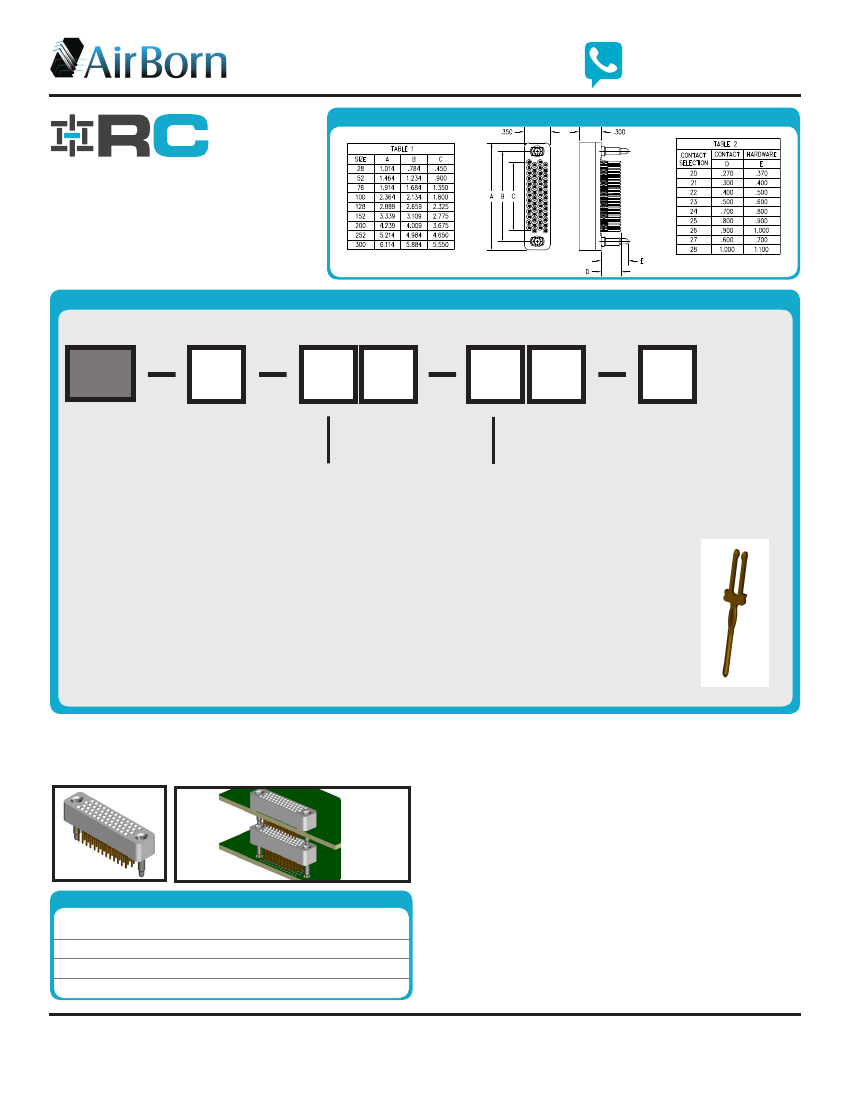

DIMENSIONS
CONTACT CUSTOMER SERVICE
STACKABLE, PRESS-FIT,
COMPLIANT PIN/SOCKET
A high-density press-fit mounted connector
using patented stacking contacts consisting of
a female/compliant/male configuration used in
board-to-board stacking applications.
Contact spacing: 0.075” (1.91 mm)
ORDER FORM
ENTER
CODE
ENTER
CODE
ENTER
CODE
Sample Part Number Format: RC422-052-211-4000
ENTER
CODE
ENTER
CODE
ENTER
CODE
RC422
SERIES
Stackable
Compliant
Full-Profile
4 Rows
0.075” Spacing
CONFIGURATION
028 – 4 Rows/7 Col
052 – 4 Rows/13 Col
076 – 4 Rows/19 Col
100 – 4 Rows/25 Col
128 – 4 Rows/32 Col
152 – 4 Rows/38 Col
200 – 4 Rows/50 Col
252 – 4 Rows/63 Col
300 – 4 Rows/75 Col
PLATING
1
–
50 µ” Au
TYPE
00
–
None
FT
–
Female Thread
MT
–
Male Thread
(-39 hardware, only)
HARDWARE
39 - 0.370” Long (use with -20 contact)
40 - 0.400” Long (use with -21 contact)
41 - 0.500” Long (use with -22 contact)
42 - 0.600” Long (use with -23 contact)
43 - 0.800” Long (use with -24 contact)
44 - 0.900” Long (use with -25 contact)
45 - 1.000” Long (use with -26 contact)
46 - 0.700” Long (use with -27 contact)
47 - 1.100” Long (use with -28 contact)
VARIATION
Blank
–
None
XXX
–
Consult Factory
CONTACT
20 - 0.270” Long
21 - 0.300” Long
22 - 0.400” Long
23 - 0.500” Long
24 - 0.700” Long
25 - 0.800” Long
26 - 0.900” Long
27 - 0.600” Long
28 - 1.000” Long
MATED HEIGHT
The connector body height is 0.300” and, when used with the -20 or -30 (0.270”) contact, the
mounting is flush (board-bottom-mounted to connector top). This board-bottom to connector-top
spacing can be modified based on the contact selected by approximately the difference in pin
length . See Table 2 .
MATERIALS & FINISHES
Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . . BeCu per ASTM B768 (BeCu C17410 brush alloy 174)
Contact Finish: . . . . . . . . . . . . . . . . . . . . . . Gold per MIL-G-45204 over nickel per IAW QQ-N-290
Molded Insulator: . . . . . . . . . . . . . . . . .
Glass-filled polyphenylene sulfide (PPS) per MIL-M-24519
Hardware: . . . . . . . . . . . . . . . . . . . . . . . Stainless steel per ASTM A582, passivated per ASTM 967
Guide Pin/Socket:
. . . . . . . . . . . . . . . . . . .
BeCu per ASTM B196/197, nickel-plated per QQ-N-290
NOTE: AirBorn can manufacture special configurations to your exact specifications.
PERFORMANCE
SI DATA – Differential 100 Ohm
1
2
3
4
Diff . Insertion Loss
Diff . Return Loss
NEXT
FEXT
REQUIREMENTS
ACTUAL
5 .0 GHz @ -3 dB
2 .0 GHz @ -8 dB
4 .0 GHz @ -25 dB
4 .0 GHz @ -35 dB
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 amperes
Operating Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65° C to +125° C
Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC
Durability: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 connector mating cycles
Contact Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to 5 milliohms (contact length-dependent)
Contact Engagement Force: . . . . . . . . . . . . . . . . . . . . .
4.0 oz (113 g) max. w/0.0246” dia. test pin
Contact Separation Force: . . . . . . . . . . . . . . . . . . . . . . . .
0.5 oz (14 g) min. w/0.0226” dia. test pin
Compliant Insertion Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 .5 lb (10 .21 Kg) max . per contact
Compliant Removal Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 .5 lb (2 .04 Kg) min . per contact
NOTE: Performance values are estimates. Actual values will be determined when final
product testing is complete.
PATENT PENDING
www.AIRBORN.com
( 512 ) 863-5585
PRELIMINARY RELEASE
2012-June-19
