3-1622820-6

Description
RESISTOR, METAL GLAZE/THICK FILM, 1W, 5%, 200ppm, 300ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size123KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-1622820-6 Overview

RESISTOR, METAL GLAZE/THICK FILM, 1W, 5%, 200ppm, 300ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT

3-1622820-6 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1645687367
package instruction, 2512
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial number3520
Installation featuresSURFACE MOUNT
Number of terminals2
Package shapeRECTANGULAR PACKAGE
method of packingTR
Rated power dissipation(P)1 W
resistance300 Ω
Resistor typeFIXED RESISTOR
size code2512
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient200 ppm/°C
Terminal shapeWRAPAROUND
Tolerance5%
C orporate Hom e
|
Electronic Components
|
Se gm e nts
|
W ho W e Are
My Account
Searc h
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Resistors
>
Product Feature Selector
> Product Details

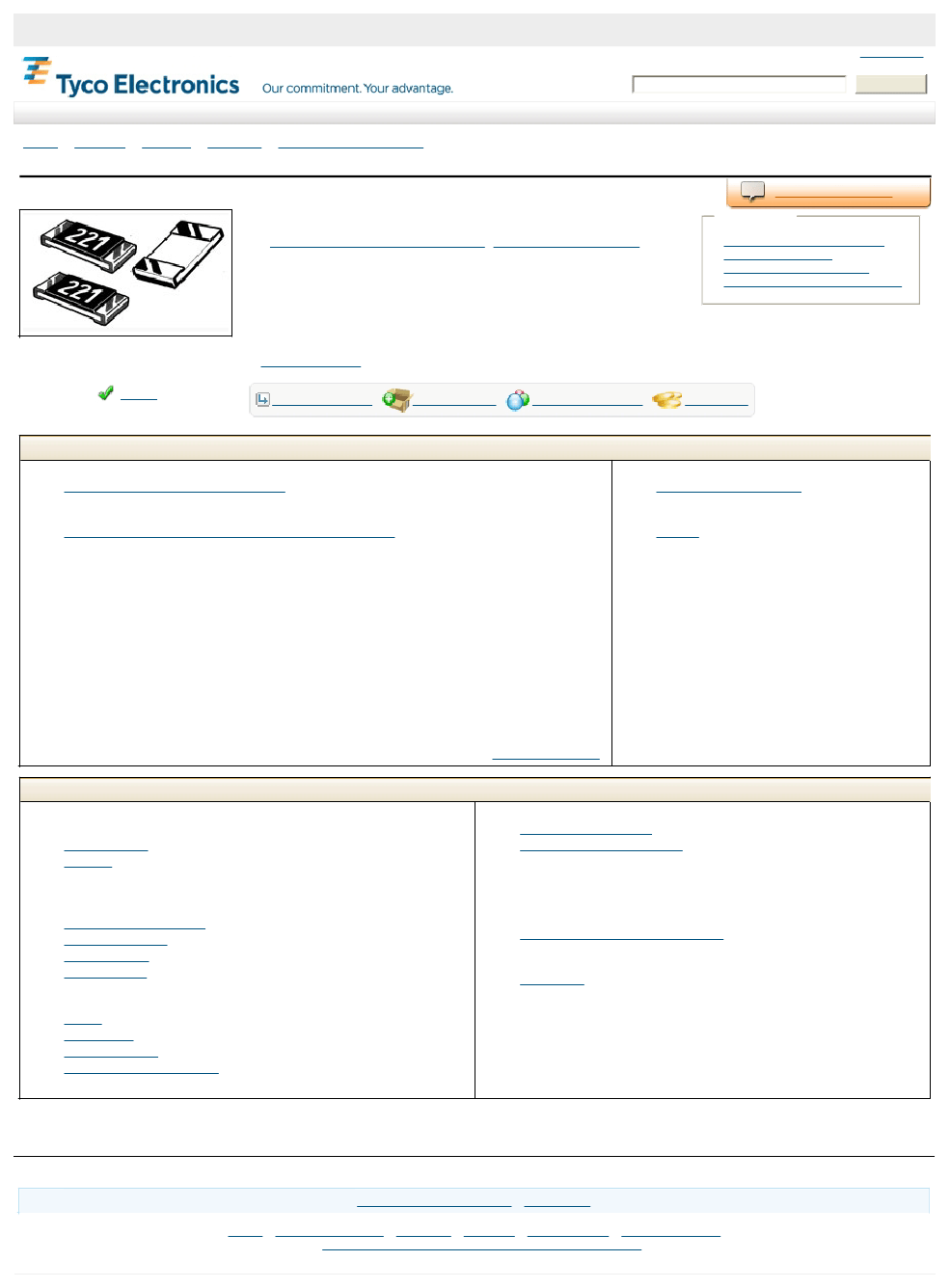

3520300RJT Product Details
Live Product Chat
Fixed Resistors
C onve rte d to EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
3520300RJT
(3-1622820-6)
T E I nternal N umber: 3 - 1 6 2 2 8 2 0 - 6
Product Highlights:
l
Resistor Type = Power Resistor
l
Resistance Selection = <1K ?
l
Resistance = 300 ?
l
Power Rating = 1.00 W
l
Tolerance = 5 %
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
SMD POWER RESISTOR SERIES 3520
(PDF, English)
Catalog Pages/Data Sheets:
l
SMD Power Resistors - Type 3520 Series - Tyco Electr...
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Resistor Type = Power Resistor
l
Resistance (?)
= 300
l
Element
= Thick Film
l
Termination Type = Solder
Electrical Characteristics:
l
Resistance Selection (?)
= <1K
l
Power Rating (W)
= 1.00
l
Tolerance (%)
= 5
l
Package Type
= Taped and Reeled
Body Related Features:
l
Series
= 3520
l
Mount Style
= Surface Mount
l
Packaging Style
= 2512
l
Package, C omponent Size
= 6.4 x 3.2
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Reflow solder capable to 245?C ,
Reflow solder capable to 260?C
l
RoHS/ELV C ompliance History = C onverted to comply with RoHS
directive
Conditions for Usage:
l
Temperature C oefficient (ppm/?C )
= ?200
Operation/Application:
l
Application
= Power
Other:
l
Brand = C GS
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
