UBJ26-141UBR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> UBJ26-141UBR

UBJ26-141UBR: DescriptionRF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerTrompeter Electronics

Download Datasheet Parametric View All

UBJ26-141UBR Overview

RF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

UBJ26-141UBR Parametric

Parameter Name	Attribute value
Objectid	1980795905
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CAPTIVE CENTER CONTACT
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

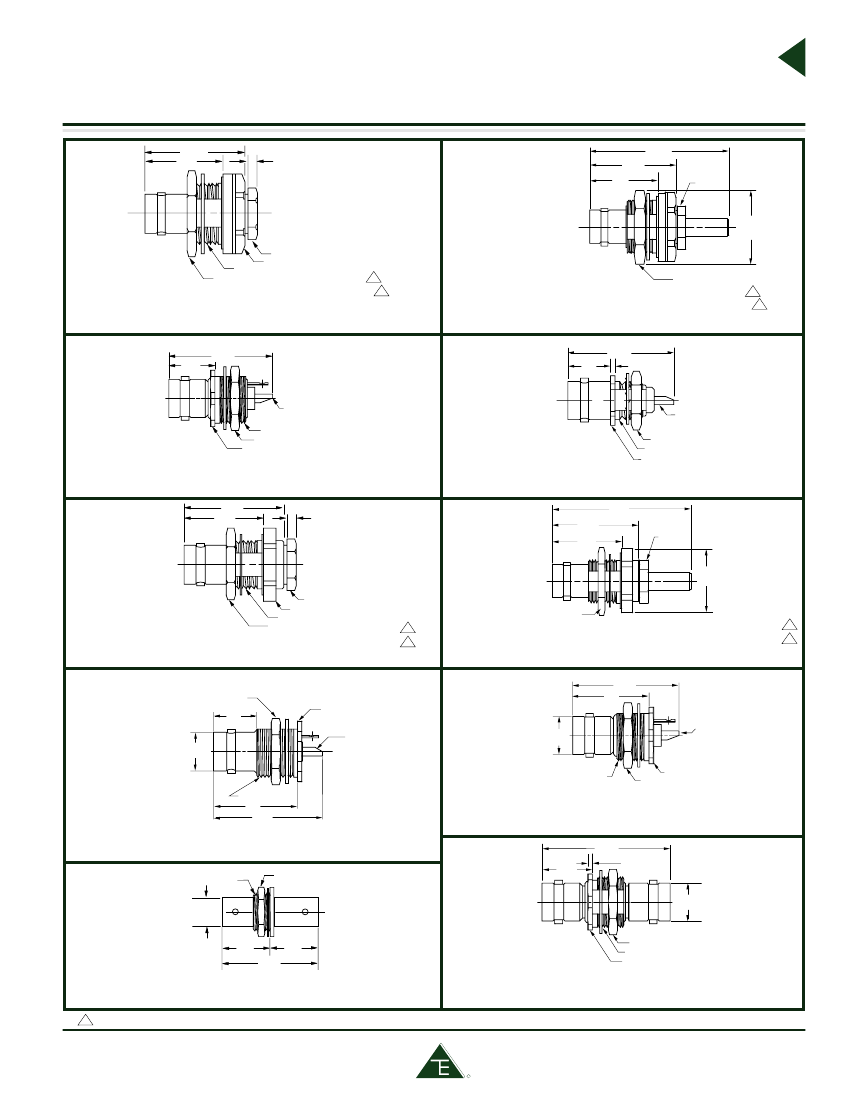

Miniature coax 20/220 series, bnc bulkhead jacks

BJ26-1 Shown

1.000

.790

BJ226-001 Shown

1.626

1.000

.790

.437 HEX

.096

.830

DIA

MAX

Insulated

Bulkhead

Cable Jack

.437 HEX

.830 DIA MAX

.625-24UNEF-2A

.750 HEX NUT

50Ω

Wrench Crimp, Rear mount

Mounting Hole:

D2.187

GF-Ground

filter version page 31.

BJ27 Shown

75Ω

BJ26-

UBJ26-

Insulated Bulkhead

Cable Jack

.750 HEX NUT

50Ω

BJ226-

Rear Mount, Tool Crimp

75Ω

UBJ226-

Mounting Hole:

D2.187,GF-Ground filter version page 31.

1.060

.471

.425

1.058

.046

ACCEPTS

.060 DIA

CONDUCTOR

Bulkhead Jack

Front Mount, Solder pot

Insulated

Bulkhead Jack

Front Mount , Solder pot

Mounting Hole:

D3.147

BJ29-1 Shown

1.000

.806

.500-28UNEF-2A

.562 HEX NUT

ACCEPTS

.060 DIA

CONDUCTOR

.500 HEX

.375-32UNEF-2A

.468 HEX

50Ω

75Ω

BJ20

UBJ20

50Ω

75Ω

BJ27

UBJ27

w/ Solder Lug

Mounting Hole:

D5.125

BJ229-001 Shown

1.000

.806

1.625

50Ω

BJ20SL

75Ω

UBJ20SL

.096

.437 HEX

.750

DIA

Bulkhead

Cable Jack

Rear Mount, Wrench Crimp

.437HEX

.687 HEX

.500-28UNEF-2A

.625 HEX

.625 HEX NUT

50Ω

75Ω

Mounting Holes:

D3.218 (D2.218-Cable Groups 6, 6E,51,52)

BJ23 Shown

BJ29-

UBJ29-

Bulkhead Cable Jack

Rear Mount, Tool Crimp

Mounting Hole:

D3.218

1.060

50Ω

75Ω

BJ229-

UBJ229-

.562 HEX NUT

.414

.562 HEX

.757

.380

DIA

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

.380

DIA

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

.500-28UNEF-2A

Insulated

Bulkhead Cable Jack

Rear mount, solder pot

Mounting Hole:

D3.147

BJ28 Shown

.500-28UNEF-2A

.562 HEX

.562 HEX NUT

Bulkhead Jack

50Ω

BJ23

75Ω

UBJ23

Mounting Hole:

D3.147

.500-28UNEF-2A

.813

1.060

50Ω

75Ω

BJ21

UBJ21

1.280

.505

.046

.562 HEX

.380 DIA

TYP

.380 DIA

TYP

Bulkhead Jack

Feed-Through

Non-Insulated

.700

1.284

.584

BJ24

50Ω

75Ω

UBJ24

Mounting Hole:

DD3.100, (Hermetically sealed version available, call factory).

- Refers to Cable Group Table, see pages 68-73. "D" mounting holes are on page 45.

Insulated

Bulkhead Jack

50Ω

BJ28

Feed-through

75Ω

UBJ28

Mounting Hole:

D3.156 (Hermetically sealed version available, call factory).

GF-Ground

Filter version available page 31.

.562 HEX NUT

.500-28UNEF-2A

.562 HEX

Trompeter Mil/Aero Products Catalog

ISO 9001

Registered

(800) 982-2629

Fax: (818) 706-1040
