5962-8971201YA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8971201YA

5962-8971201YA: DescriptionStandard SRAM, 16KX4, 45ns, CMOS, CDFP28, CERPACK-28; Categorystorage storage; File Size229KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8971201YA Overview

Standard SRAM, 16KX4, 45ns, CMOS, CDFP28, CERPACK-28

5962-8971201YA Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	DFP
package instruction	DFP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	45 ns
Other features	AUTOMATIC POWER-DOWN
JESD-30 code	R-GDFP-F28
JESD-609 code	e0
length	18.288 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	28
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.144 mm
Base Number Matches	1

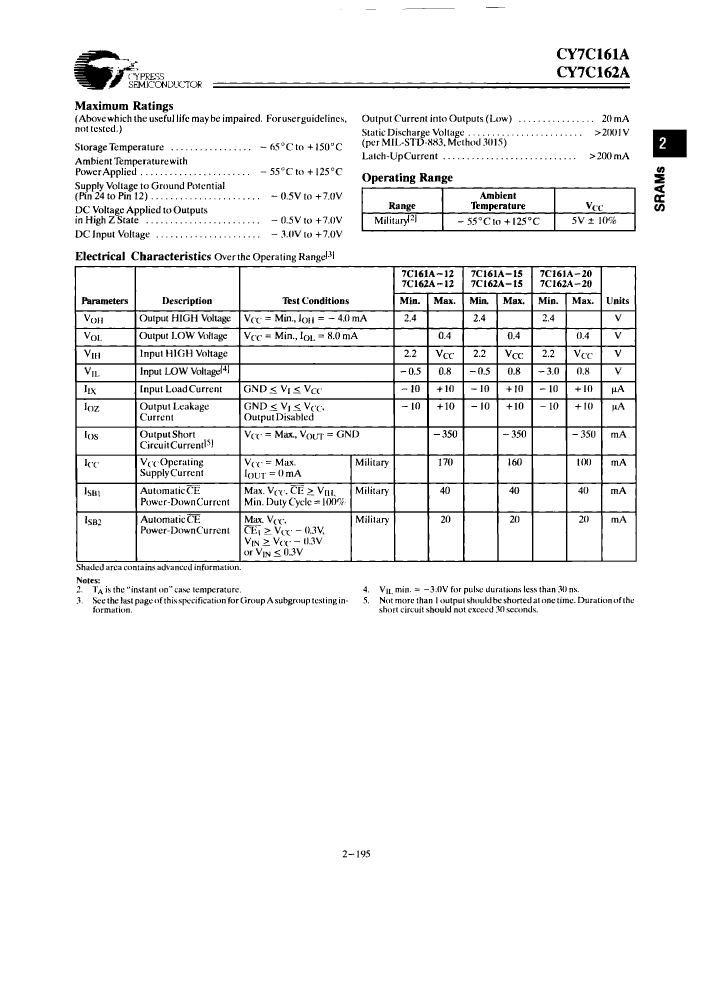

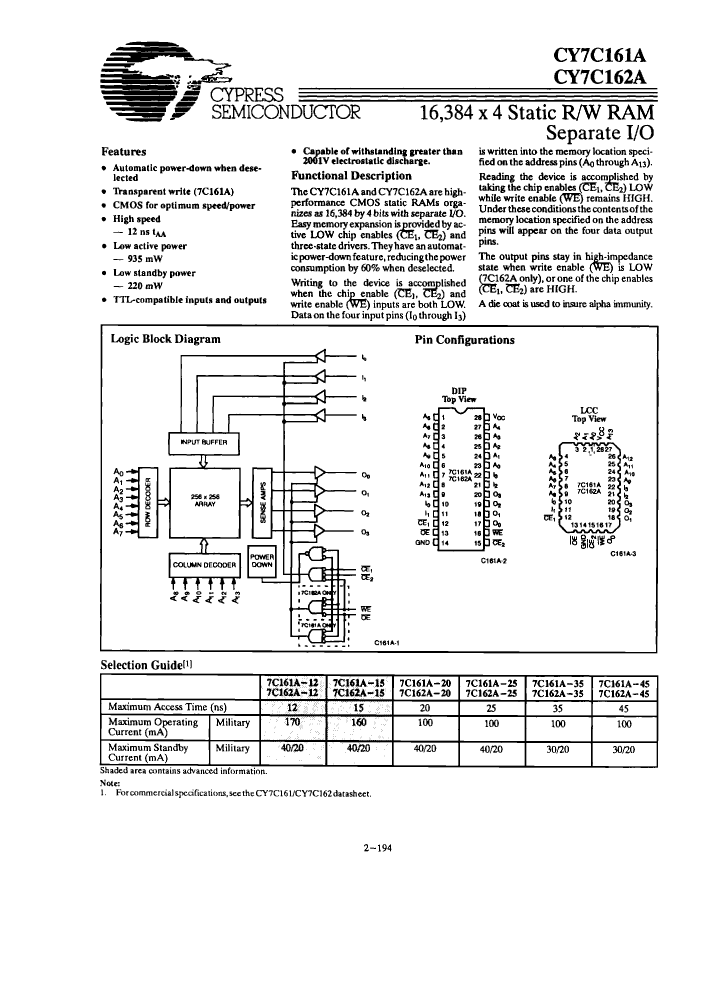

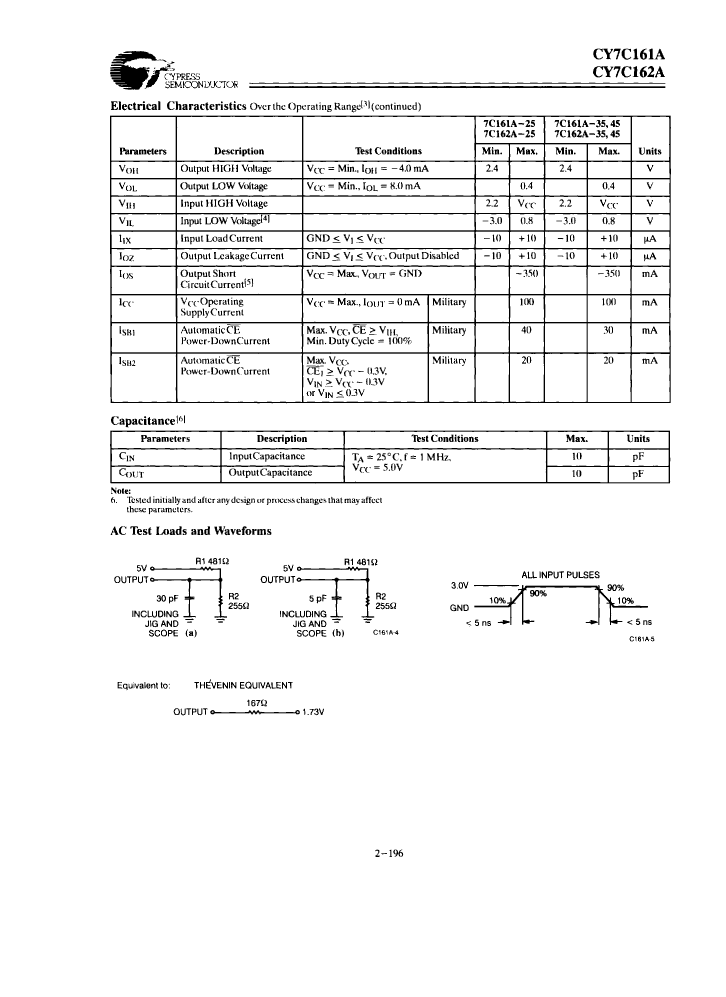

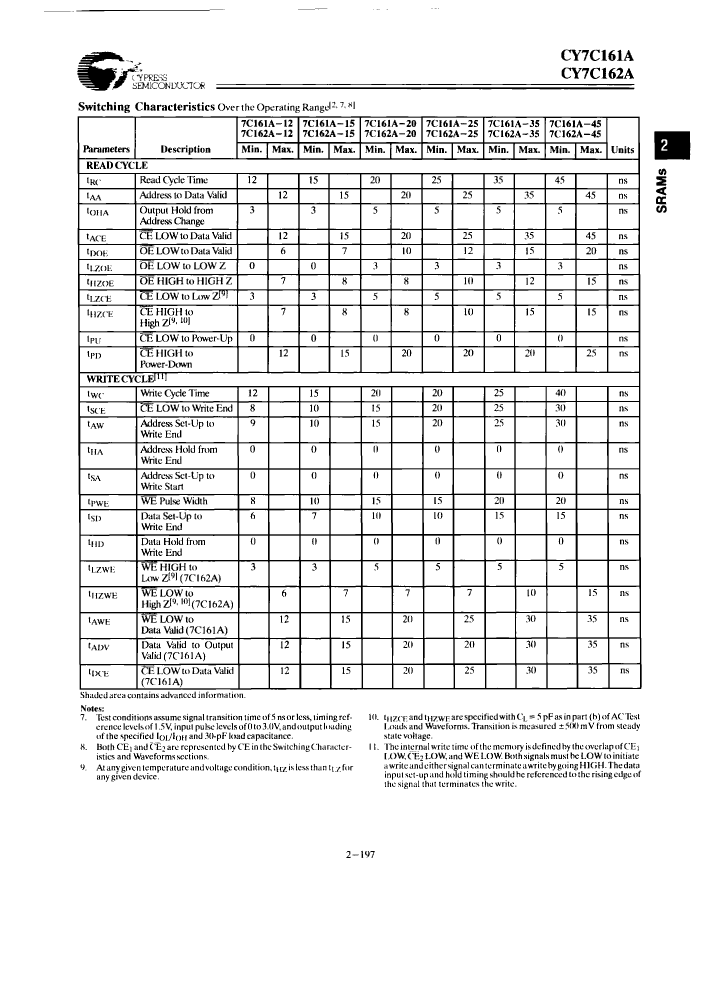

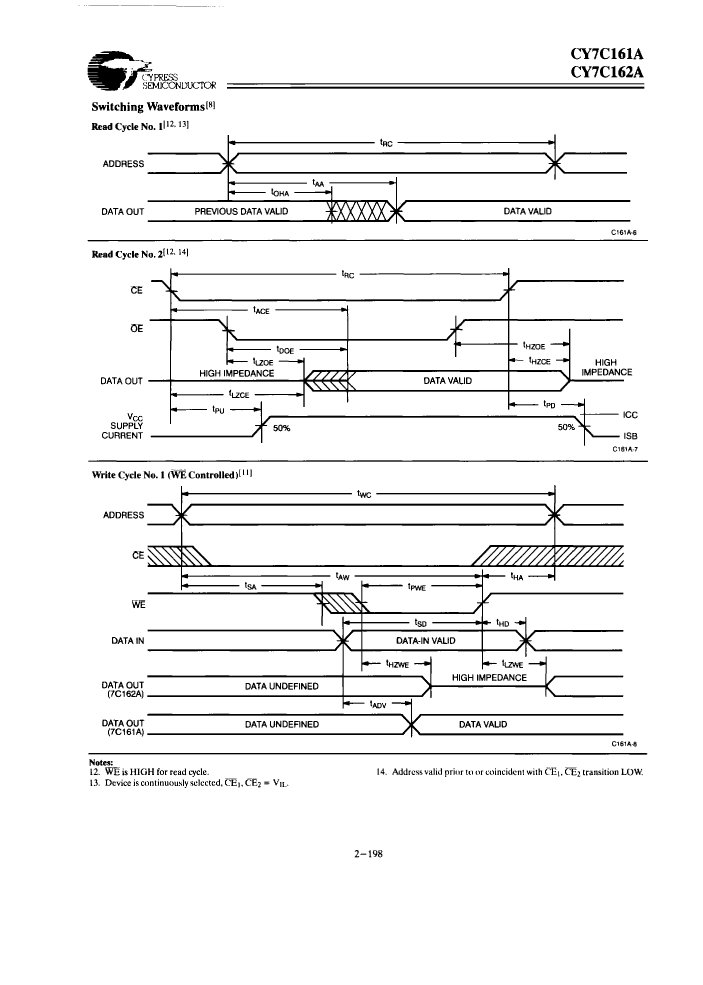

Preview

Download Datasheet

View All

5962-8971201YA Related Products

	5962-8971201YA	5962-8971201ZA	5962-8971202YA	5962-8971204YA	5962-8971203YA	5962-8971201XA
Description	Standard SRAM, 16KX4, 45ns, CMOS, CDFP28, CERPACK-28	Standard SRAM, 16KX4, 45ns, CMOS, CQCC28, CERAMIC, LCC-28	Standard SRAM, 16KX4, 35ns, CMOS, CDFP28, CERPACK-28	Standard SRAM, 16KX4, 20ns, CMOS, CDFP28, CERPACK-28	Standard SRAM, 16KX4, 25ns, CMOS, CDFP28, CERPACK-28	Standard SRAM, 16KX4, 45ns, CMOS, CDIP28, 0.300 INCH, CERDIP-28
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	DFP	QLCC	DFP	DFP	DFP	DIP
package instruction	DFP,	QCCN,	DFP,	DFP,	DFP,	DIP,
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	45 ns	45 ns	35 ns	20 ns	25 ns	45 ns
Other features	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN
JESD-30 code	R-GDFP-F28	R-CQCC-N28	R-GDFP-F28	R-GDFP-F28	R-GDFP-F28	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	18.288 mm	13.97 mm	18.288 mm	18.288 mm	18.288 mm	37.0205 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DFP	DFP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	1.905 mm	2.286 mm	2.286 mm	2.286 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	NO LEAD	FLAT	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
width	9.144 mm	8.89 mm	9.144 mm	9.144 mm	9.144 mm	7.62 mm
Base Number Matches	1	1	1	1	1	-
