LH7A400 CARD ENGINE
CARD ENGINE ADVANTAGE
Reduce TIme to Market
→ 6 to 9 month savings
Product-Ready Hardware Platform
Production Quality Software
Engineering Support

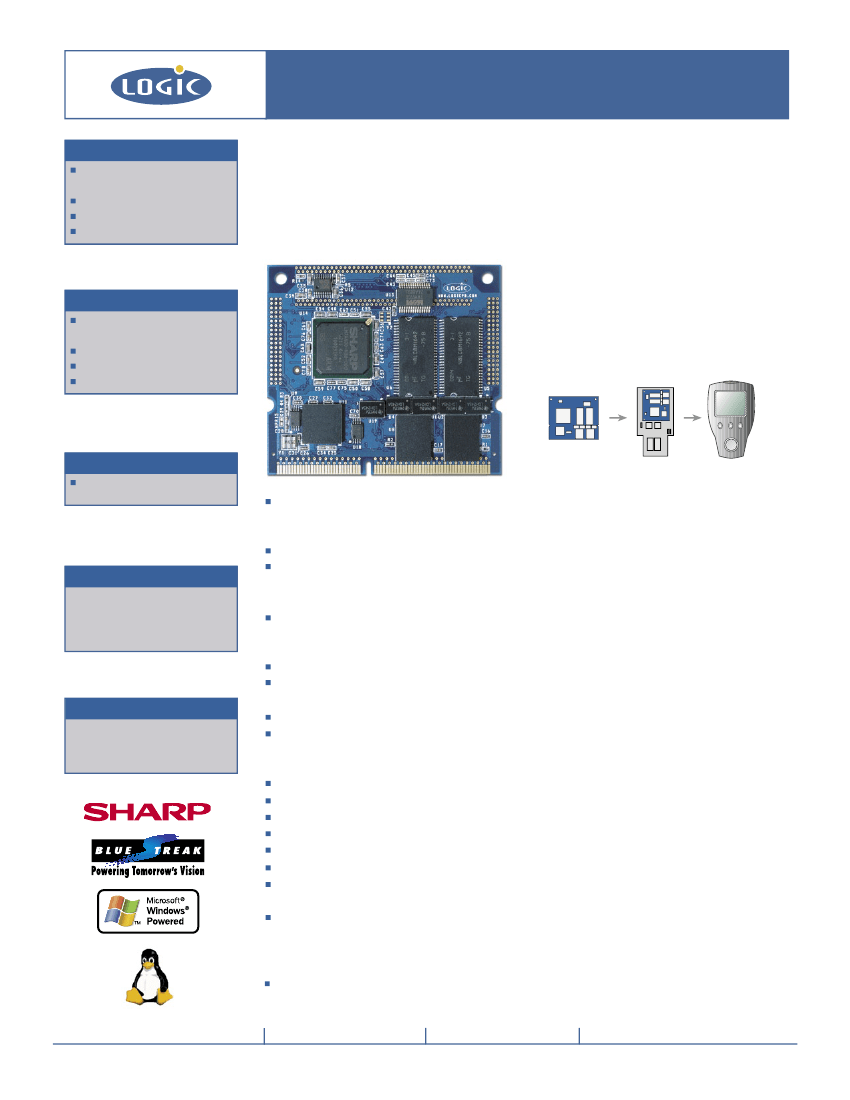

The LH7A400 Card Engine is a compact, product-ready hardware and software solution for
developing embedded products with
less time, less cost, less risk ... more innovation.
The use of custom application/peripheral boards make the Card Engine the ideal foundation
for OEMs developing embedded computing products. The Card Engine includes BSPs that
integrate seamlessly with OS development tools. The Card Engine provides a common
reference pin-out on its expansion connectors, which enables customers to easily migrate to
next generation microprocessors and technology, when new functionality or performance is
required.
PRODUCT HIGHLIGHTS
Ready to run Windows CE BSP
Bootloader/Monitor
Board Support Packages
Custom Linux or Windows CE
device driver deveopment
®
LH7A400
Card Engine
Custom
Baseboard
Final
Product
ORDERING INFORMATION
Zoom Starter Development Kit
(Model # SDK-LH7A400-10-6416)
TM
CUSTOMER SUPPORT
Logic provides technical support
for Application Development
Kits. Various support packages
are available; contact us for more
information.
CONTACT
For more information on our
Embedded Product Solutions,
please contact Logic Sales at
www.logicpd.com or 612.672.9495.
Processor
Sharp LH7A400 32 bit ARM922TDMI RISC microprocessor
- Running up to 200 MHz (0 to 70 Degrees C) with 100 MHz bus speed
- Running up to 166 MHZ (-40 to 85 Degrees C) with 83 MHz bus speed
SDRAM Memory
32 or 64 MBytes
Flash Memory
NOR or NAND
- 0, 16, or 32 Mbytes NOR
- 0, 64, or 128 Mbytes NAND
Display
Programmable color LCD controller
- Built in driver supports up to 800 x 600 x 16 bpp color (1024 x 768 x 8 bit color)
- Supports STN, Color STN, HR-TFT, AD-TFT, TFT
Touch Screen
Four wire resistive touch controller (ADS7843)
Network Support
10/100 BASE-T Ethernet controller (application/debug)
- SMSC LAN 91C111 (MAC & PHY)
Audio
Audio Codec (Wolfson WM9708)
Memory Card Expansion
- CompactFlash Type 1 card (memory mode only)
- Smart Card Interface (ISO7816)
- MMC
- PCMCIA of CF (2 slots)
USB
1 device interface (USB 2.0 Full Speed)
Serial Ports
3 X 16C550 like, standard UARTS
IrDA
SIR supports up to 115.2 Kbps
GPIO
Programmable depending on peripheral requirements
SPI
Real TIme Clock
Software
- BSPs: Windows CE, Linux
1
, VxWorks
1
-LogicLoader
TM
(bootloader/monitor)
Mechanical
- Compact Size: 2.37” (60.2 mm) long x 2.67” (67.8 mm) wide x 0.17” (4.4 mm) high
- 144 pin SODIMM Connector for connection to custom peripheral board
- Two high density 80-pin expansion connectors for peripheral access
Application Development Kits
- Zoom
TM
Starter Development Kit
- Zoom
TM
Integrated Development Kit (Avail Q3’ 04)
1
Third Party ports available from Sharp
BSP
S
& SOFTWARE
SYSTEM ON MODULES
PRODUCT DEVELOPMENT SERVICES
PN: 70000028 Rev F
Actual Size (2.37” x 2.67”)
APPLICATION DEVELOPMENT KITS
© 2004 LOGIC PRODUCT DEVELOPMENT
411 WASHINGTON AVE N SUITE 101 MINNEAPOLIS MN 55401 TEL:612.672.9495 FAX: 612.672.9489 WWW.LOGICPD.COM
WWW.LOGICPD.COM

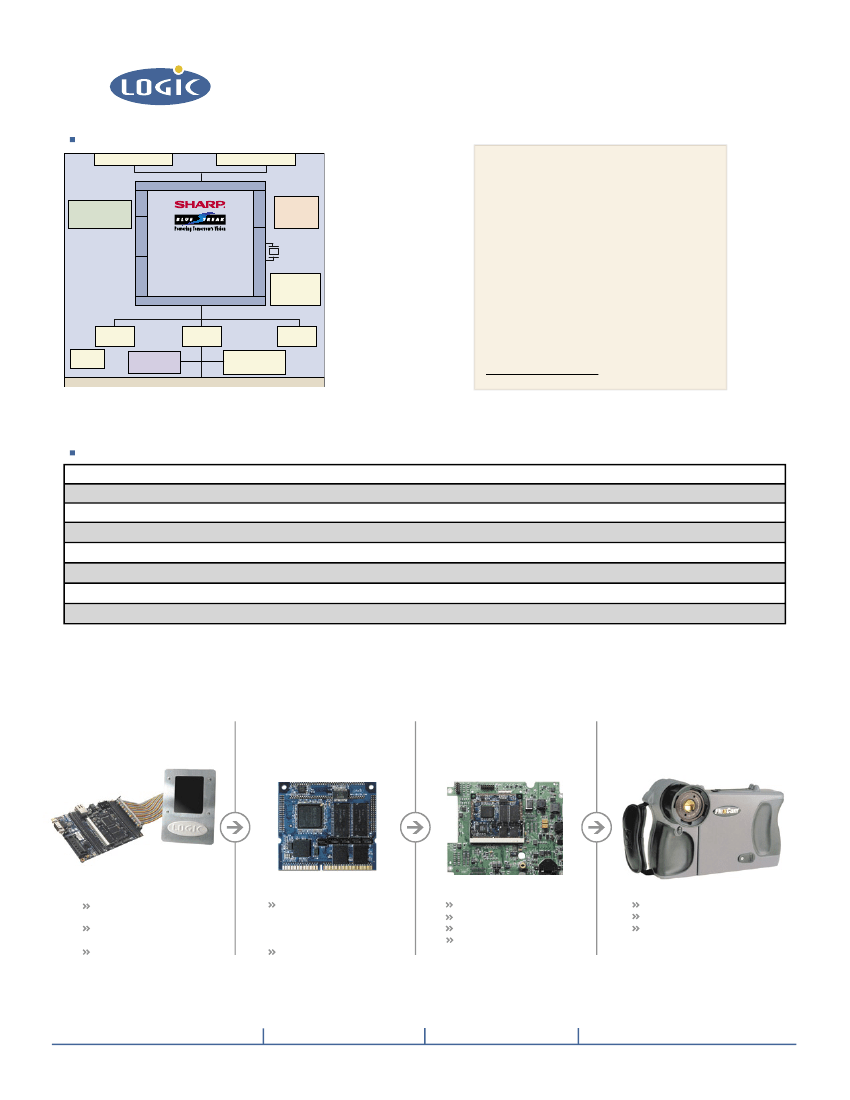

System on Module Block Diagram
EXP CONNECTOR #1
EXP CONNECTOR #2
The Card Engine CPLD provides the following
functionality:
- CF Card Support (memory mode only)
- ISA-like bus interface
- SMSC LAN91C111 wired LAN bus interface and power
control logic
- Buffer control logic
- Chip select decoder logic
- Flash program control logic
- Processor mode control logic
- IC code revision register
- PCMCIA Support logic
The CPLD code is available free of charge for customers
designing the Card Engine into their final product or for
purchase if implementing in a custom board solution.
Please contact Logic Sales at
product.sales@logicpd.com for more information.
PERIPHERALS
INT
TOUCHSCREEN
CONTROLLER
DMA
(optional)
AUDIO
CODEC
J TA G
UART
LH7A400
CONFIG
ASYNC/SYNC BUS INTERFACE
RES ETS &
POWER
MONITORING
CPLD
POWER
IN
0-32Mb
FLASH
BUFFERS
ETHERNET
16-64Mb
SDRAM
10/100 Base
-T
(optional)
144 Pin SODIMM CONNECTOR
Actual size (60.2mm x 67.8 mm)
Standard System on Module Configuration
Logic Model Number
CENGLH7A400-10-400BC
CENGLH7A400-10-403EC
CENGLH7A400-10-402HC
CENGLH7A400-10-503HC
CENGLH7A400-10-504HC
CENGLH7A400-10-402HI
CENGLH7A400-10-504HI
SDRAM
32
32
32
64
64
32
64
Nor Flash (MB)
0
16
8
16
32
8
32
NAND Flash (MB)
0
0
0
0
0
0
0
Ethernet
-
-
Y
Y
Y
Y
Y
Audio
-
Y
Y
Y
Y
Y
Y
Touch
Y
Y
Y
Y
Y
Y
Y
Temp. Rating
0 to 70 deg C
0 to 70 deg C
0 to 70 deg C
0 to 70 deg C
0 to 70 deg C
-40 to 85 deg C
-40 to 85 deg C
Please contact Logic for custom configurations and availability
System on Module Advantage:
Less time, less cost, less risk ... More Innovation
Zoom™ Starter Development
Kit (SDK)
Card Engine
(with common footprint)
Custom Baseboard
(with Card Engine)
Final Product
SDKs simplify:
Application specific code
development
Evaluation of the MCU /
System on Module
The transfer of application
code, OS and BSPs into
production
Card Engine complete with:
Board Support Packages
(Windows CE, Linux, and
other RTOS)
Bootloader provides in-
field device management,
manufacturing, and test
capabilities
Baseboard provides:
Power
Connectors
Custom peripherals
Custom form factor
Final Product results:
Accelerated time to market
Reduced development cost
Customer focuses on core
competencies
APPLICATION DEVELOPMENT KITS
BSP
S
& SOFTWARE
SYSTEM ON MODULES
PRODUCT DEVELOPMENT SERVICES
PN: 70000028 Rev F
© 2004 LOGIC PRODUCT DEVELOPMENT
411 WASHINGTON AVE N SUITE 101 MINNEAPOLIS MN 55401 TEL:612.672.9495 FAX: 612.672.9489 WWW.LOGICPD.COM
