DS2502/T&R datasheet, PDF - EEWORLD Datasheet

DS2502/T&R: DescriptionIC otp 1kbit to92-3; Categorystorage storage; File Size479KB，1 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

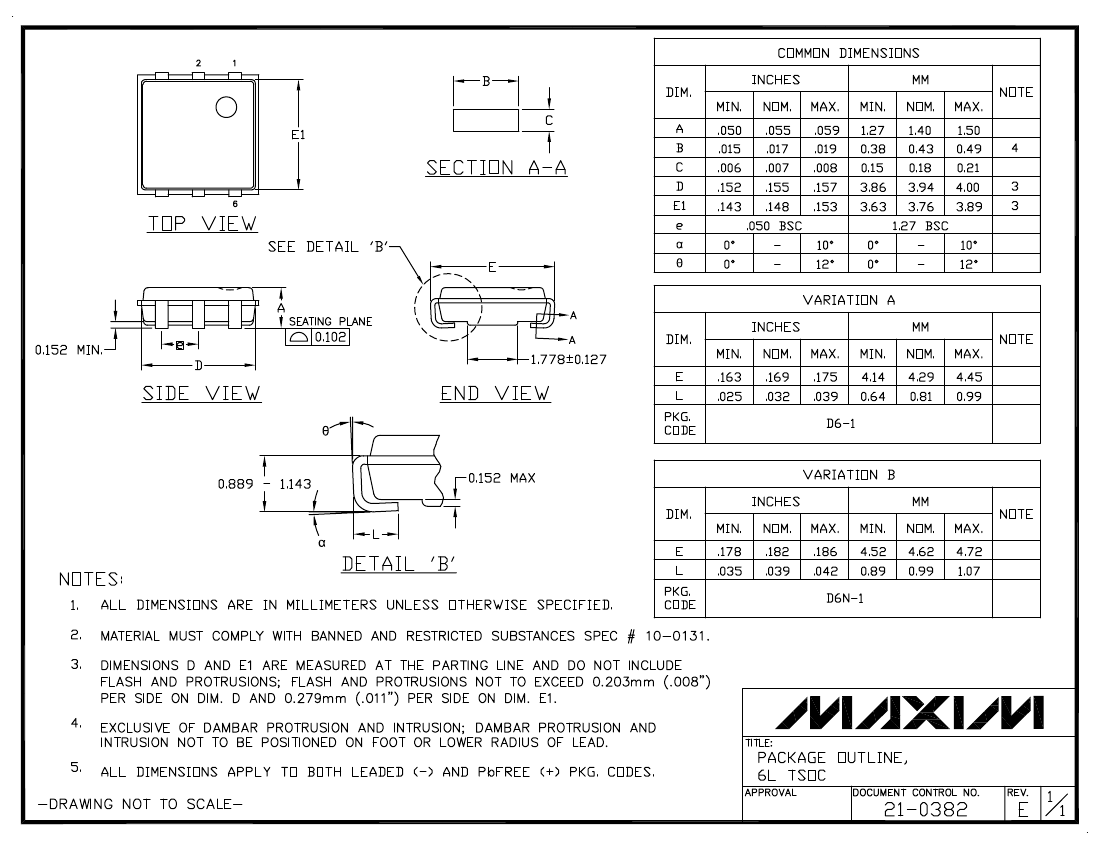

Download Datasheet Parametric View All

DS2502/T&R Overview

IC otp 1kbit to92-3

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	TO-92
package instruction	TO-92, SIP3,.1,50
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	15000 ns
Other features	MICROLAN COMPATIBLE
I/O type	COMMON
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
memory density	1024 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	3
word count	128 words
character code	128
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	240
power supply	3/5 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	20

EDEN CHEN

04/12/11
