Marketing Bulletin
DATE:
TO:
FROM:
RE:
March 6, 2003
Affected Customers
Mark Stoner
Product Termination
To all concerned parties,
This bulletin is to notify all customers of the termination of the following Ecliptek series
effective March 1
st
, 2002:
Series
ES11C7
ES13C7
Description
Ceramic 5 x 7 x 1.2mm (VC)TCXO, 5V
Ceramic 5 x 7 x 1.2mm (VC)TCXO, 3.3V
Because of the circumstances surrounding this termination, there will be no end-of-life
policy exercised. The series will be terminated with no purchasing or lifetime buy
window available. The recommended alternative to the ES13C7 is the ES52C8 series.
There will be no replacement for the ES11C7. All of us at Ecliptek Corporation
apologize for any inconvenience this may have caused and can assure you we are
taking measures to insure this will not happen again in the future.
Best Regards,
Mark W. Stoner
Director of Marketing
Ecliptek Corporation
3545 CADILLAC AVENUE
•
COSTA MESA, CA 92626-1401
•
(714) 433-1200
•
Fax (714) 433-1234
ES11C7
Series
• Temperature Compensated Crystal
Oscillator (TCXO)
• Clipped Sinewave Output
• 5.0V Supply Voltage
• Ceramic 8-pad SMD package
• Stability to 1.5ppm
• External voltage control option available
NOTES
ES11C7
H 1.8
L 7.0
W 5.0
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
OBSOLETE
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Nominal Frequency
Storage Temperature Range
Operating Temperature Range
Supply Voltage (V
DD
)
Load Drive Capability
Input Current
Aging (at 25ºC)
External Trim (Voltage Control Option)
Output Voltage
Frequency Stability
vs. Operating Temperature Range
vs. Frequency Tolerance (25°C ±2°C)
vs. Input Voltage (±5%)
vs. Load (±1kΩ//±1pF)
Start Up Time
Harmonics
2nd Harmonic
3rd Harmonic
Other
Typical Phase Noise
At offset of 10Hz
At offset of 100Hz
At offset of 1kHz
At offset of 10kHz
At offset of 100kHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
13.0MHz, 19.2MHz, 19.68MHz, or 19.8MHz
-30°C to 85°C
See Table 1
5.0V
DC
±5%
10kOhms // 10pF
2.0mA Maximum
±1ppm / Year Maximum
1.5V
DC
±1.0V
DC
; Positive Transfer Characteristic
±8ppm Minimum
1.0Vp-p Clipped Sinewave Minimum
See Table 1
±2.0ppm Maximum
±0.3ppm Maximum
±0.2ppm Maximum
5mSec Maximum
-3dBc Maximum
-6dBc Maximum
-10dBc Maximum
-80dBc/Hz Maximum
-125dBc/Hz Maximum
-145dBc/Hz Maximum
-148dBc/Hz Maximum
-150dBc/Hz Maximum
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
ES11C7
CERAMIC
5.0V
OS94
09/02
800-ECLIPTEK www.ecliptek.com for latest revision
168
Specifications subject to change without notice.
PART NUMBERING GUIDE
ES11C7 C 25 V - 13.000M TR
OPERATING TEMP. RANGE
One Letter Code Per Table 1
FREQUENCY STABILITY
Two Digit Code Per Table 1
OUTPUT CONTROL FUNCTION
N=None (No Connection on Pin 1)
V=Voltage Control
PACKAGING OPTIONS
Blank=Bulk
TR=Tape and Reel
FREQUENCY
OBSOLETE

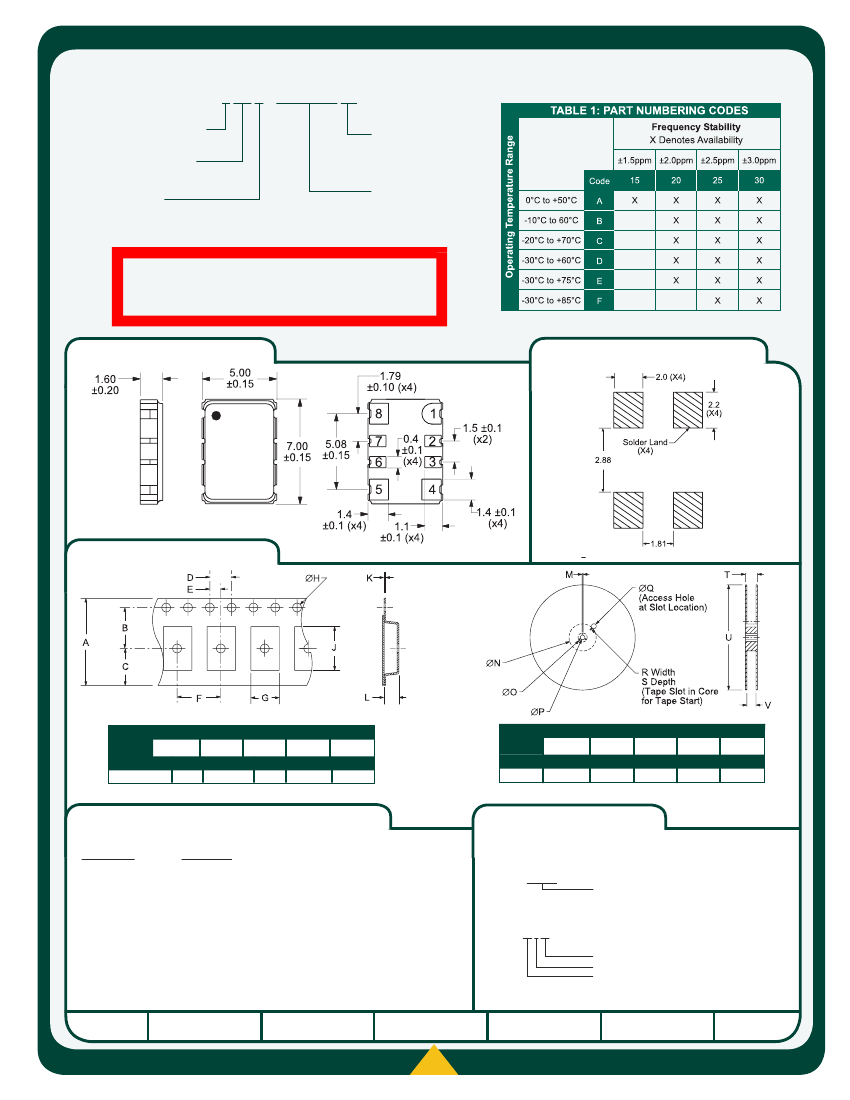

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Control Voltage or No Connection
Pin 4: Case Ground
Pin 6-7: No Connection
Pin 2-3: No Connection
Pin 5: Output
Pin 8: Supply Voltage
Tolerances= +0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
Seal Integrity
Solderability
Marking Permanency
Shock
Thermal Shock
Specification
Bubble test in Perfluorocarbon at +125°C ±5°C for 60 seconds
minimum.
Sn63 Solder dip at +230°C ±5°C for 5 seconds/95% coverage.
10 Strokes with brush after 1 minute soak in solvent, 3 times.
Random drop on hard wooden plate 3 times from a height
of 50cm.
300 Cycles from -55°C to +125°C, 5 minute dwell
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
ES11C7
CERAMIC
5.0V
OS94
09/02
800-ECLIPTEK www.ecliptek.com for latest revision
169
Specifications subject to change without notice.
ES13C7
Series
• Temperature Compensated Crystal
Oscillator (TCXO)
• Low Voltage Clipped Sinewave Output
• 3.0V Supply Voltage
• Ceramic 8-pad SMD package
• Stability to 1.5ppm
• External voltage control option available
NOTES
ES13C7
H 1.8
L 7.0
W 5.0
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
OBSOLETE
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Nominal Frequency
Storage Temperature Range
Operating Temperature Range
Supply Voltage (V
DD
)
Load Drive Capability
Input Current
Aging (at 25ºC)
External Trim (Voltage Control Option)
Output Voltage
Frequency Stability
vs. Operating Temperature Range
vs. Frequency Tolerance (25°C ±2°C)
vs. Input Voltage (±5%)
vs. Load (±1kΩ//±1pF)
Start Up Time
Harmonics
2nd Harmonic
3rd Harmonic
Other
Typical Phase Noise
At offset of 10Hz
At offset of 100Hz
At offset of 1kHz
At offset of 10kHz
At offset of 100kHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
13.0MHz, 19.2MHz, 19.680MHz, or 19.8MHz
-30°C to 85°C
See Table 1
3.0V
DC
±5%
10kOhms // 10pF
2.0mA Maximum
±1ppm / Year Maximum
1.5V
DC
±1.0V
DC
; Positive Transfer Characteristic
±8ppm Minimum
0.7Vp-p Clipped Sinewave Minimum
See Table 1
±2.0ppm Maximum
±0.3ppm Maximum
±0.2ppm Maximum
5mSec Maximum
-3dBc Maximum
-6dBc Maximum
-10dBc Maximum
-80dBc/Hz Maximum
-125dBc/Hz Maximum
-145dBc/Hz Maximum
-148dBc/Hz Maximum
-150dBc/Hz Maximum
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
ES13C7
CERAMIC
3.0V
OS95
09/02
800-ECLIPTEK www.ecliptek.com for latest revision
170
Specifications subject to change without notice.
PART NUMBERING GUIDE
ES13C7 C 25 V - 13.000M TR
OPERATING TEMP. RANGE
One Letter Code Per Table 1
FREQUENCY STABILITY
Two Digit Code Per Table 1
EXTERNAL TRIM
N=None (No Connection on Pin 1)
V=Voltage Control
PACKAGING OPTIONS
Blank=Bulk
TR=Tape and Reel
FREQUENCY
OBSOLETE
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Control Voltage or No Connection
Pin 4: Case Ground
Pin 6-7: No Connection
Pin 2-3: No Connection
Pin 5: Output
Pin 8: Supply Voltage
Tolerances= +0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
Seal Integrity
Solderability
Marking Permanency
Shock
Thermal Shock
Specification
Bubble test in Perfluorocarbon at +125°C ±5°C for 60 seconds
minimum.
Sn63 Solder dip at +230°C ±5°C for 5 seconds/95% coverage.
10 Strokes with brush after 1 minute soak in solvent, 3 times.
Random drop on hard wooden plate 3 times from a height
of 50cm.
300 Cycles from -55°C to +125°C, 5 minute dwell
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
ES13C7
CERAMIC
3.0V
OS95
09/02
800-ECLIPTEK www.ecliptek.com for latest revision
171
Specifications subject to change without notice.
