3461-0241 datasheet, PDF - EEWORLD Datasheet

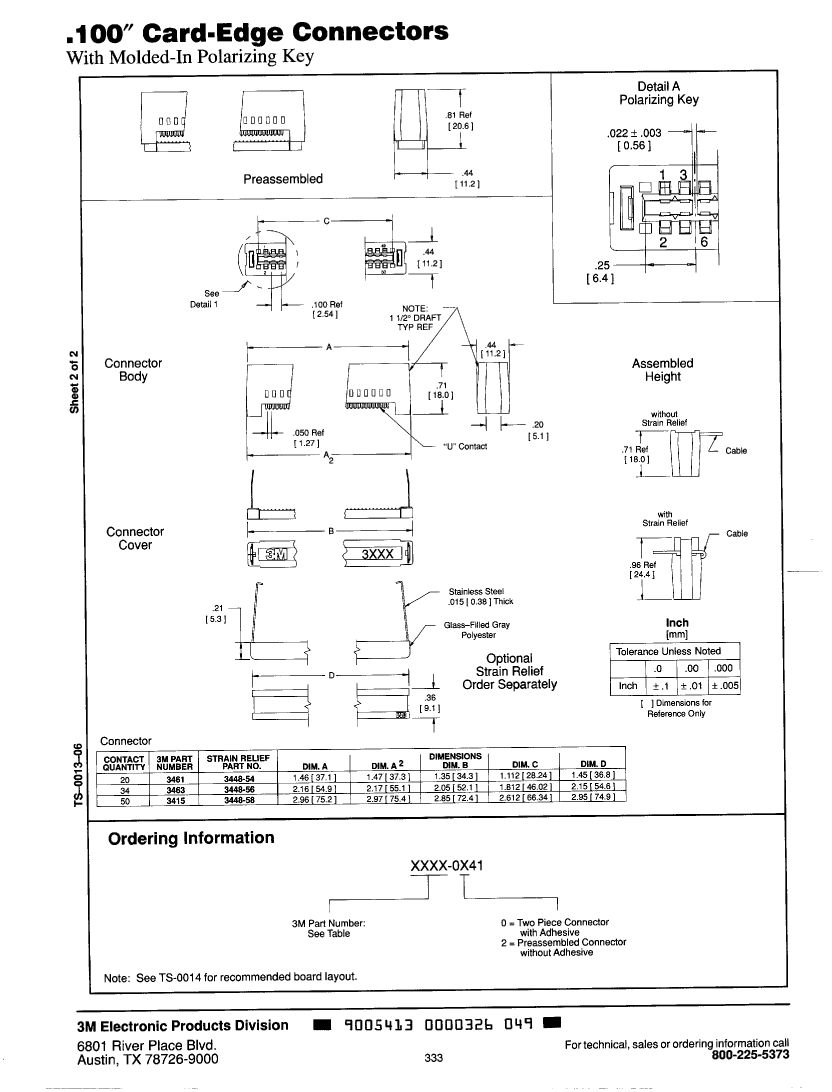

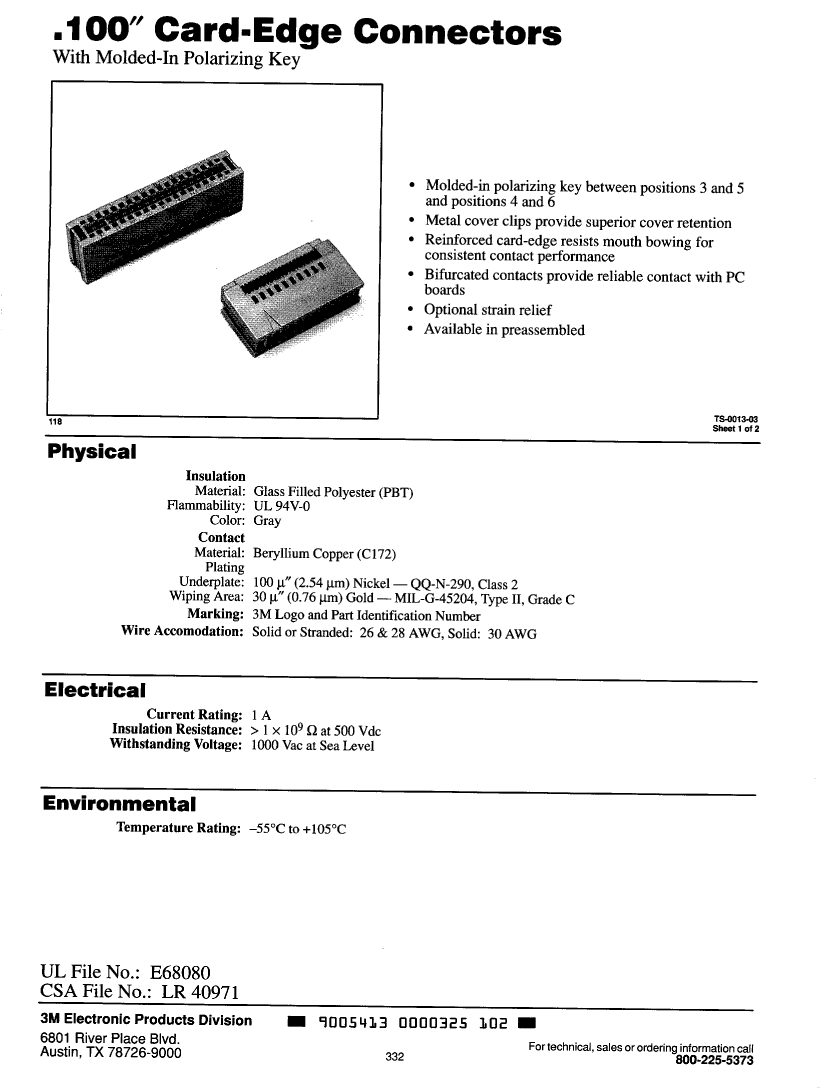

3461-0241: DescriptionEDGE CONNECTOR,CABLE MNT,20 CONTACTS,2; CategoryThe connector The connector; File Size141KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

3461-0241 Overview

EDGE CONNECTOR,CABLE MNT,20 CONTACTS,2

Parameter Name	Attribute value
Objectid	301998219
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.44 inch
subject depth	0.81 inch
body length	1.47 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3461
Plug contact pitch	0.1 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
Total number of contacts	20
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG

	3461-0241	3415-0241	3463-0241
Description	EDGE CONNECTOR,CABLE MNT,20 CONTACTS,2	EDGE CONNECTOR,CABLE MNT,50 CONTACTS,2	EDGE CONNECTOR,CABLE MNT,34 CONTACTS,2
Reach Compliance Code	unknown	unknown	unknown
Other features	NONE	NONE	NONE
body width	0.44 inch	0.44 inch	0.44 inch
subject depth	0.81 inch	0.81 inch	0.81 inch
body length	1.47 inch	2.97 inch	2.17 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	3461	3415	3463
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA
Total number of contacts	20	50	34
Maximum wire diameter	26 AWG	26 AWG	26 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG
Objectid	301998219	-	301998220
ECCN code	EAR99	-	EAR99
