215316-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 215316-7

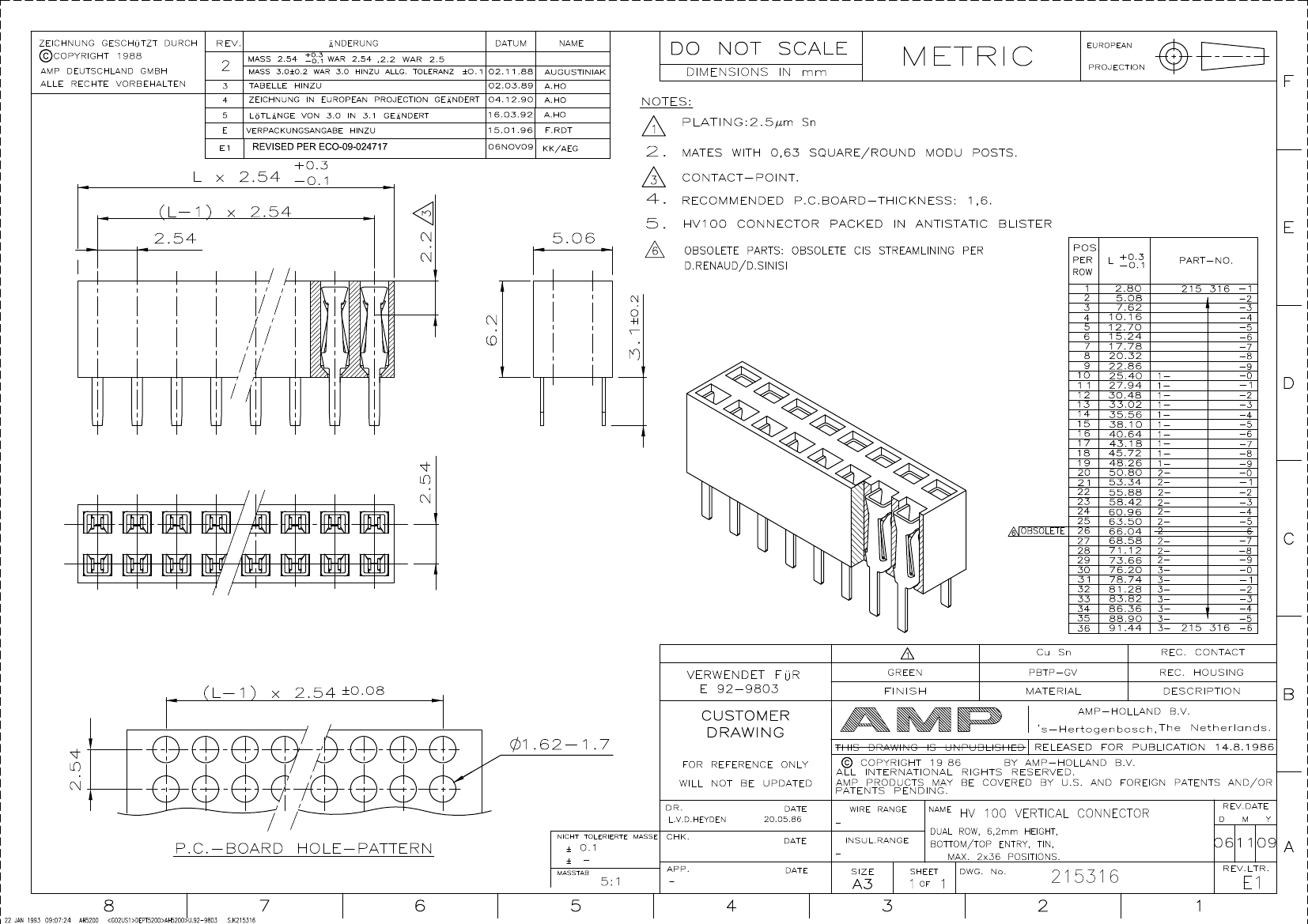

215316-7: Description14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

215316-7 Overview

14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

215316-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BOTTOM/TOP ENTRY
body width	0.199 inch
subject depth	0.244 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	215316
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	98u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

215316-7 Related Products

	215316-7	215316-8	2-215316-0	215316-9	3-215316-6	RM222-030-282-6440	215316-4	215316-5
Description	14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	18 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	72 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug	8 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	incompatible	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BOTTOM/TOP ENTRY	BOTTOM ENTRY/TOP ENTRY	BOTTOM ENTRY/TOP ENTRY	BOTTOM ENTRY/TOP ENTRY	BOTTOM/TOP ENTRY	WITH MOUNTING EARS	BOTTOM/TOP ENTRY	BOTTOM ENTRY/TOP ENTRY
body width	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.2 inch	0.199 inch	0.199 inch
subject depth	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.585 inch	0.244 inch	0.244 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	TIN LEAD	TIN	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	RND PIN-SKT	BELLOWED TYPE	BELLOWED TYPE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	POLYETHYLENE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	YES	NO	NO
Manufacturer's serial number	215316	215316	215316	215316	215316	RM2	215316	215316
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.075 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.075 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	RECTANGULAR	RECTANGULAR
Plating thickness	98u inch	98u inch	98u inch	98u inch	98u inch	50u inch	98u inch	98u inch
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MIL-C-55302	COMMERCIAL	COMMERCIAL
Terminal length	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.625 inch	0.122 inch	0.122 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER	SOLDER
Total number of contacts	14	16	40	18	72	30	8	10
DIN compliance	NO	NO	NO	NO	NO	-	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	-	750VAC V	750VAC V
Filter function	NO	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	-	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	-	GREEN	GREEN
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	-	NO	NO
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Guideline	UL	UL	UL	UL	UL	-	UL	UL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0
Base Number Matches	1	1	1	1	1	-	-	-
