399-40-038-00-310000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 399-40-038-00-310000

399-40-038-00-310000: DescriptionBoard Connector, 38 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size245KB，11 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

399-40-038-00-310000 Overview

Board Connector, 38 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

399-40-038-00-310000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	399
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	38
Base Number Matches	1

Preview

Download Datasheet

View All

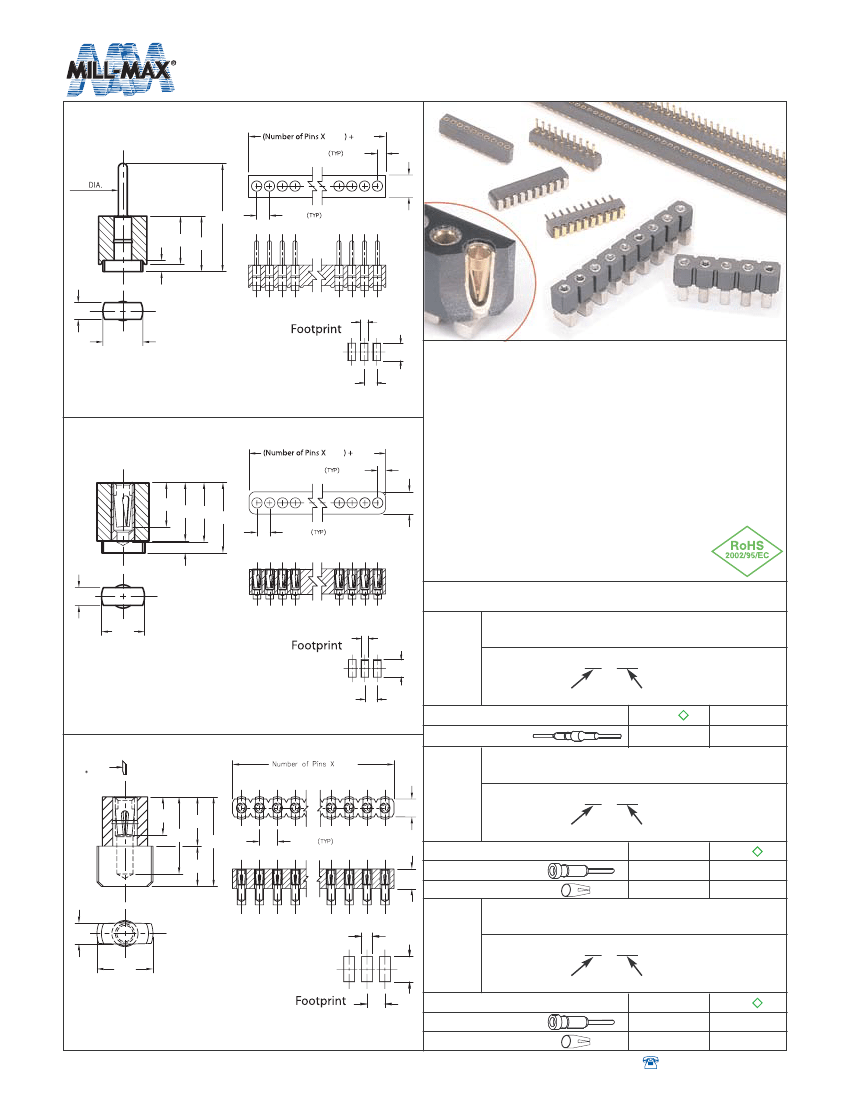

INTERCONNECTS

1,27 & 2,54 Grid

Surface Mount Headers and Sockets

1,27

0,38

0,83

Series 340, 399

0,41

2,21

4,95

2,21

2,54

1,27

0,51

0,76

1,02

1,83

2,03

●

Fig. 1

1,27

Series 340 and 399 interconnects are single row headers and

sockets having unique surface mount “block” terminals.

“Block” termination makes the interconnects “self-standing”.

This also minimizes profile and reduces the footprint

compared with traditional “gull wing” designs.

Series 399 are a matched pair of 1,27 pitch sockets and

headers with a mated height of only 5,54.

Series 340 is a 2,54 pitch SIP socket using Mill-Max #30

contact (Data on page 208). The profile is only 5,08.

Insulators are high temp. thermoplastic,

suitable for all soldering processes.

1,27

0,30

0,79

●

1,91

2,21

2,49 2,54

3,0

1,27

0,51

0,76

Ordering Information

1,83

1,02

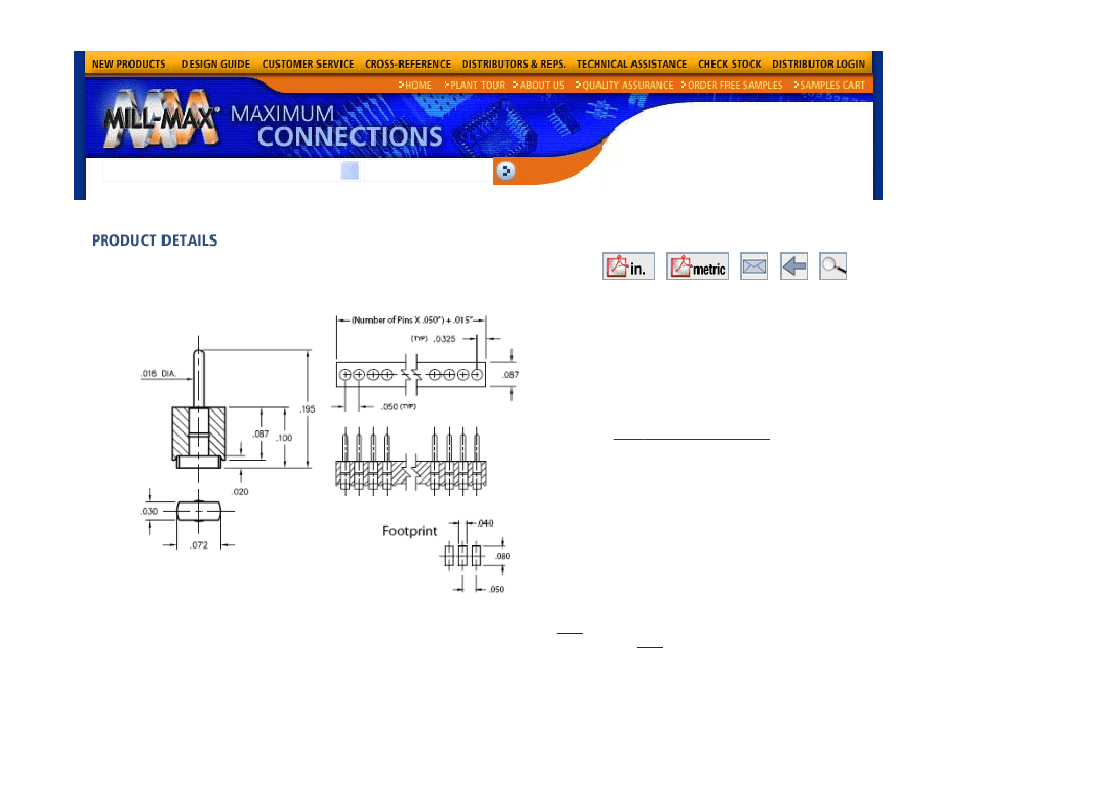

Single Row Header, 1,27 Grid

Fig. 1

399-10-0XX-00-310000

Plating Code

PLATING CODE

2,03

Fig. 2

1,27

Specify # of pins

02-50



0,25µm Au

Pin Plating

0,38 - 0,64

0,25 0,46

2,54

Single Row Socket, 1,27 Grid

Fig. 2

399-XX-0XX-21-300000

Plating Code

SPECIFY PLATING CODE XX=

2,54

2,11

4,37

2,79

5,08

2,29

2,79

2,54

Specify # of pins

02-50

5,08µm Sn/Pb

0,25µm Au



5,08µm Sn

0,25µm Au

Sleeve (Pin)

Contact (Clip)

Single Row Socket, 2,54 Grid

1,17

1,42

Fig. 3

3,3

340-XX-1XX-30-780100

Plating Code

Specify # of pins

02-64

5,08µm Sn/Pb

3,18

Fig. 3

w w w. m i l l - m a x . c o m

2,54

SPECIFY PLATING CODE XX=



5,08µm Sn

Sleeve (Pin)

Contact (Clip)

72.1



516-922-6000
