MB2085SS1A13-BA datasheet, PDF

MB2085SS1A13-BA: DescriptionPushbutton Switch, DPDT, On-on, Alternate, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size1MB，8 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

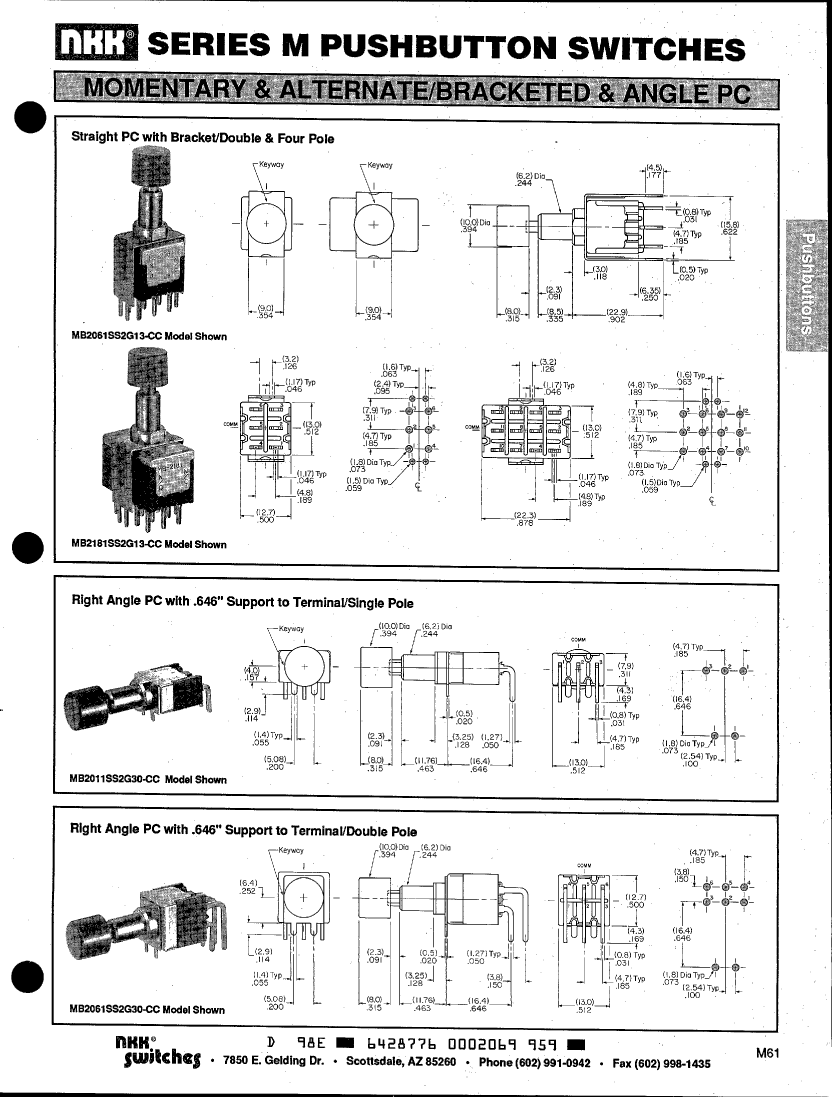

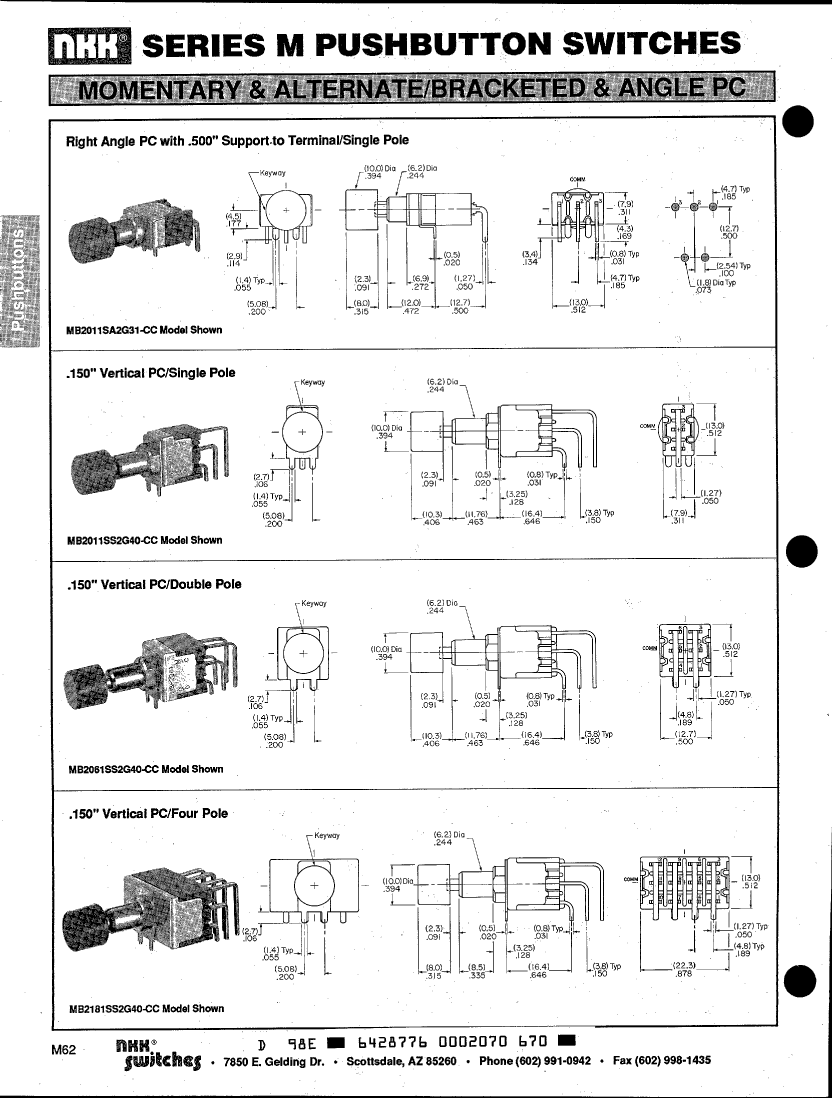

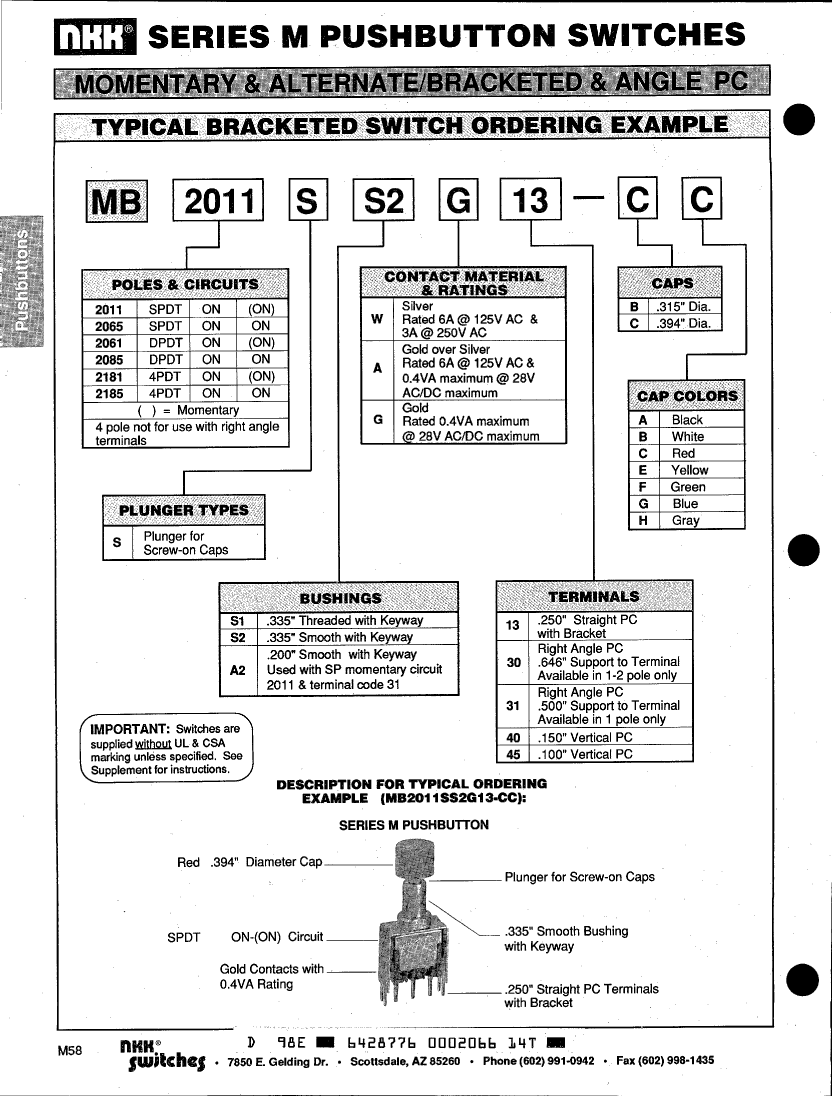

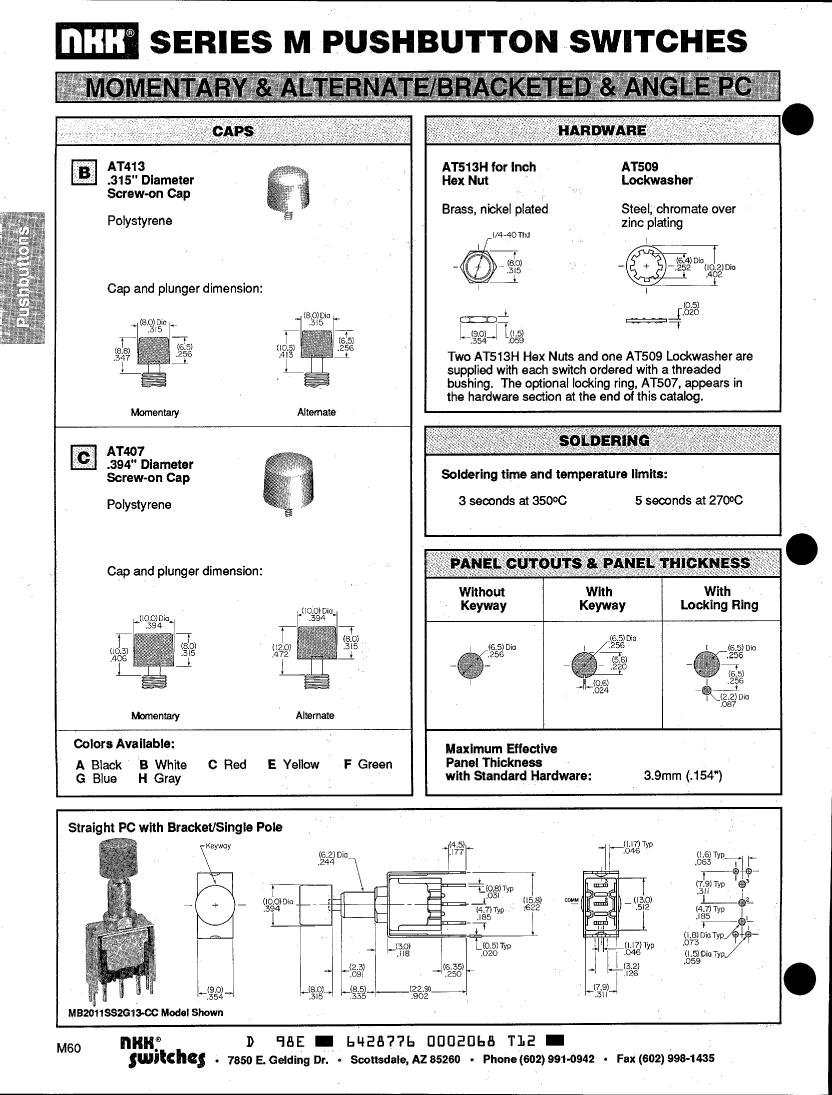

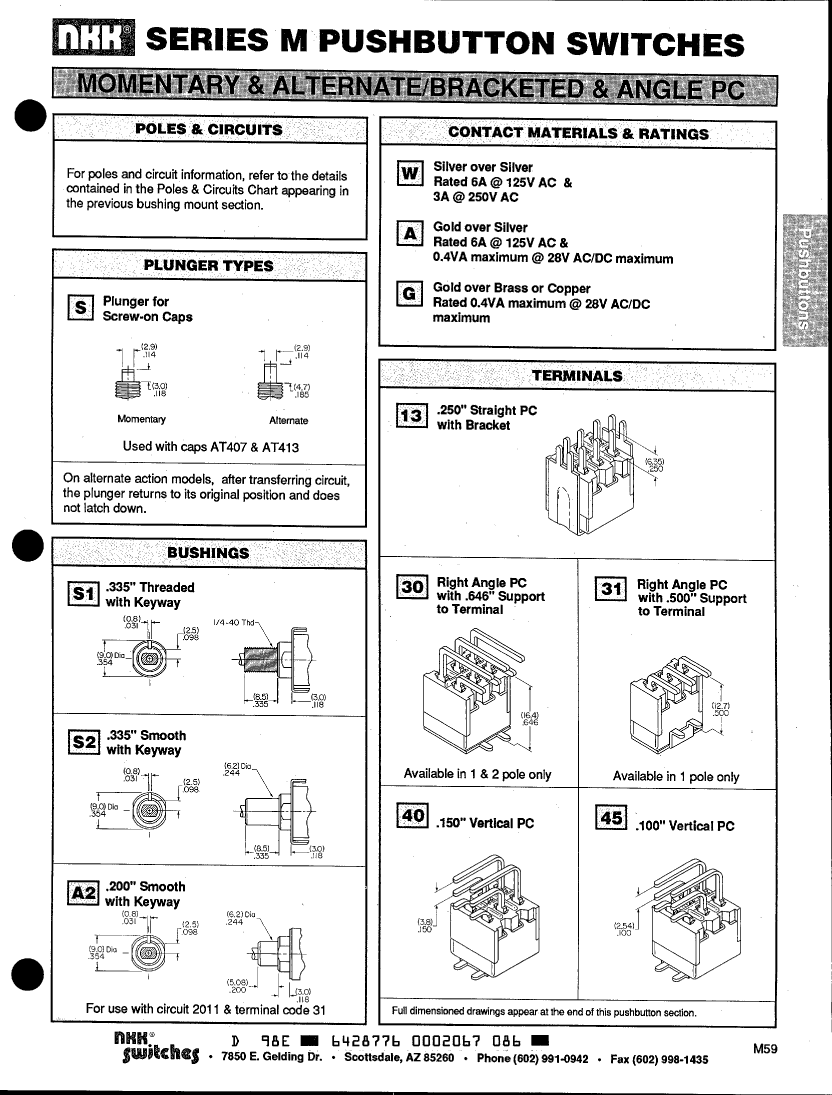

MB2085SS1A13-BA Overview

Pushbutton Switch, DPDT, On-on, Alternate, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166880709
Reach Compliance Code	not_compliant
ECCN code	EAR99
YTEOL	8.1
Actuator angle
Actuator color	BLACK
Actuator length	0.413 inch
Actuator material	POLYSTYRENE
Actuator stroke	3.8862 mm
Actuator type	PUSHBUTTON
body width	12.7 mm
body height	41.91 mm
Body length or diameter	13.0048 mm
Casing diameter	0.25 inch
Nozzle length	0.335 inch
Casing type	1/4-40
center contact material	SILVER
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Contact (DC) maximum rated power R load	0.4VA@28VDC
Contact function	ON-ON
Contact resistance	0.02 mΩ
contact time	SLOW-MAKE/-BREAK
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1500VAC V
Electrical life	50000 Cycle(s)
End contact material	SILVER
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	M
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-15 °C
PCB hole count	10
Solderability	WAVE
surface mount	NO
Switch action	ALTERNATE
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Silver (Ag) barrier
Terminal length	0.25 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
